• Model NO.：QY8B. 5
• Type：Straight Arm
• Max. Lifting Load：8t
• Max. Lifting Height：57.7m
• Max. Travel Speed：80km,H
• Max. Gradeability：40%
• Rated Lifting Moment：1764kn. M
• Engine：Wd615.334
• Overall Dimensions(Lxwxh)：13750X2800X3520mm
• Power Source：Hydraulic
• Application：Construction Usage
• Transport Package：Suitable Package for Shipment
• Specification：CE, ISO Standard
• Trademark：XCG
• Origin：Jiangsu
• HS Code：8426411000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. QY8B. 5 Type Straight Arm Max. Lifting Load 8t Max. Lifting Height 57.7m Max. Travel Speed 80km/H Max. Gradeability 40% Rated Lifting Moment 1764kn. M Engine Wd615.334 Overall Dimensions(Lxwxh) 13750X2800X3520mm Power Source Hydraulic Application Construction Usage Transport Package Suitable Package for Shipment Specification CE, ISO Standard Trademark XCG Origin Jiangsu HS Code 8426411000 Production Capacity 30 Sets Per Month

Product Description

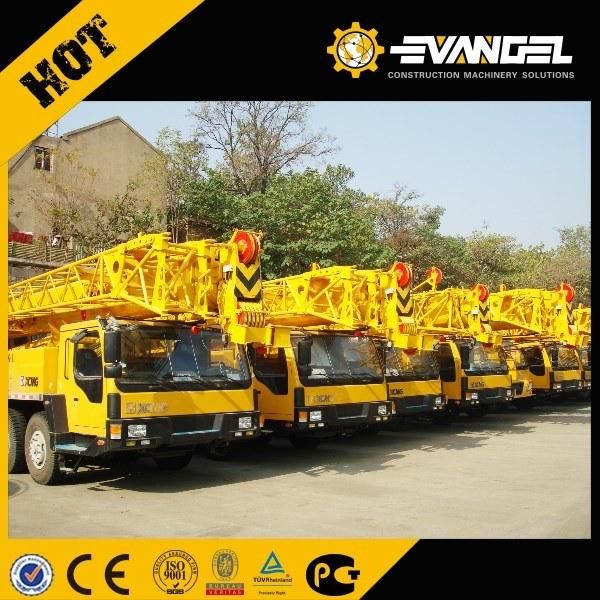

XCG mobile truck crane QY8B. 5
Rated load 8ton
Fully extended boom+jib 25.3m
Total weight in travel 10490kg
XCG mobile truck crane QY8B. 5
More excellent performance
The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
More reliable quality
Adopt the classic K series jib telescoping technique, working safer and more reliable.
Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.
The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.
The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated.
The perfect integration of the design and structure realizes the automation of welding, which is more reliable.
Easier to maintain
The optimizing design of the pipeline traces makes the layout more scientific and reasonable, greatly reducing the dismantling and installing time of the pipelines and the maintenance expense.
Completely upgrade the electrical system. Adopt anti-creep connector clips, greatly prolonging the service life of the parts.
Adopt K series rope anti-disorder technique, improving the lifting efficiency, reducing the labor intensity, and prolonging the service life of the steel rope.
The telescoping steel wire rope oriented and protective device avoids the steel wire rope out of the track and broken.
More energy-efficient and environmental friendly
Adopt double industrial automation control engine, featuring strong power and energy efficiency.
Under the economical mode, it can meet the engine power requirement of the normal lifting work. Under the high power mode, it can meet the requirement of the high challenge and high efficient lifting work.
Adopt the advanced matching technique, which makes the design more scientific. It can reduce the consumption of the mechanism, prolong the service life of the machine, and has high residual value.

Dimension	Unit	QY8B.5
Overall length	mm	9450
Overall width	mm	2400
Overall height	mm	3180
Weight
Total weight in travel	kg	10490
Front axle load	kg	2800
Rear axle load	kg	7690
Power
Engine model		YC4E140-30
Engine rated power	kW/(r/min)	105/2500
Engine rated torque	N.m/(r/min)	500/1600
Travel
Max. travel speed	km/h	75
Min. turning diameter	mm	16000
Min. ground clearance	mm	260
Approach angle	°	29
Departure angle	°	11
Max. grade ability	%	28
Fuel consumption for 100km	L	25.5
Main performance
Max. rated total lifting capacity	t	8
Min. rated working radius	m	3
Turning radius at turntable tail	m	2.254
Max. lifting torque	KN.m	245
Base boom	m	8.2
Fully extended boom	m	19
Fully extended boom + jib	m	25.3
Longitudinal outrigger span	m	3.825
Lateral outrigger span	m	4.18
Working speed
Boom luffing time	s	28
Boom full extension time	s	31
Max. swing speed	r/min	2.8
Main winch single-pump/dual-pump converging (single rope)	m/min	53/110
