Boom Section 5 Hydraulic 30 Ton Truck Crane (QY30K5-I)

Evangel Industrial (Shanghai) Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001, ISO9001: 2000
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t
  • Shaft Number：3
  • Crane Jib：Five-Arm

Base Info

  • Model NO.：QY30K5-I
  • Type：Small Crane
  • Color：Yellow
  • Sling Type：Cable
  • Power Source：Hydraulic
  • Moving Type：Wheel
  • Transport Package：Nude, 3set,Two 40feet Container
  • Specification：CE, ISO
  • Trademark：EVANGEL
  • Origin：China
  • HS Code：8426990000
  • Production Capacity：5000 Units Per Year

Description

SpecificationsQY30K5-IDimensionsOverall length12570mmOverall width2500mmOverall height3390mmWheelbase5025+1350mmWheel spacing2074+1834+1834mmWeightWeight in travel state32400kgFront axle load7000kgRear axle load25400kgPowerEngine rated output
(SteyrWD615.329)213kw/1900rpmEngine rated torque
(SteyrWD615.329)1160Nm/1400rpmEngine rated output (DongFengSC8DK280Q4)206kw/2200rpmEngine rated torque
(Dong FengSC8DK280Q4)1112Nm/1400rpmTravelMax travel speed80km/hMin turning diameter22mMin ground clearance291mmApproach angle19°Departure angle13°Max grade ability0.4Fuel consumption per 100km40LAcceleration noise88dB(A)Lifting performanceMax total rated lifting load30tMin rated working radius3000mmTurning radius counterweight3065mmOutrigger longitudinal span5.85mOutrigger lateral span6mMax load moment1025Kn/mMax load moment extended boom630Kn/mLifting heightBase boom10.7mFully extended boom40.4mFully extended boom + jib47.7mBoom lengthBase boom10.6mFully extended boom40.4mFully extended boom + jib48.7mWorking speedBoom elevation time to max68sBoom telescoping timeExtending boom fully150sRetracting boom fully140sOutrigger telescoping timeOutrigger beam extend/retract35s/30sOutrigger jack extend/retract40s/35sMain winchEmpty hook75m/minFull load120m/minAux winchEmpty hook75m/minFull load120m/min

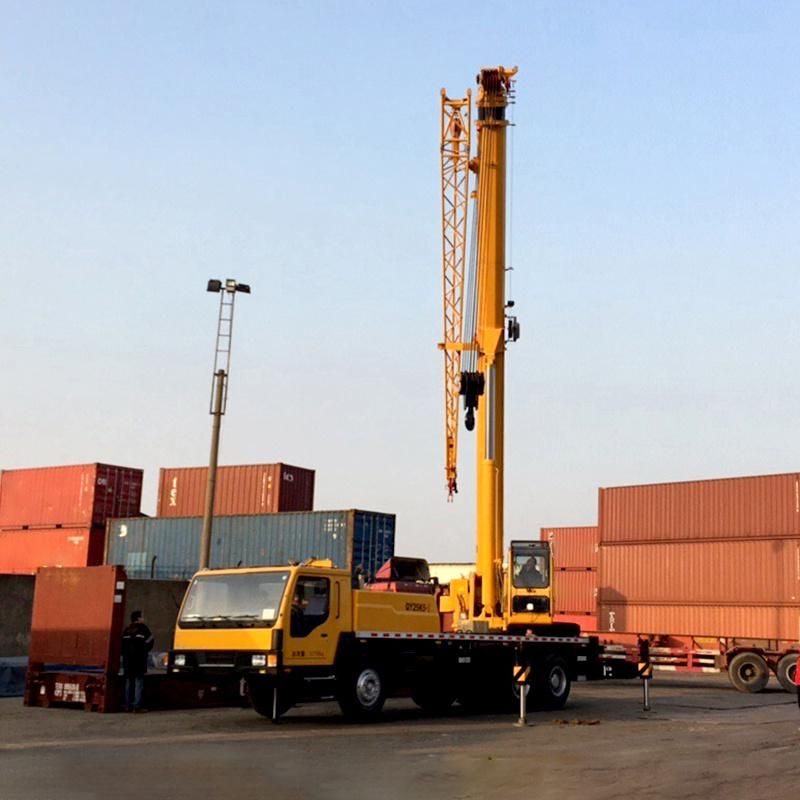

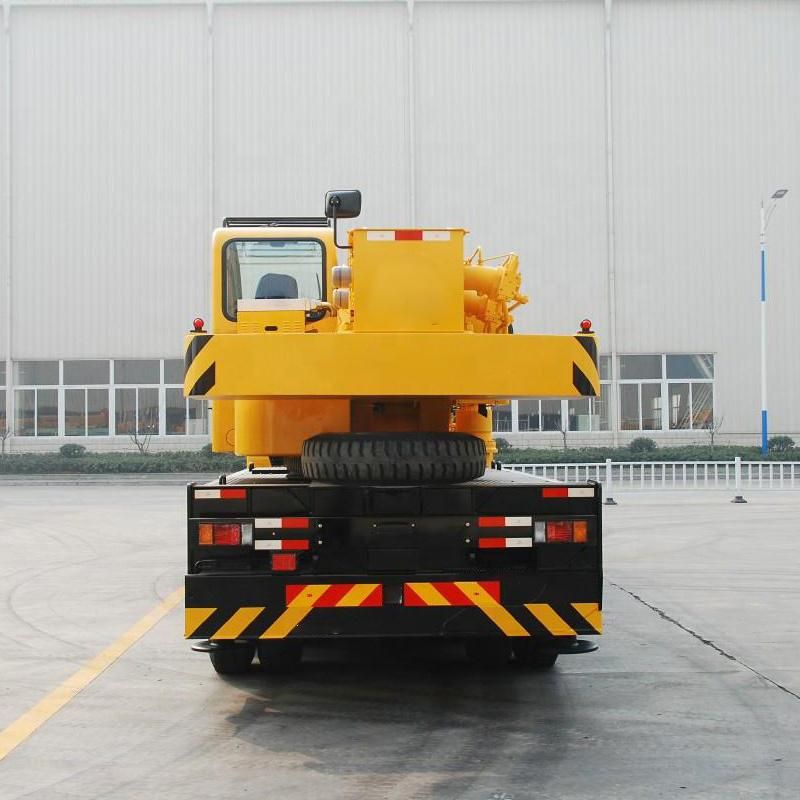

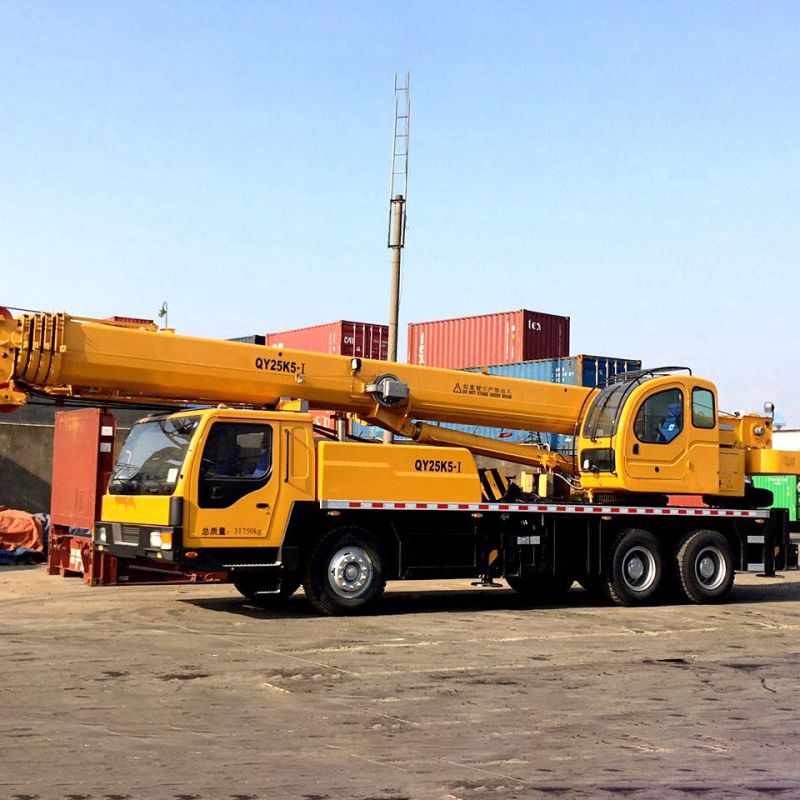

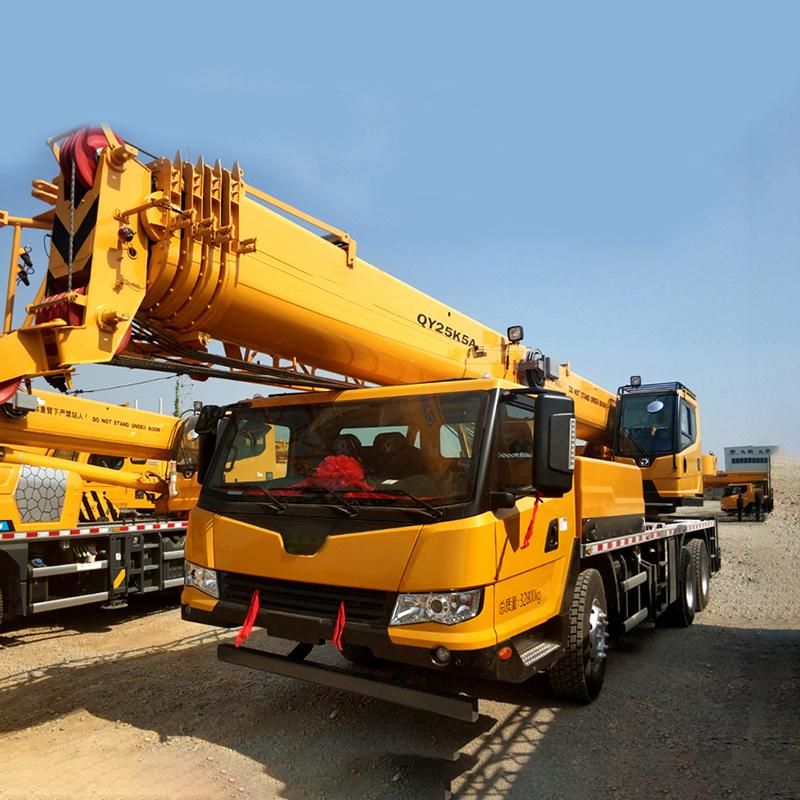

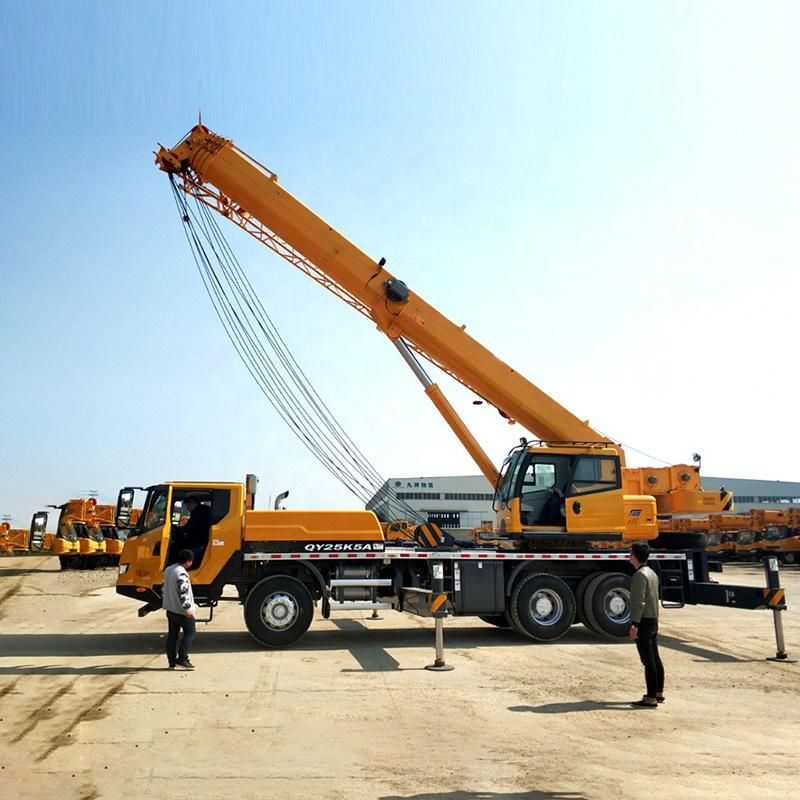

Pictures
Boom Section 5 Hydraulic 30 Ton Truck Crane (QY30K5-I)Boom Section 5 Hydraulic 30 Ton Truck Crane (QY30K5-I)Boom Section 5 Hydraulic 30 Ton Truck Crane (QY30K5-I)Boom Section 5 Hydraulic 30 Ton Truck Crane (QY30K5-I)Boom Section 5 Hydraulic 30 Ton Truck Crane (QY30K5-I)

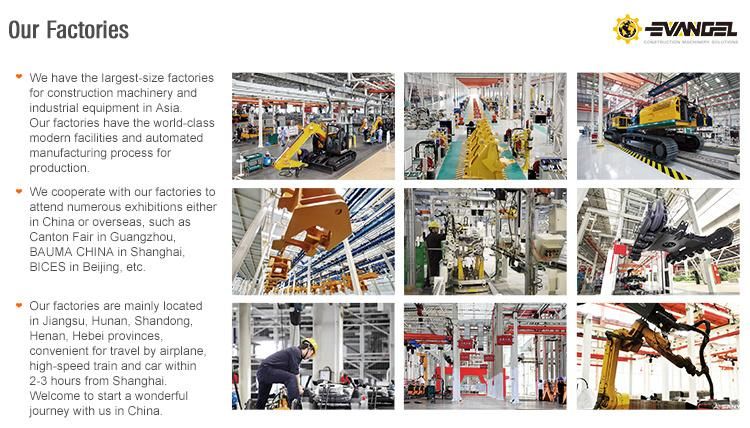

Our Factory
