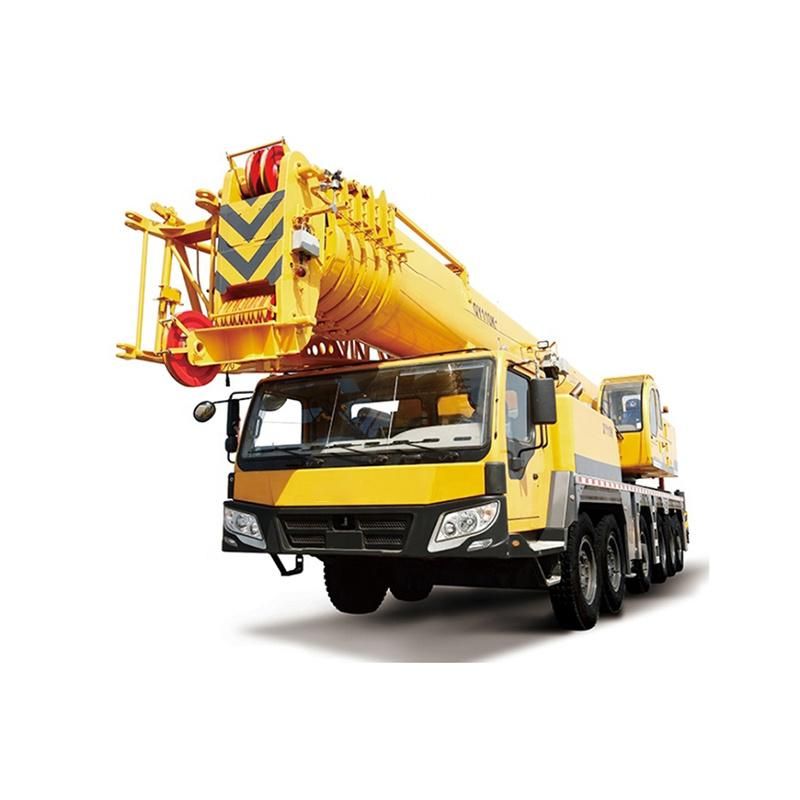

100ton Mobile Truck Crane Xct100m

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：GS, RoHS, CE, ISO9001, ISO9001: 2000
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：XCT100M
  • Shaft Number：3
  • Crane Jib：Five-Arm
  • Type：Straight Arm
  • Power Source：Diesel
  • Sling Type：Wire Rope
  • 100ton Mobile Truck Crane Xct100m：100ton Mobile Truck Crane Xct100m
  • Rated Load：100ton
  • Usage：Construction
  • Transport Package：Suitable for Ocean Shipment
  • Specification：ISO
  • Trademark：EON
  • Origin：Xuzhou, China
  • HS Code：8701200000
  • Production Capacity：150PCS,Month

Description

Main Lifting Performance

Max. total rated lifting capacity
 t
 100

Min. rated working radius
 m
 3

Turning radius at turntable tail

At counterweight
 mm
 4200

At auxiliary winch
 mm
 4590

Max. load moment

Base boom
 kN.m
 3450

Fully-extended boom
 kN.m
 1950

Fully-extended boom+jib
 kN.m
 1230

Outrigger span

Longitudinal
 m
 7.56

Lateral
 m
 7.6

Hoist height

Base boom
 m
 13.5

Fully-extended boom
 m
 50.9

Fully-extended boom +Jib
 m
 70.4

Boom length

Base boom
 m
 13.5

Fully-extended boom
 m
 51

Fully-extended boom +18.1m Jib
 m
 51+18.1

Fully-extended boom +18.1m Jib+one 4m section
 m
 51+18.1+4

Jib offset angle
 °
 0, 15, 30
 Working
Speed

Elevating time

Boom raising
 s
 75

Telescoping time

Fully extended / retracted
 s
 160

Max. swing speed
 r/min
 2

Outrigger extending and retracting time

Outrigger

beam

Extending

Simultaneously
 s
 25

Retracting

Simultaneously
 s
 15

Outrigger

jack

Extending

Simultaneously
 s
 45

Retracting

Simultaneously
 s
 25

Hoist speed (single line, 4th layer)

Main winch

No load
 m/min
 105

Auxiliary winch

No load
 m/min
 104
 Noise

Exterior noise level
 dB (A)
 ≤118

Noise level at seated position
 dB (A)
 ≤90
