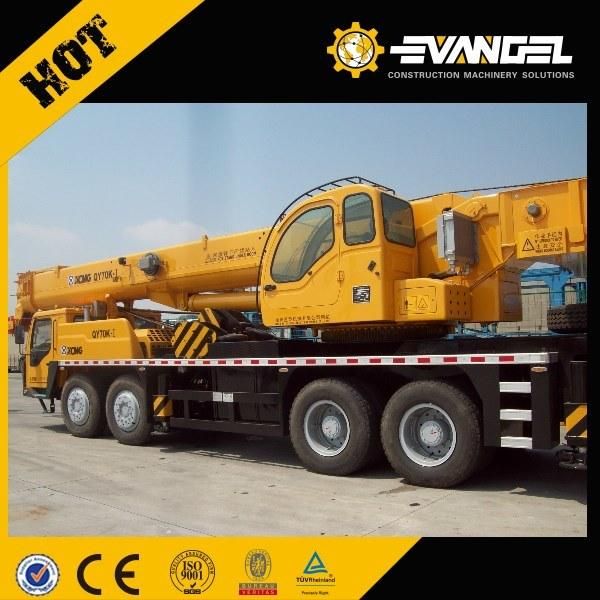

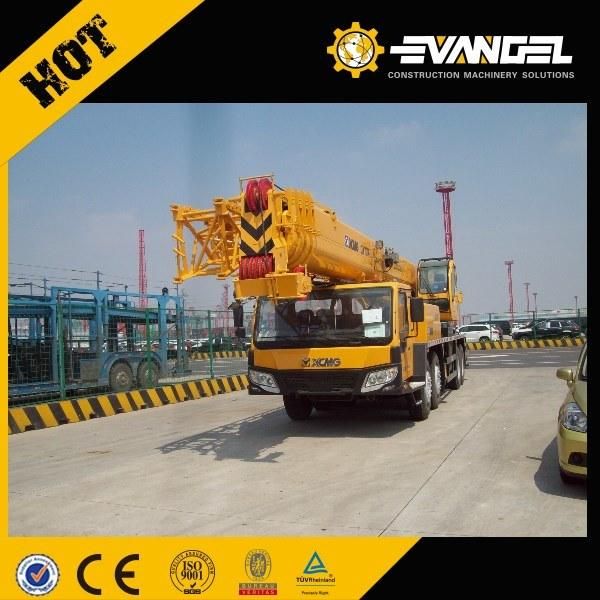

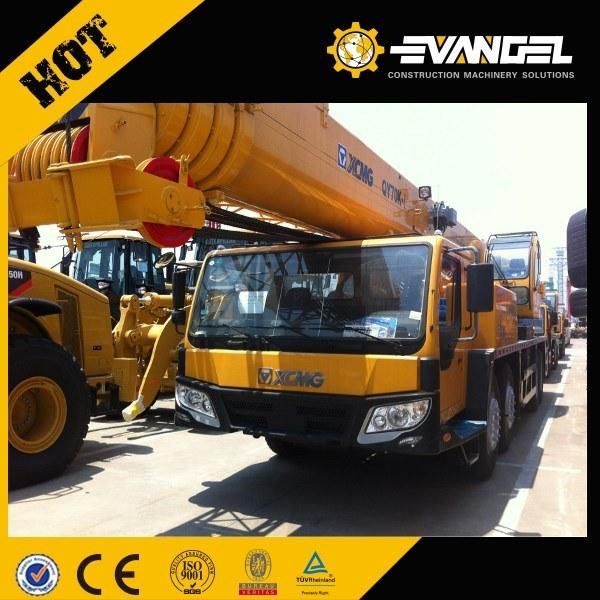

70 Ton Mobile Truck Crane (QY70K-I)
Evangel Industrial (Shanghai) Co., Ltd.- Certification：GS, RoHS, CE, ISO9001, ISO9001: 2000
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Five-Arm
Base Info
- Model NO.：QY70K-I
- Type：Straight Arm
- Color：Yellow
- Application：Construction Usage, Workshop Usage
- Power Source：Hydraulic
- Moving Type：Wheel
- Transport Package：Suitable for Ocean Shipment
- Specification：CE, ISO
- Trademark：XCMG
- Origin：Xuzhou, China
- HS Code：8705109100
- Production Capacity：50 Sets,Month
Description
| Dimension | Unit | QY70K-I |
| Overall length | mm | 13930 |
| Overall width | mm | 2800 |
| Overall height | mm | 3575 |
| Weight | ||
| Total weight in travel | kg | 43000(without 1t vice counterweight) |
| Front axle load | kg | 17000 |
| Rear axle load | kg | 26000 |
| Power | ||
| Engine model | WD615.338(domestic III) | |
| Engine rated power | kW/(r/min) | 276/2200 |
| Engine rated torque | N.m/(r/min) | 1500/1400 |
| Travel | ||
| Max. travel speed | km/h | 80 |
| Min. turning diameter | m | 24 |
| Min. ground clearance | mm | 327 |
| Approach angle | ° | 19 |
| Departure angle | ° | 13 |
| Max. grade ability | % | 40 |
| Fuel consumption for 100km | L | 45 |
| Main performance | ||
| Max. rated total lifting capacity | t | 70 |
| Min. rated working radius | m | 3000 |
| Turning radius at turntable tail | m | 3.55 |
| Max. lifting torque | kN.m | 2303 |
| Base boom | m | 11.6 |
| Fully extended boom | m | 44.5 |
| Fully extended boom+ jib | m | 59.5 |
| Longitudinal outrigger span | m | 6.1 |
| Lateral outrigger span | m | 7.3 |
| Working speed | ||
| Boom luffing time | s | 60 |
| Boom full extension time | s | ≤150 |
| Max. swing speed | r/min | ≥2.0 |
| Max. speed of main winch (single rope) (no load) | m/min | ≥130 |
| Max. speed of aux. winch (single rope) (no load) | m/min | ≥108 |
