• Model NO.：QY16V431R
• Type：Straight Arm
• Boom Extension Time：55s
• Swing Speed：0~2r,Min
• Jib Length：7.5m
• Max. Gradeability：35%
• Swing Range：360;Continuously
• Rated Power：710kn.M
• Transport Package：Roro,Container,Nude
• Specification：12050*2500*3400mm
• Trademark：Zoomlion
• Origin：Hunan, China
• Production Capacity：1000pieces,Month

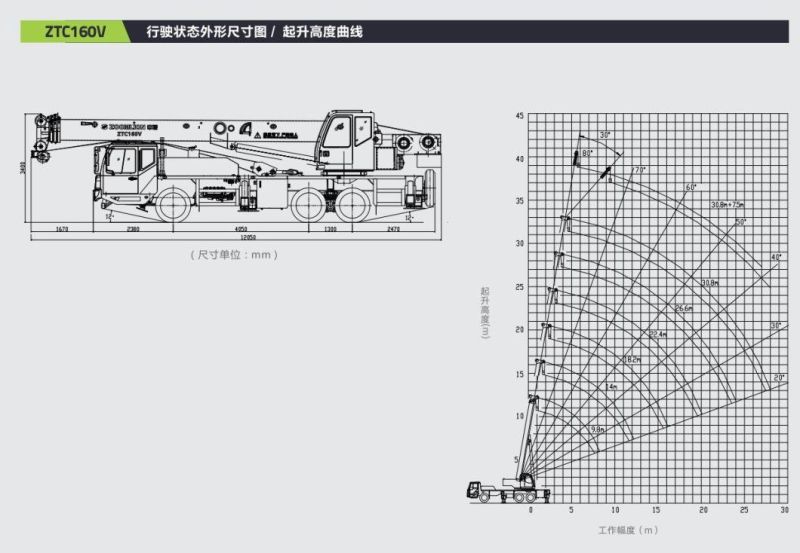

TypeSer. No.ItemUnitValueWorking performance1Max. rated lifting weight × working radiuskg.m16000×3.02Max. lifting torque of basic boomkN.m7103Max.lifting torque of longest main boomkN.m4084Max. lifting height of longest main boomm31.085Max. lifting height of jibm38.5Dimensions6Outline dimensions (L×W×H)mm12050×2500×34007Distance between outriggers (longitudinal × transversal)mm4950×54008Main boom length (completely retracted - completely extended)m9.8~30.89Jib lengthm7.510Main boom angle of elevation°-2~8011Swing range 360°continuouslyWorking speed12Max.speed of single rope on the drum of main winchm/min12013Boom extension times5514Boom derricking up times3815Swing speedr/min0~2Mass16Complete vehicle kerb masskg2287017Front axle loadkg620018Rear axle loadkg16800Traveling19Max. traveling speedkm/h7520Max. gradeability%3521Min. turn radiusm2022Min. ground clearancemm250
