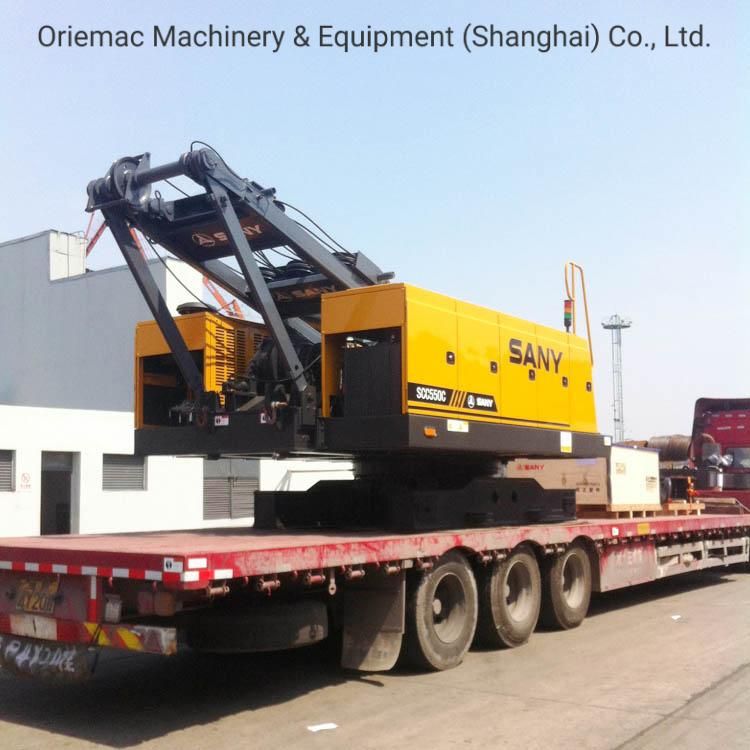

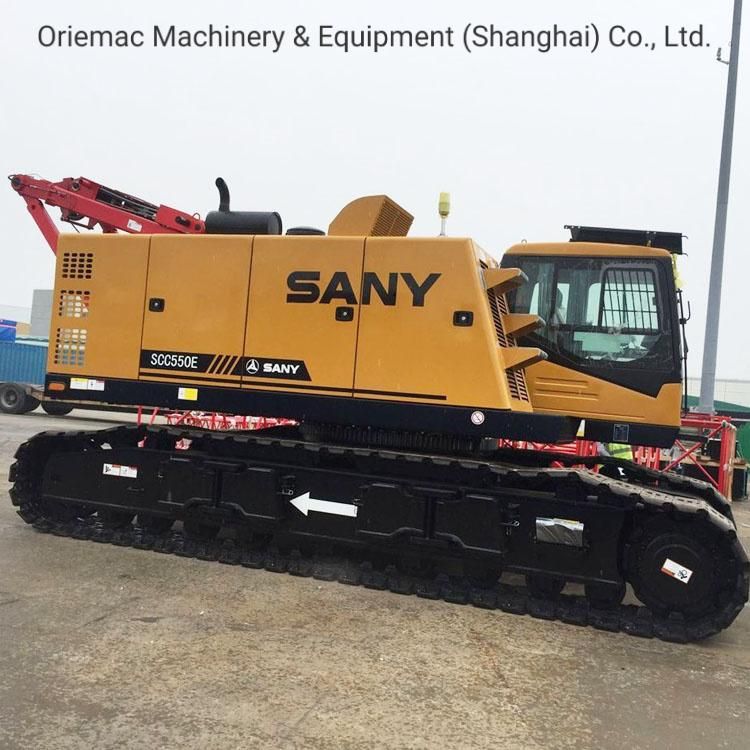

Oriemac Scc550e 55tons Crawler Crane Information About Crane

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Max. Lifting Height：52m
  • Rated Loading Capacity：50t
  • Certification：ISO9001
  • Condition：New
  • Warranty：1 Year
  • Model：Scc550e

Base Info

  • Model NO.：SCC550E
  • Rated Lifting Moment：203.5t.M
  • Boom Luffing Angle：30°~80°
  • Engine Power：132kw,2200rpm
  • Jib Length：3.24m
  • Transport Package：Nude
  • Specification：7030*3360*3304mm
  • Trademark：==
  • Origin：Hunan
  • Production Capacity：100unit,Month

Description

ModelSCC550Boom Operating ConditionMaximum rated hoisting capacity55tBoom length13~52mBoom luffing angle30~80°Maximum rated lifting torque203t.mFixed jib Operating ConditionLongest boom+longest jib43+15.25mFixed jib offest angle10°Working SpeedWire speed of main and auxiliary hoist0~110m/minWire speed of luffing hoist0~62m/minSwing speed0~3.2rpmTraveling speed0~1.39rpmEngineOutput power/Rated speed132/2200 kw/rpmTransportation ParametersMax.transport weight of single piece29.5tTransport dimension(L*W*H)7160×3360×3260Other ParametersAverage ground pressureOriemac Scc550e 55tons Crawler Crane Information About Crane
