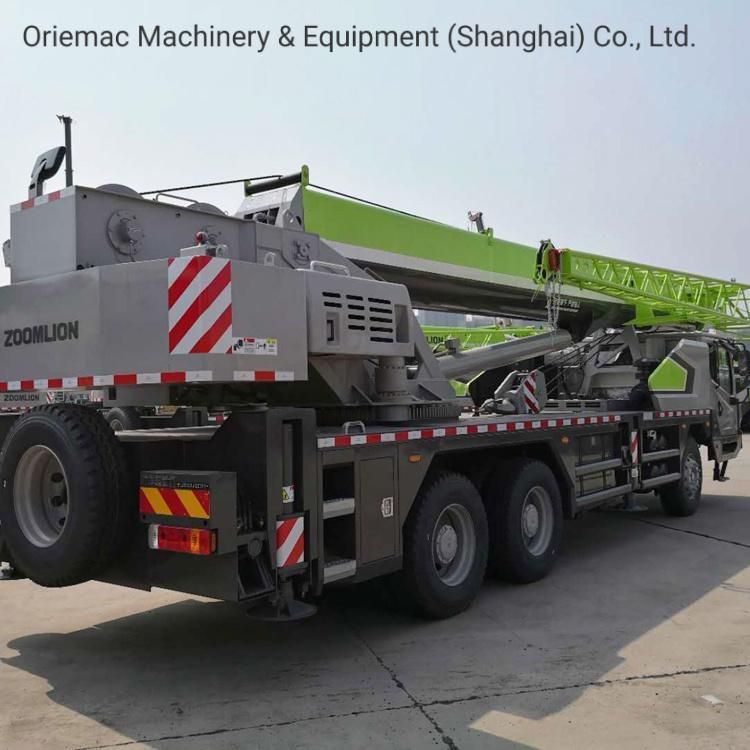

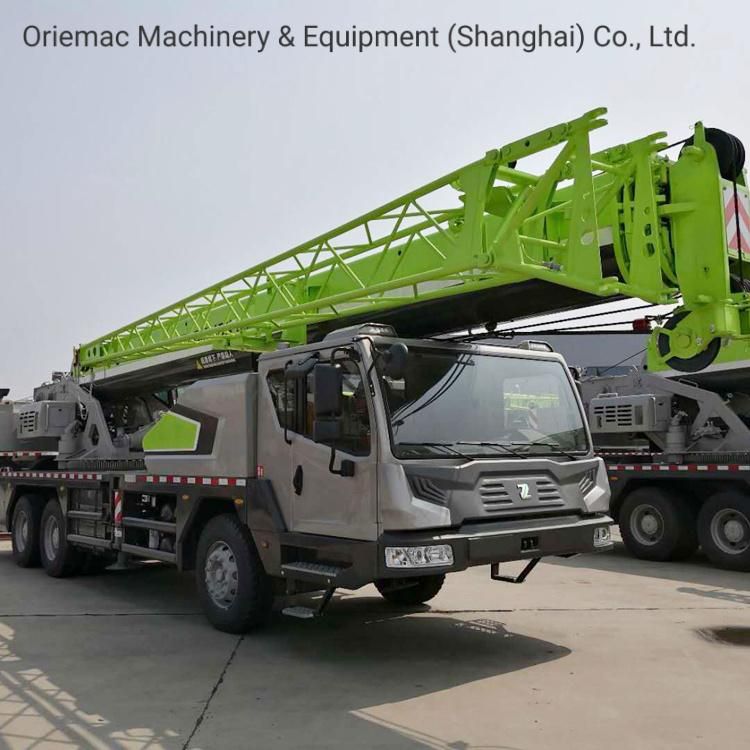

25t Widely Used Hoisting Machine Ztc250V552 Crane Paper Company
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Four-Arm
Base Info
- Model NO.：ZTC250V552
- Type：Straight Arm
- Max. Rated Total Lifting Capacity Kg：25000kg
- Rated Lifting Moment：980kn.M
- Max. Lifting Height of Basic Boom M：41.6m
- Color：Green Gray
- Max. Gradeability：37 %
- Transport Package：Nude
- Specification：13300x2750x3650mm
- Trademark：zoomlion
- Origin：Hunan
- Production Capacity：100unit,Month
Description
Item
Value
Remarks
Working performance
Max. rated lifting capacitykg
25000
Max. load moment of basic boom
kN.m
980
Max. load moment of max. boom lengthkN.m
573
Max. lifting height of basic boom m
11.5
Max. lifting height of boom m
33.8
Deformation of the boom is not taken into consideration.
Max. lifting height of jib m
41.6
Working speed
Max. hoist rope speed (main winch) m/min
120
At 4th layer
Max. hoist rope speed(auxiliary winch) m/min
100
At 2nd layer
Boom derricking times
40
Boom extending times
60
Slewing speed r/min
0~2.2
Traveling specifications
Max. traveling speed km/h
78
Max. gradeability %
37
Min. turning diameter m
≤22
Min. ground clearance mm
220
Limits for exhaust pollutants and smoke
Meet with related standards
GB3847-2005
GB17691-2005
(National stage III)
Oil consumption per hundred kilometers L
45
