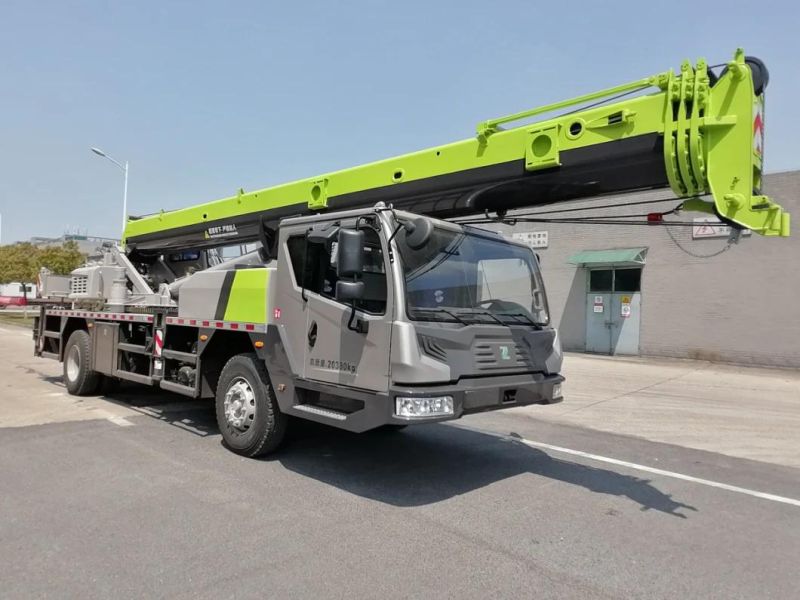

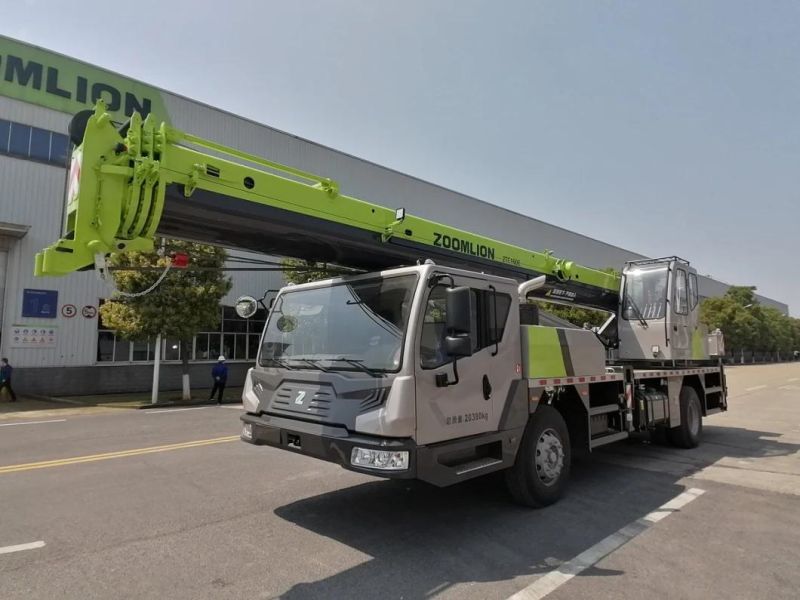

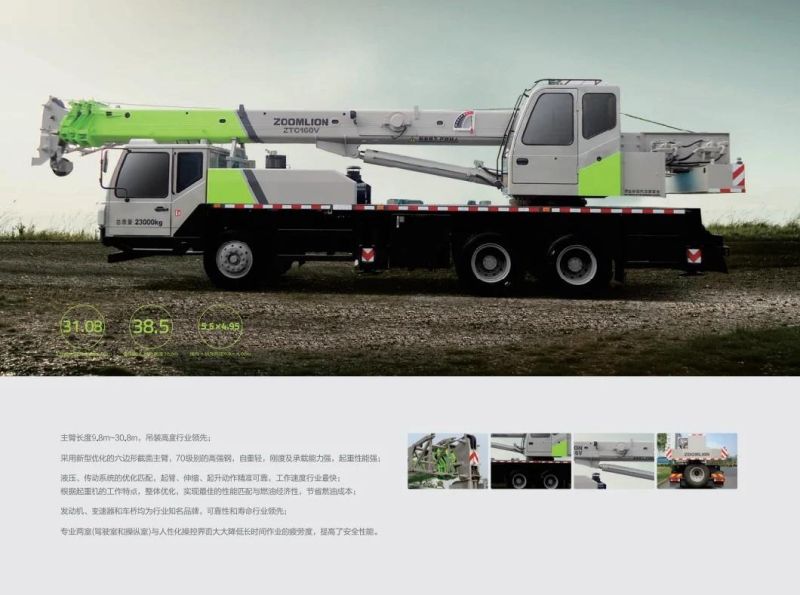

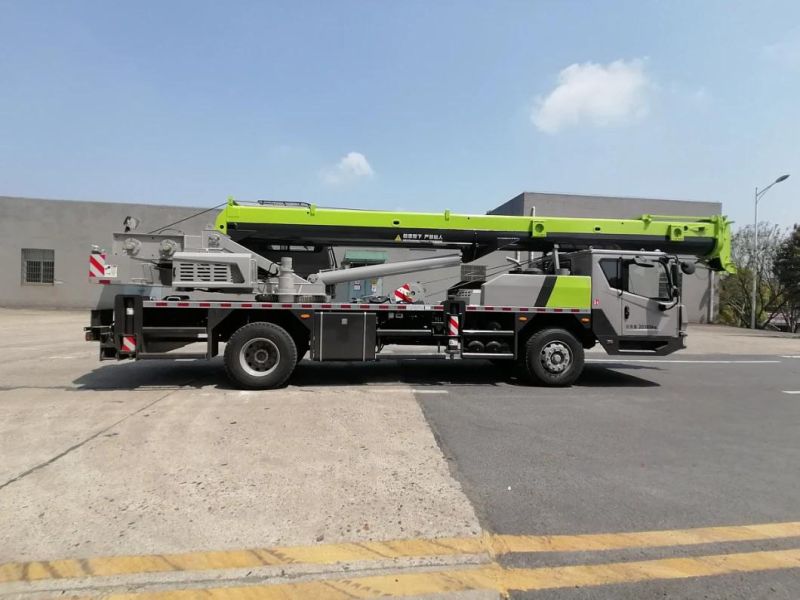

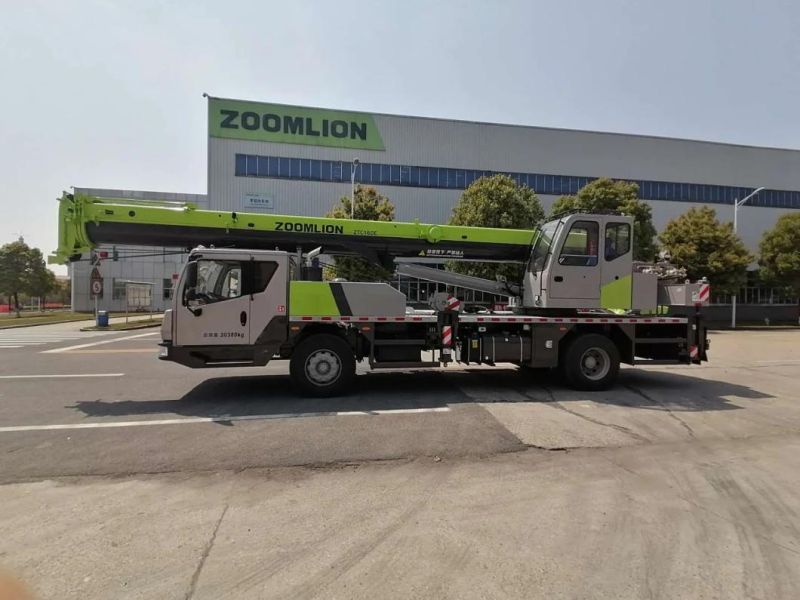

16ton Truck Crane with Euro III Engine Weichai Ztc160V

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • Certification：GS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t
  • Shaft Number：3
  • Crane Jib：Five-Arm

Base Info

  • Model NO.：ZTC160V
  • Type：Straight Arm
  • Boom Extension Time：55s
  • Swing Speed：0~2r,Min
  • Jib Length：7.5m
  • Max. Gradeability：35%
  • Swing Range：360;Continuously
  • Rated Power：710kn.M
  • Transport Package：Roro,Container,Nude
  • Specification：12050*2500*3400mm
  • Trademark：Zoomlion
  • Origin：Hunan, China
  • Production Capacity：1000pieces,Month

Description

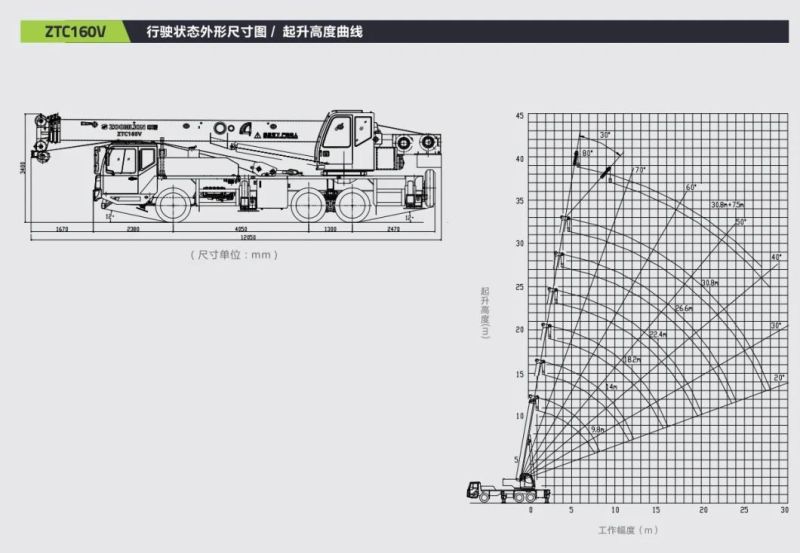

TypeSer. No.ItemUnitValueWorking performance1Max. rated lifting weight × working radiuskg.m16000×3.02Max. lifting torque of basic boomkN.m7103Max.lifting torque of longest main boomkN.m4084Max. lifting height of longest main boomm31.085Max. lifting height of jibm38.5Dimensions6Outline dimensions (L×W×H)mm12050×2500×34007Distance between outriggers (longitudinal × transversal)mm4950×54008Main boom length (completely retracted - completely extended)m9.8~30.89Jib lengthm7.510Main boom angle of elevation°-2~8011Swing range 360°continuouslyWorking speed12Max.speed of single rope on the drum of main winchm/min12013Boom extension times5514Boom derricking up times3815Swing speedr/min0~2Mass16Complete vehicle kerb masskg2287017Front axle loadkg620018Rear axle loadkg16800Traveling19Max. traveling speedkm/h7520Max. gradeability%3521Min. turn radiusm2022Min. ground clearancemm250
