Working performance | Max. rated lifting capacity | kg | 25000 | |
Max. load moment of basic boom | kN.m | 950 | |
Max. load moment of main boom(fully extended) | kN.m | 525 | |

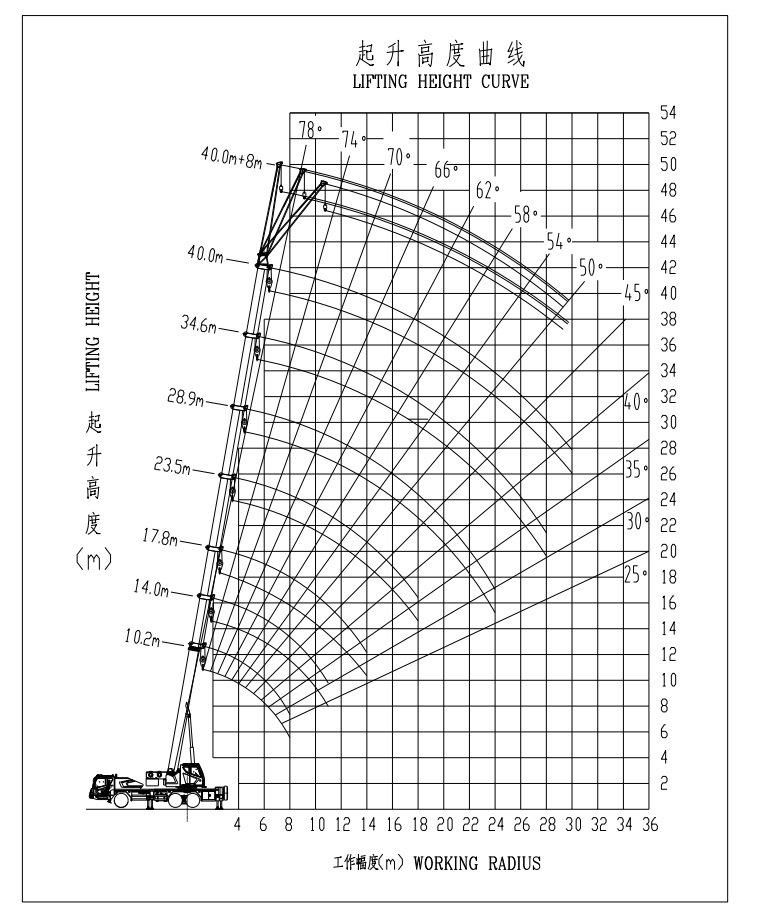

Max. lifting height of main boom | m | 38.7 | These parameters do not include deflection of main boom and jib |
Max. lifting height of jib | m | 46.58 |
Working speeds | Max. hoist rope speed(Main winch) | m/min | 135 | At the 3rd layer |
Max. hoist rope speed(Auxiliary winch) | m/min | 100 | At the 3rd layer |
Boom derricking up time | s | 40 | |
Boom derricking up time | s | 120 | |
Slewing speed | r/min | 2.6 | |
Driving parameters | Max. driving speed | km/h | 72 | |
Max. gradeability | % | 34 | |
Min. turning diameter | m | ≤20 | |
Min. ground clearance | mm | 235 | |
Limits for exhaust pollutants and smoke | | Comply with related standards | GB3847-2005 GB17691-2005 National stage III |
Oil consumption per hundred kilometers | L | 38 | |
Mass | Deadweight in driving condition | kg | 29400 | |
Complete vehicle kerb mass | kg | 29270 | |
Front axle load | kg | 6370 | |
Rear axle load | kg | 22900 | |
Dimensions | Overall dimensions(L×W×H) | mm | 12510×2500×3455 | |
Outrigger spread(L) | m | 5.15 | |
Outrigger spread(W) | m | 6.1 | |
Main boom length | m | 10.3-38.5 | |
Boom angle | ° | -2-80 | |
jib length | m | 8 | |
Offset | ° | 0,30 | |
Chassis | Model | | ZLJ5323JQZ | |
Type | | II | Code: ZLJ5323JQZV3 |
Engine | Model | kw/r/min | WP6.240 | |
Rated power | n.m/r/min | 176/2300 | |
Max. output torque | | 900/1400 - 1600 | |
