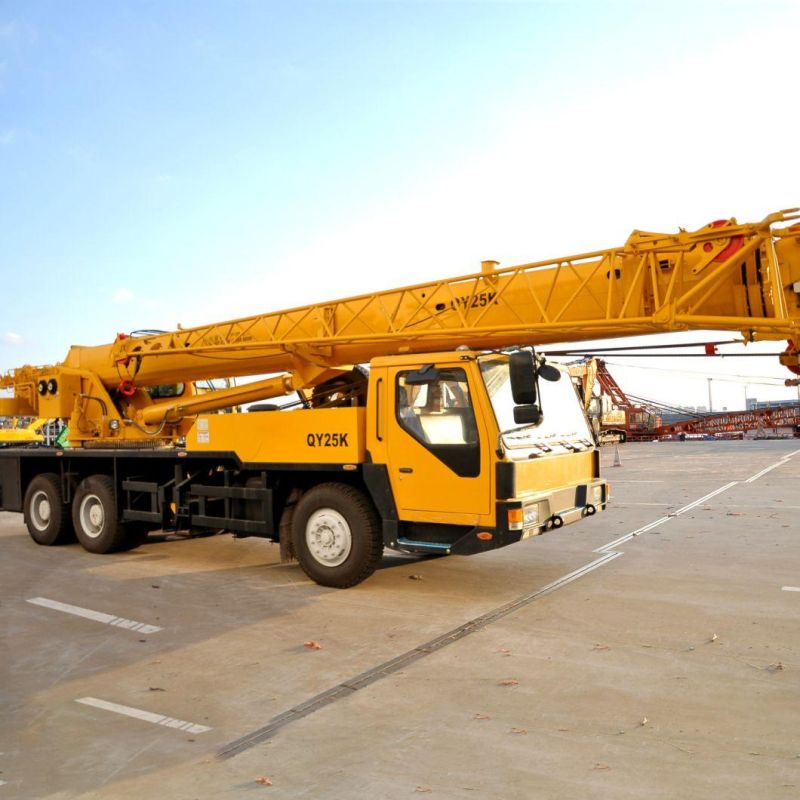

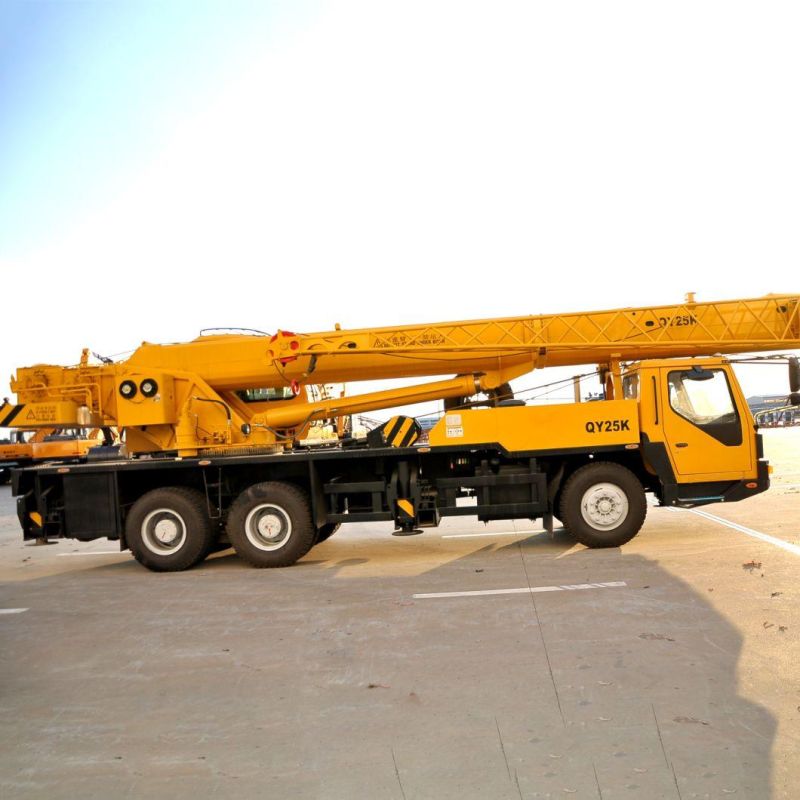

• Model NO.：Qy25K5-II
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Straight Arm
• Total Length：12650
• Min. Working Radius：3000mm
• Turning Radius at Swing Table Tail：3.065
• Rear Axle Load：23200
• Transport Package：Nude Package
• Specification：20-150 Ton Truck Crane
• Origin：China
• Production Capacity：1000pieces,Year

Item    UnitDimensionsTotal length12650mmTotal width2500mmTotal height3380mmWeightOperating Weight29400KgFront axle load6200KgRear axle load23200KgPowerEngine modelSC8DK280Q3/WD615.329  Engine power ratings206/2200 312/2200Kw(r/min)Engine torque ratings1112/1400 1160/1400N. M(r/min)TravelMax. Travel diameter75Km/hMin. Turning diameter21.5MMin. Ground clearance275mmApproach angle16. Departure angle13. Max. Grade ability30%Fuel consumption of 100km37LDriving ParametersMax. Total lifting capacity25TMin. Working radius3000mmTurning radius at swing table tail3.065MMax. Lifting torque1010Kn. MBasic boom lifting length10.7MLongest boom lifting length with secondary arm42.15MLongest boom lifting length34.19MOutrigger longitudinal distance span5.14MOutrigger lateral distance span6MWorking speedElevation duration for secondary boom75SElevation duration for fully extended boom100SMax. Rotation speed≥2.5R/minMax. Speed for main winch≥120M/minMax. Speed for auxiliary winch≥120M/min
