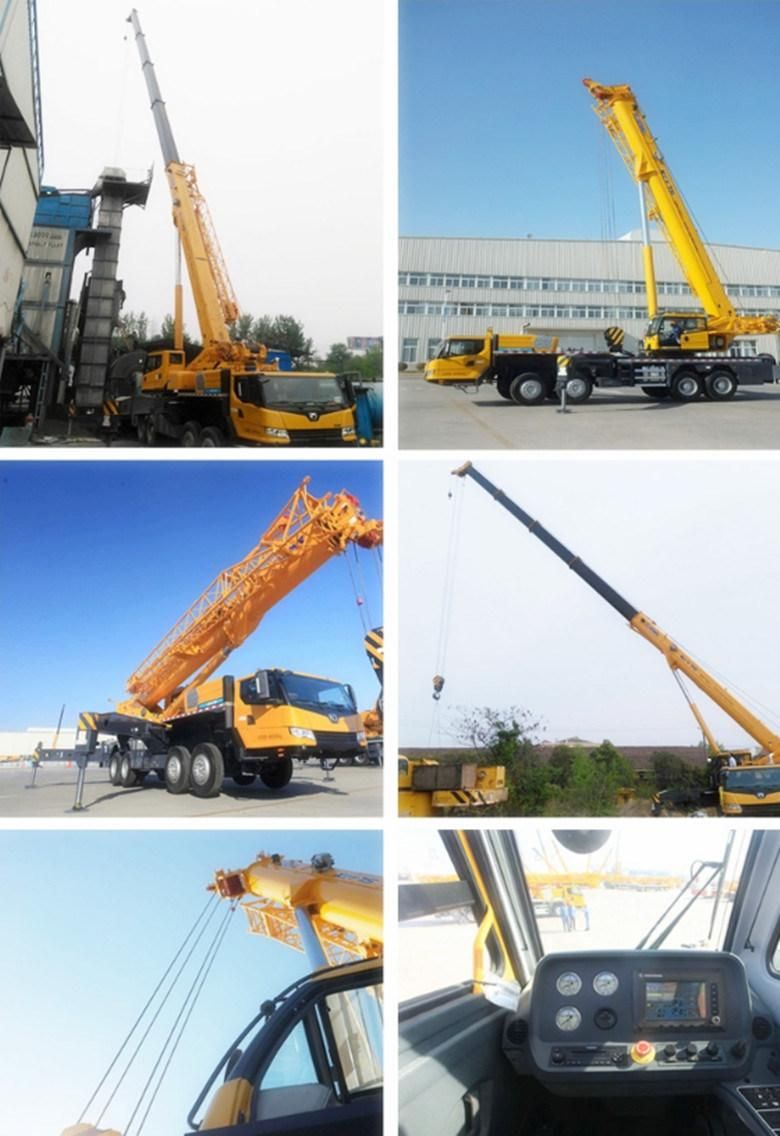

Xct90 90 Ton Heavy Duty Hydraulic Machinery Truck Crane for Construction

Shanghai Super-Above Industry Holdings Co., Ltd.
  • Condition：New
  • Maximum Lifting Height：82m

Base Info

  • Model NO.：XCT90
  • Maximum Lifting Weight：90000kgs
  • Shaft Number：4
  • Crane Jib：Six-Arm
  • Type：Telescopic
  • Max Lifting Capacity：90ton
  • Rated Power：297kw
  • Total Weight：48000kg
  • Length：13985mm
  • Width：2780mm
  • Height：3990mm
  • Speed：90km,H
  • Cabin：Full Cabin
  • A/C：Yes
  • Emission：Euro III
  • Warranty：1 Year
  • Aftersales Service：Oversea Service, Free Spare Parts, etc
  • Control System：Pilot Control
  • Certificate：ISO CCC
  • Transport Package：Roro Ship , Bulk Ship
  • Specification：Mobile crane
  • Trademark：Super-above
  • Origin：Jiangsu, China
  • HS Code：8705109100
  • Production Capacity：10000units,Year

Description

CategoryItemUnitParameter



DimensionOverall lengthmm13985Overall widthmm2780Overall heightmm3990Wheel basemm2000+4000+1500Trackmm2354×2354/2291×2291Front overhangmm2525Rear overhangmm2310


WeightTotal mass in travel configurationkg48000

Axle loadAxle 1kg12000Axle 2kg12000Axle 3kg12000Axle 4kg12000

PowerChassis engine model MC11.40-50WP12.375E50Engine rated powerkW/(r/min)297/1900276/1900
Engine rated torque
N.m/(r/min)
1900/1000~1400
1800/1000~1400







TravelTravel speedMax. travel speedkm/h90Min. travel speedkm/h1.7~3
Turning diameterMin. turning diameterm20Min. turning diameter at boom tip
m
25.2Min. ground clearancemm367Approach angle°21Departure angle°15Braking distance (at 30 km/h )m≤10Max. grade ability%45Fuel consumption per 100 kmL45
