• Model NO.：XCT85
• Maximum Lifting Weight：85000kgs
• Shaft Number：4
• Crane Jib：Five-Arm
• Type：Telescopic
• Max Lifting Capacity：85ton
• Rated Power：297kw
• Total Weight：47805 Kg
• Length：14960mm
• Width：2750mm
• Height：3960mm
• Speed：80km,H
• Cabin：Full Cabin
• A/C：Yes
• Emission：Euro III
• Warranty：1 Year
• Aftersales Service：Oversea Service, Free Spare Parts, etc
• Control System：Pilot Control
• Certificate：ISO CCC
• Transport Package：Roro Ship , Bulk Ship

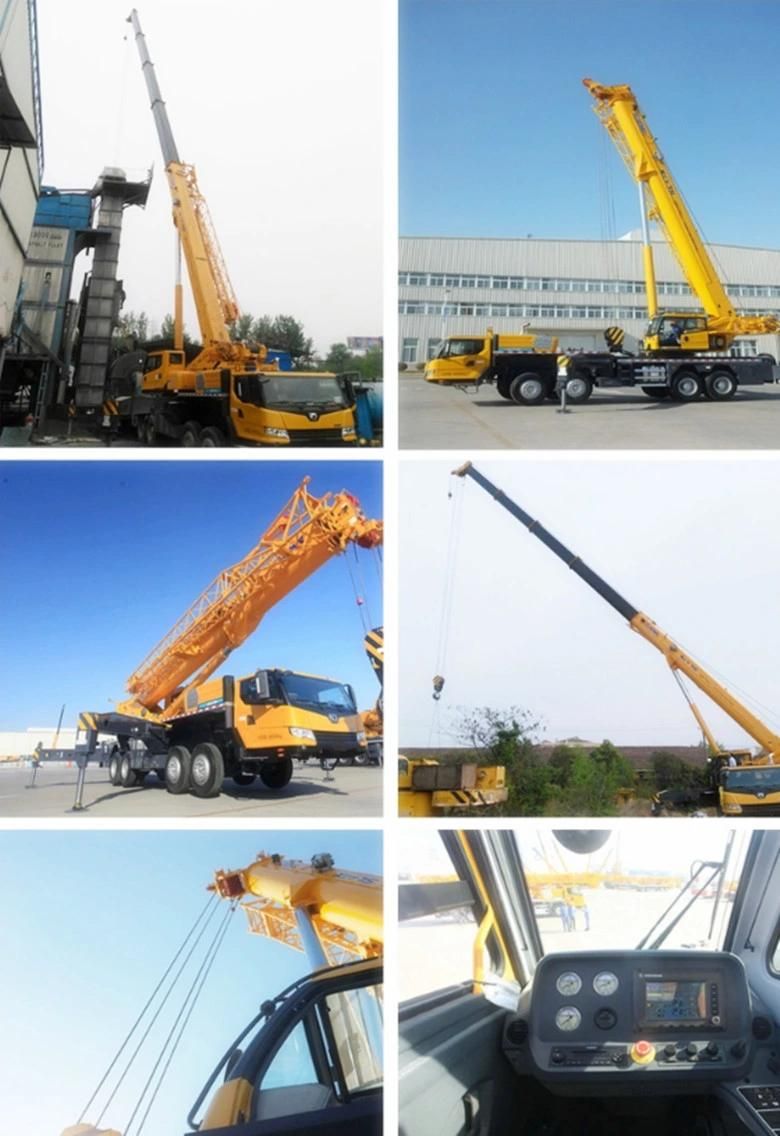

• Specification：Mobile crane
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8705109100
• Production Capacity：10000units,Year

Axle base1st ,2nd axlemm14702nd ,3rd axle40003rd ,4th axle1350Wheel Base mm 2380+2075Total vehicle mass in travel configuration kg47805Axle load   1st and 2nd Axlekg240003rd and 4th Axle26000Engine Model  WP12.375N/MC11.39-30Engine rated power kw/(r/min)276-290/1900Engine rated torque N.m/(r/min)1800-1900/1000-1400Max. travel speed km/h80Min. steady travel speed km/h3Min. turning diameter m24Min. turning diameter at boom tip m29Min. ground clearance mm371Max. grade ability %40Approach angle °17Departure angle °15.5Braking distance (at 30 km/h, full load ) m≤10Oil consumption per 100km L45
