70 Ton Truck Crane Qy70K

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • Certification：ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t
  • Shaft Number：3
  • Crane Jib：Five-Arm

Base Info

  • Model NO.：Qy70K
  • Type：Straight Arm
  • Fully Extended Boom：44.2m
  • Max. Lifting Torque：2303kn.M
  • Transport Package：Nude Package
  • Specification：13900*2800*3575mm
  • Trademark：xc. mg
  • Origin：China
  • Production Capacity：1000pieces,Year

Description

ItemUnitParameterOutline  DimensionsOverall  lengthmm13500Overall  widthmm2800Overall  heightmm3510Wheel  basemm1470+4105+1350Trackmm2304/2304/2075/2075WeightTotal  vehicle  mass  in  travel  configurationkg41000Axle  load1st  2nd  Axlekg150003rd  and  4th  Axlekg26000PowerEngine  model WD615.338Engine  rated  powerkW/(r/min)276/2200Engine  rated  torqueN. m/(r/min)1500/1400Engine  rated  rotational  speedr/min2100Travel  PerformanceMax.   travel  speedkm/h75Min.   stable  travel  speedkm/h3Min.   turning  diameterm24Min.   turning  diameter  at  boom  tipm29Min.   ground  clearancemm290Approach  angle°17.5Departure  angle°12Braking  distance  (at  30  km/h  )m≤ 10Max.   grade  ability%≥ 40Oil  consumption  per  100kmL45NoiseExterior  noise  level  during  acceleration  travelingdB  (A)≤ 84Noise  at  seated  positiondB  (A)≤ 90

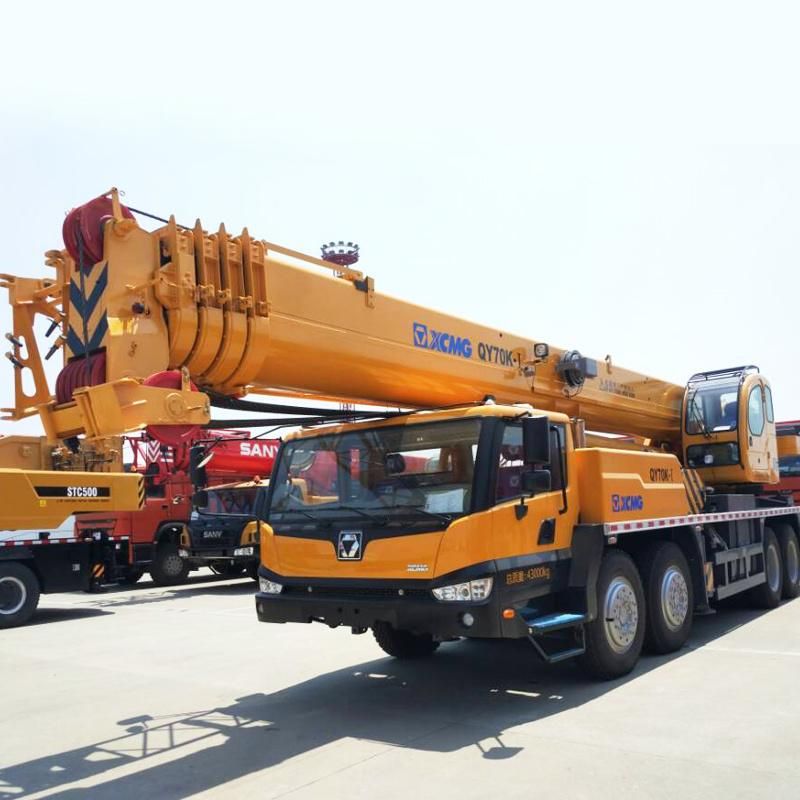

70 Ton Truck Crane Qy70K

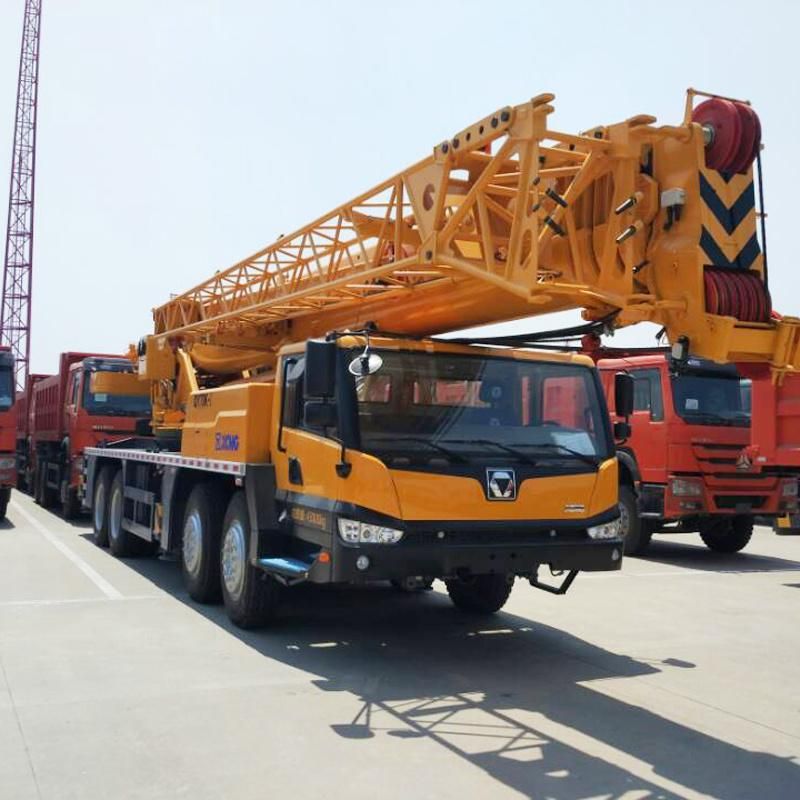

70 Ton Truck Crane Qy70K

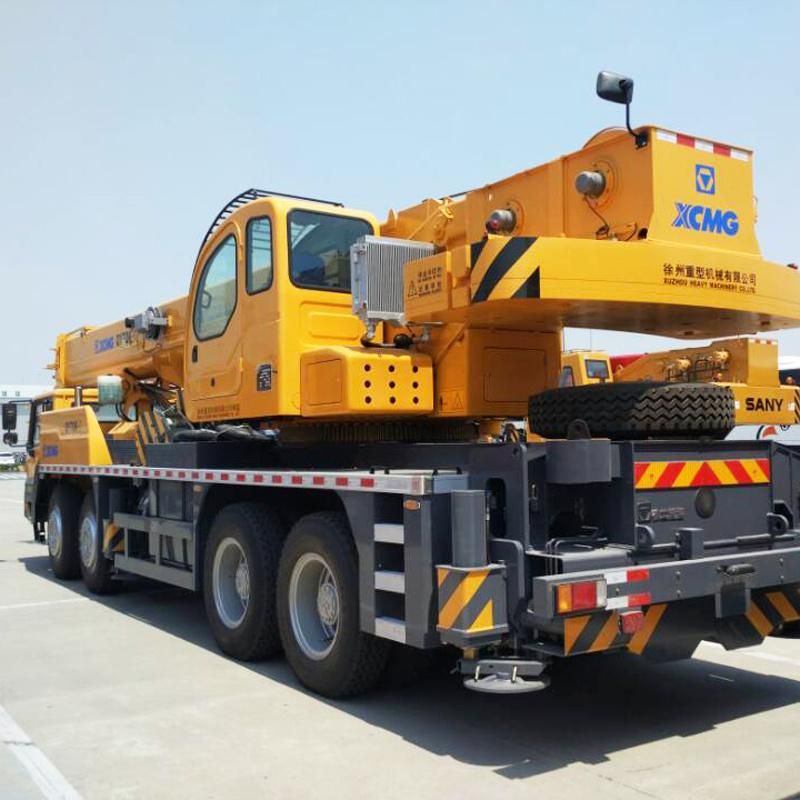

70 Ton Truck Crane Qy70K

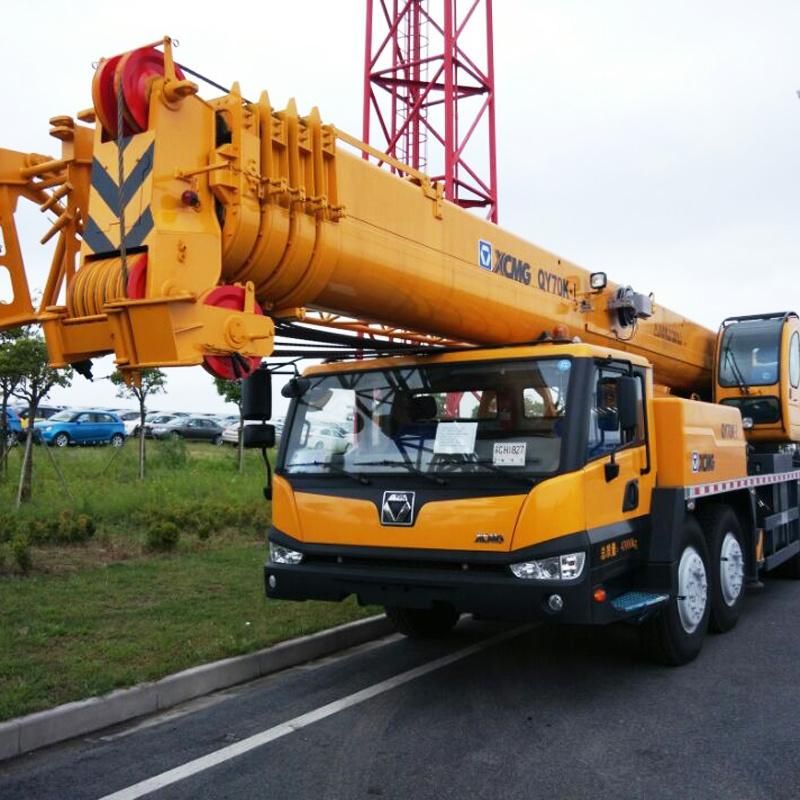

70 Ton Truck Crane Qy70K
70 Ton Truck Crane Qy70K70 Ton Truck Crane Qy70K
