6t 8 10 12 16 Ton Truck Mounted Crane with High Lifting Height

Shanghai Super-Above Industry Holdings Co., Ltd.
  • Condition：New
  • Maximum Lifting Height：5-40m

Base Info

  • Model NO.：tc
  • Maximum Lifting Weight：3-20t
  • Shaft Number：3
  • Crane Jib：Four-Arm
  • Type：Straight Arm
  • After-Sales Service：Field Installation, Commissioning and Training
  • Unique：Environmental, Energy-Saving, Large Power Engine
  • Warranty：1year
  • Transport Package：Roro
  • Specification：CE
  • Trademark：Super-above
  • Origin：Shanghai, China
  • HS Code：8705109100
  • Production Capacity：1000PCS,Year

Description

Crane Specification

Items

Sany 8-ton 4 section



Sany 10-ton 4 section



Max lifting capacity(kg)

8000

8000

10000

10000

Max lifting capacity at full extension(kg)

800

1100

1300

1500

Working radius(m)

14

11.5

14

12

Max lifting height(m)

16.1

13.5

16.1

14

Crane weight(kg)

3820

3315

3800

3765

Outrigger span(m)

2280--5600

2280-5580

2280--5600

2280--5580

Rotation angle

360 full rotation

360 full rotation

360 full rotation

360 full rotation

6t 8 10 12 16 Ton Truck Mounted Crane with High Lifting Height6t 8 10 12 16 Ton Truck Mounted Crane with High Lifting Height6t 8 10 12 16 Ton Truck Mounted Crane with High Lifting Height

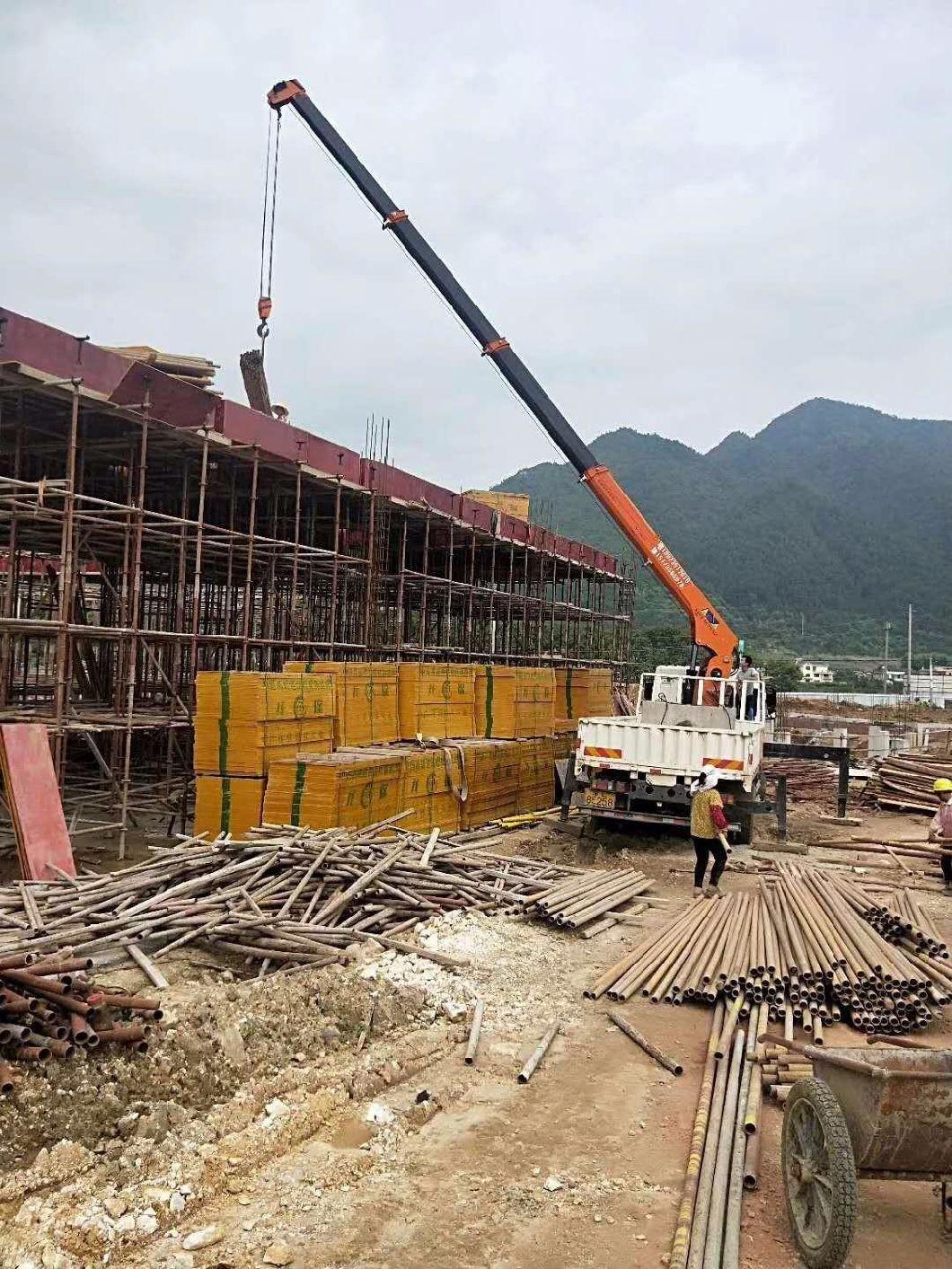

Project cases
