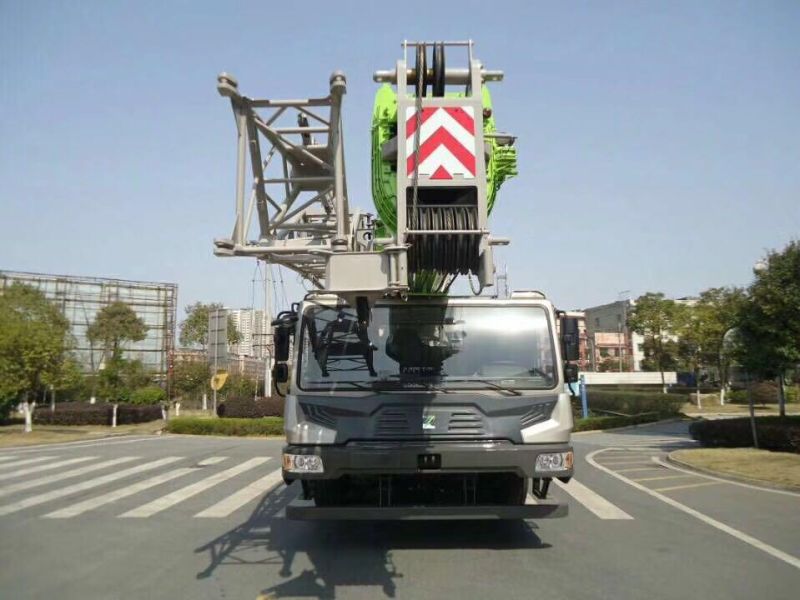

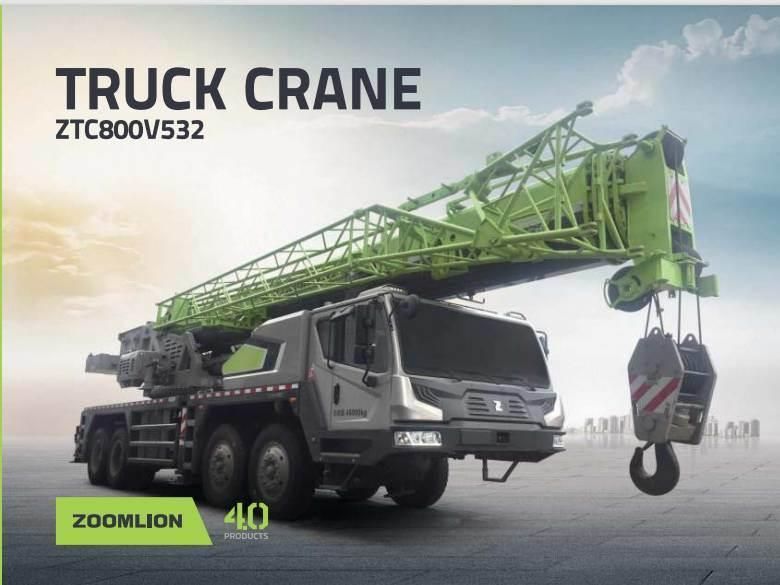

• Model NO.：ZTC800V532
• Shaft Number：5
• Crane Jib：Five-Arm
• Type：Folding
• Transport Package：Nude Package

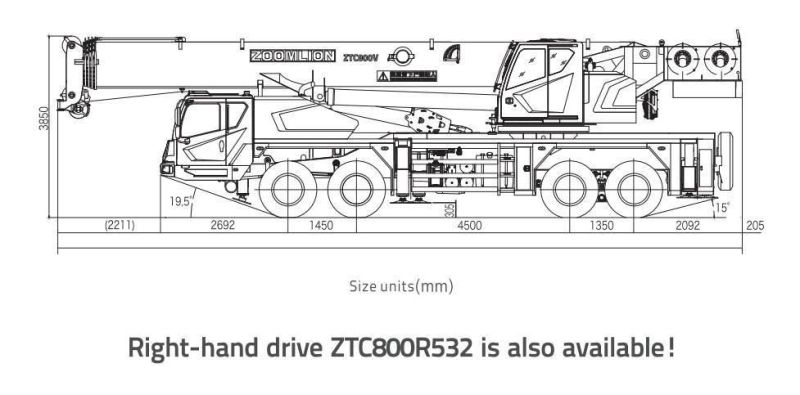

• Specification：14500*2800*3850
• Trademark：ZOOMLION
• Origin：China
• Production Capacity：15sets,Mon

ItemUnitValueRemarksWorking performanceMax. rated lifting capacitykg80000 Max. load moment of basic boomkN.m2646 Max. load moment of main boom(fully extended)kN.m1288 Max. lifting height of main boomm47.7These parameters do not include deflection of main boom and jibMax. lifting height of jibm63.8Working  speeds              Max. hoist rope speed(Main winch)m/min125At 4th layerMax. hoist rope speed(Auxiliary winch)m/min110At 2nd layerBoom demrricking up times55 Boom telescoping out times120 Slewing speedr/min1.7 Driving    parametersMax. driving  speedkm/h85 Max. gradeability%46 Min. Turning diametermMassDeadweight in driving conditionkg46000 Complete vehicle kerb masskg45805 Front axle loadkg20000 Rear axle loadkg26000 DimensionsOverall  dimensions(L×W×H)mm14500×2800×3850 Longitudinal  distance between outriggersm6.05 Transversal distance between outriggersmFully extended:7.8 Tail slewing radiusmm4200 Boom lengthm12.1 - 47.0 Boom angle°-2 - 80 Jib lengthm9.5, 16.0 Offset°0/15/30
