80 Ton Hydraulic Lift Crane Boom Crawler Crane Construction Machinery
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Max. Lifting Height:43+15.25m
- Rated Loading Capacity:75 Ton
- Certification:ISO9001, CE, RoHS, BV
- Condition:New
- Warranty:1 Year
- Travelling Speed:0-1.2km,H
Base Info
- Model NO.:QUY80
- Rated Lifting Moment:702t.M
- Span:19-76m
- Boom Length:13-52m
- Rated Power:142kw
- Length of Fixed Jib:6-15m
- Length of Main Boom:13-52m
- Grade Ability:40%
- Deadweight with Basic Boomt:48t
- Traveling Speed:0-1.7km,H
- Max. Lifting Moment:209 T.M
- Track Dimension:3540(2540)*4900*760 mm
- Engine Brand:Cum--Mins
- Overall Dimensions Without Boom:6950*3300*3030 mm
- Usage:Construction Goods Lifting
- Transport Package:Nude Package
- Specification:6950*3300*3030mm
- Trademark:Acntruck
- Origin:China
- Production Capacity:500 PCS,Month
Description
Basic Info.
Model NO. QUY80 Rated Lifting Moment 702t.M Span 19-76m Boom Length 13-52m Rated Power 142kw Length of Fixed Jib 6-15m Length of Main Boom 13-52m Grade Ability 40% Deadweight with Basic Boomt 48t Traveling Speed 0-1.7km/H Max. Lifting Moment 209 T.M Track Dimension 3540(2540)*4900*760 mm Engine Brand Cum--Mins Overall Dimensions Without Boom 6950*3300*3030 mm Usage Construction Goods Lifting Transport Package Nude Package Specification 6950*3300*3030mm Trademark Acntruck Origin China Production Capacity 500 PCS/MonthProduct Description
80 ton Hydraulic Lift Crane Boom crawler crane construction machineryMain Parameter:
Item | Unit | Parameter |
Max. lifting capacity | t | 80 |
Max.load moment | kN.m | 3375 |
Boom length | m | 13-58 |
Elevation angle | ° | 30-80 |
Main winch system | m/min | 0-120 |
Aux.winch system | m/min | 0-120 |
Elevating system | m/min | 0-57 |
Grade-ability | 30% | |
Swing speed | r/min | 0-2 |
Max. travel speed | km/h | 0-1.2 |
Mean ground pressure | MPa | 0.087 |
Engine output | KW | 200 |
Jib length | m | 9-18 |
Jib erection angle | ° | 10/30 |
Max. weight of single part in transport state | t | 28 |
Dimension of single part(main machine) in transport state(L×W×H) | m | 7.8×3.4×3.1 |

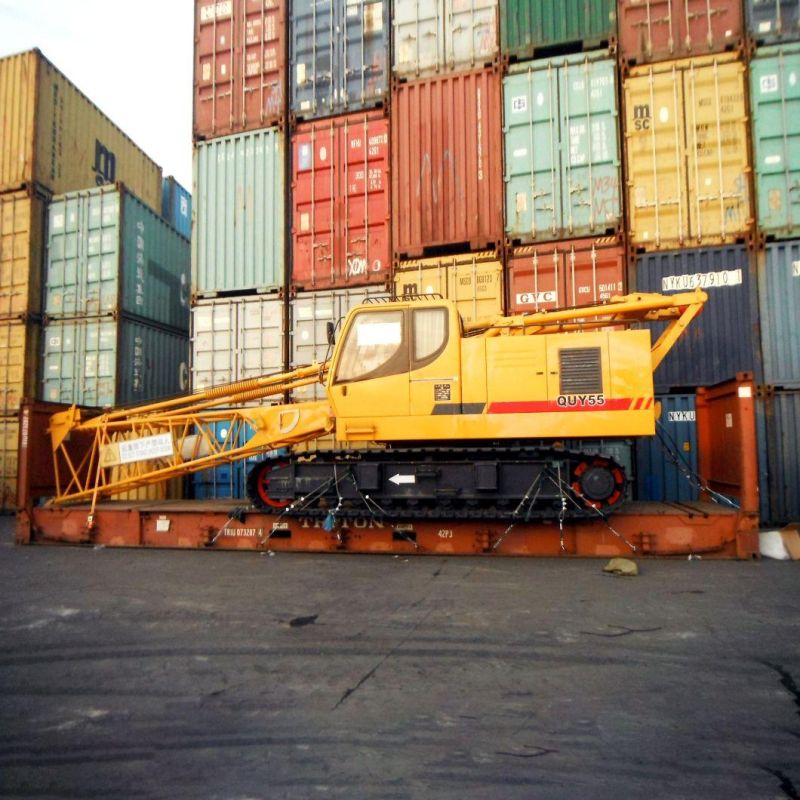

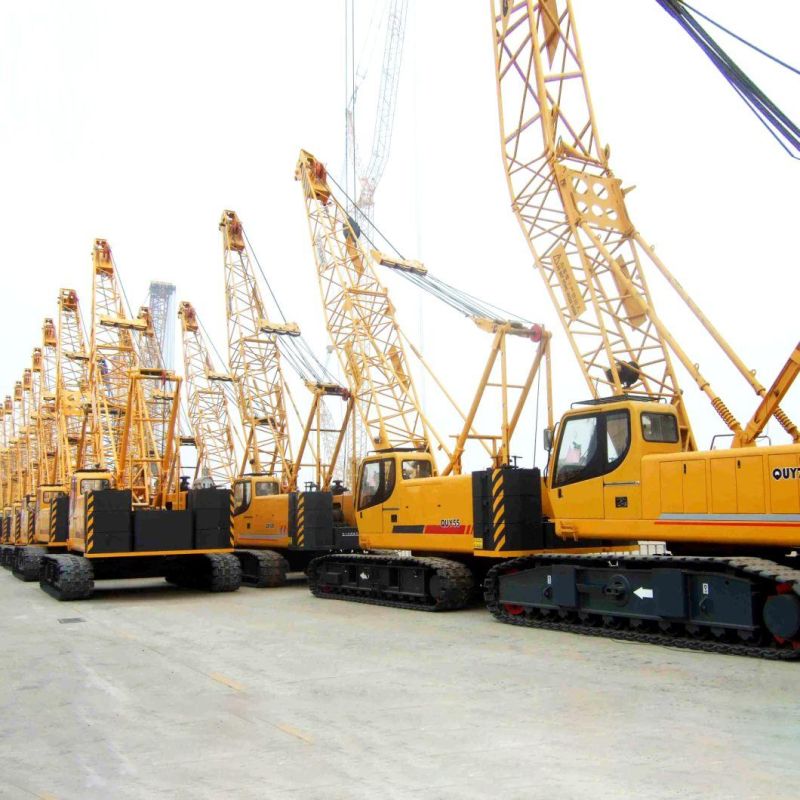

Product picture:
