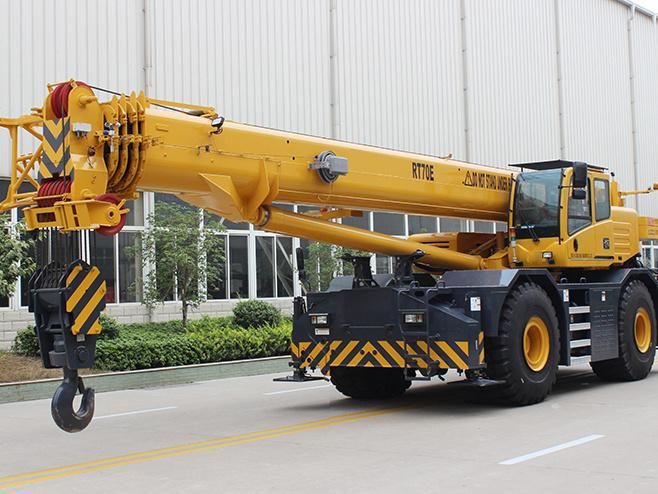

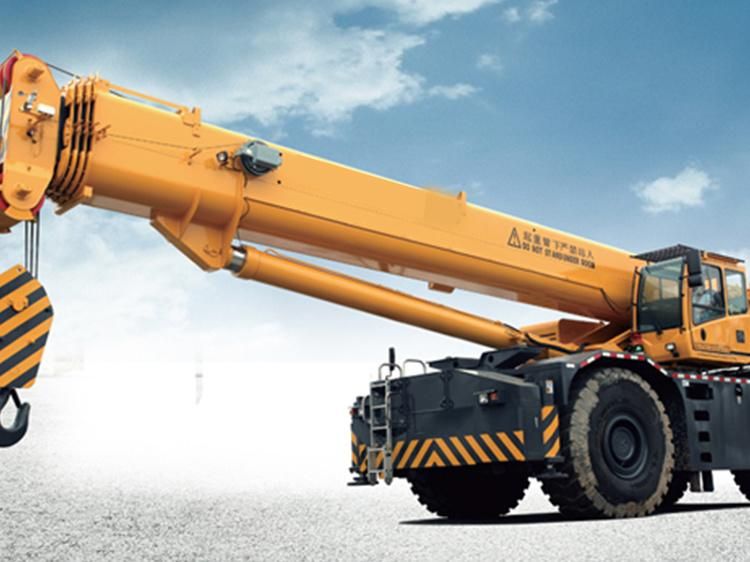

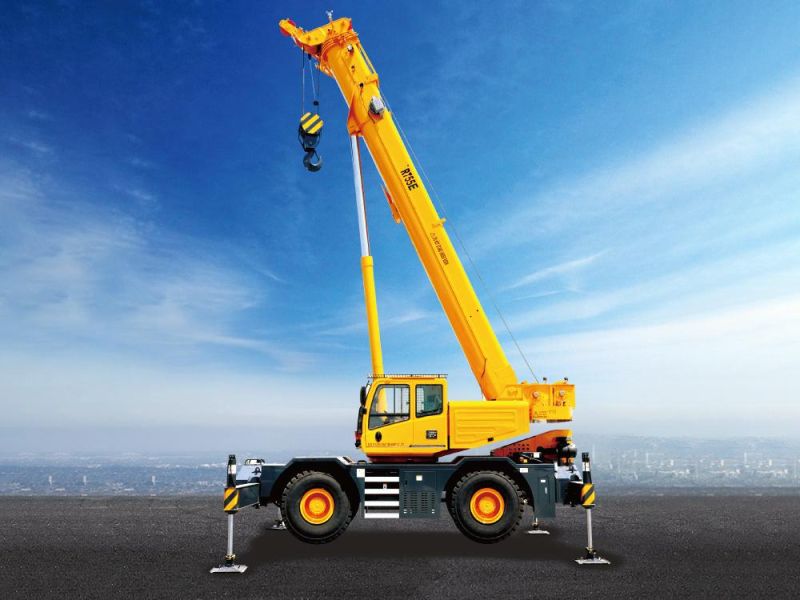

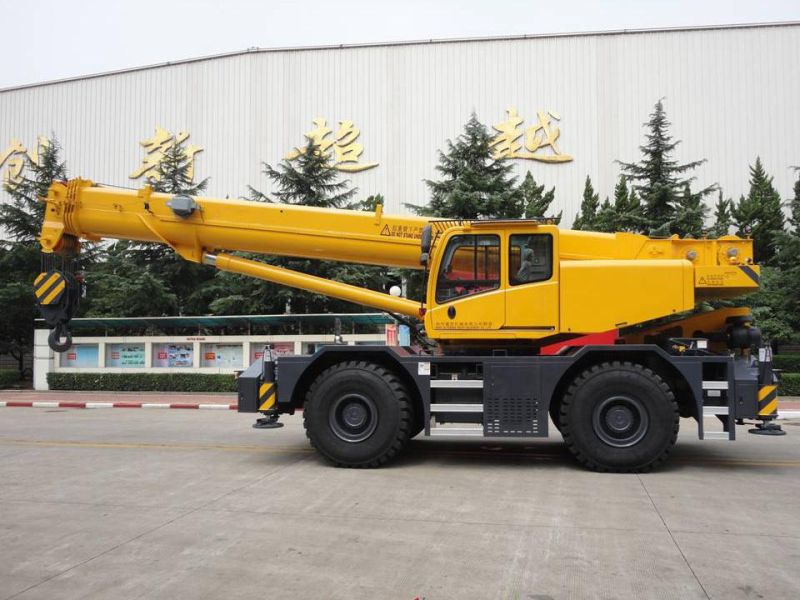

Top Brand 80 Ton Rough Terrain Crane Rt80 for Sale
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Overseas Service Center Available, Video Technical
- Warranty：1 Year
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：RT80
- Shaft Number：3
- Crane Jib：Five-Arm
- Type：Straight Arm
- Length of Entire Vehicle：3400mm
- Width of Entire Vehicle：3990mm
- Wheel Base：2554mm
- Wheel Track：14067mm
- Gross Vehicle Weight When Driving：58000kg
- Transport Package：Nude Packing
- Specification：13500*5000 (3400)*3200
- Trademark：Maxizm
- Origin：China
- HS Code：84264910
- Production Capacity：1000 Unit Per Year
Description
Project
Unit
Parameter
Measurements Parameters
(mm)
14067
Length of Entire Vehicle
(mm)
3400
Width of Entire Vehicle
(mm)
3990
Height of Entire Vehicle
(mm)
4380
Wheel Base
(mm)
2554
Wheel Track
(mm)
14067
Weight Parameters
Gross Vehicle Weight When Driving
(kg)
58000
Axle Load
(kg)
(Front Axle)30350 (Rear Axle)27650
Kinetic Paremeter
Engine Type
-
QSL
Engine Rated Power(kw/
(kw/(r/min))
209
Engine Max Torque(N.m/
(N.m/(r/min))
1424
Driving Parameters
Driving
Max Travel Speed
(km/h)
36
Min Travel Speed
(km/h)
2
Swerve
Min Turning Radius
(m)
15
Head Min. Turning Diameter
(m)
-
Max Gradeability
(%)
60
Min. Ground Clearance of Machine
(mm)
440
Approach Angle
(°)
22.5
Departure Angle
(°)
20
Braking Distance
(m)
9
Fuel Consumption per 100kms
(L)
-
Major Performance Parameters
Max. Rated Lifting Capacity
(t)
80
Min. Rated Range
(m)
3
Max. Load Moment of Basic Jib
(kN·m)
3140
Radius of Gyration of Turntable Tail
(mm)
4625
