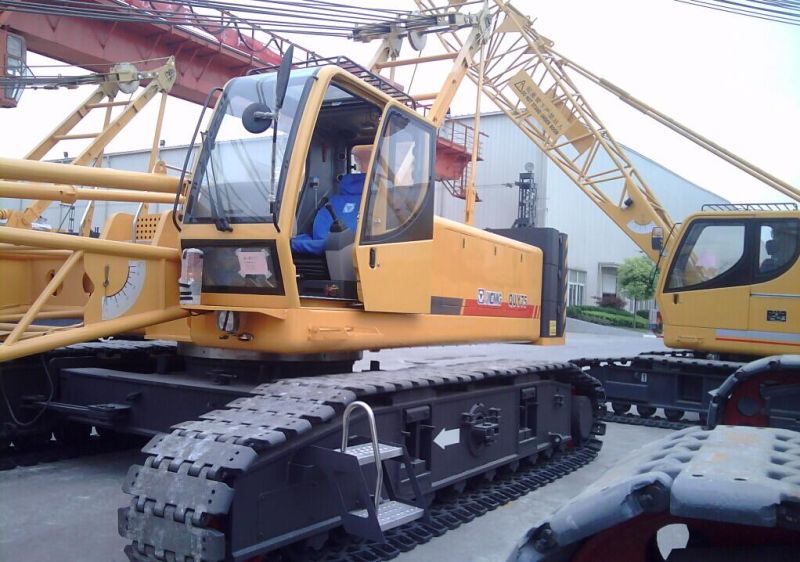

High Cost Effective 75 Ton Quy75 Crawler Crane
Acntruck Automobile Sales (Shanghai) Co., Ltd.- After-sales Service：12 Month
- Max. Lifting Height：58 M
- Rated Loading Capacity：75 Ton
- Certification：ISO9001, CE
- Condition：New
- Warranty：1 Year
Base Info
- Model NO.：QUY75
- Max. Load Moment：2744 Kn-M
- Main Boom Length：13-58 M
- Main Boom Luffing Angle：30-80
- Fixed Jib Length：9-18 M
- Winch Max. Single Line Speed( No Load,at：120 M,Min
- Boom Luffing Gear Max. Single Line Speed：57 M,Min
- Max. Swing Speed：2.4 R,Min
- Max. Travel Speed：1.2 Km,H
- Max. Grade-Ability：30 %
- Mean Ground Pressure：0.087MPa
- Engine Output Power：200 Kw
- Gross Vehicle Mass (Including Main Hook：61 T
- Max. Weight of Single Unit in Travel Con：39 T
- Max.Rated Lifting Capacity Basic Boom：70 T
- Max.Rated Lifting Capacity Fixed Jib：6.5 T
- Transport Package：Nude
- Specification：12600*3320*3230 mm
- Trademark：Acntruck
- Origin：China, Jiangsu
- HS Code：8426491000
- Production Capacity：200 Units, Month
Description
Item
Unit
Parameter
Max.rated lifting capacity
Basic boom
t
70
Fixed jib
t
6.5
Max. load moment
kN-m
2744
Main boom length
m
13-58
Main boom Luffing angle
°
30-80
Fixed jib length
m
9-18
Winch max. single line speed( no load,at 5th layer)
m/min
120
Boom luffing gear max. single line speed( at 1th layer)
m/min
57
Max. swing speed
r/min
2.4
Max. travel speed
km/h
1.2
Max. grade-ability
%
30
Mean ground pressure
MPa
0.087
Engine output power
kW
200
Gross vehicle mass (including main hook block and 13m boom)
t
61
Max. weight of single unit in travel configuration
t
39
Max. dimension of single unit in travel configuration (L×W×H)
m
12.6×3.32×3.23
