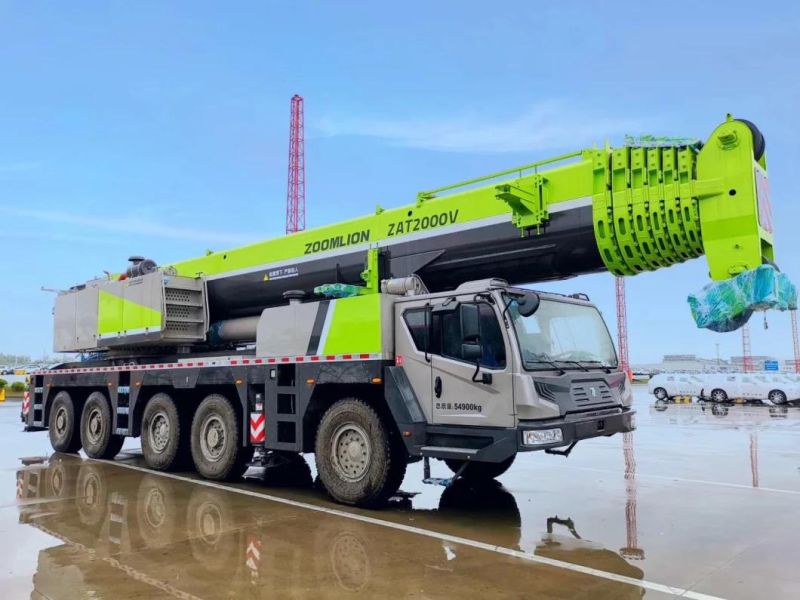

• Model NO.：ZAT2000V753
• Type：Straight Arm
• Max. Load Moment of Basic Boom：6664 Kn.M
• Max. Lifting Height of Main Boom：72 M
• Max. Hoist Rope Speed(Main Winch)：120 M,Min
• Max. Driving Speed：75 Km,H
• Deadweight in Driving Condition：60000 Kg
• Min. Ground Clearance：305 mm
• Turning Diameter：20 M
• Max. Grade Ability：40%
• Main Boom Length：13.4 - 72m
• Jib Length：12, 20, 28m
• Engine：Wp13.530e40
• Max. Rated Power：390 Kw,R,Min
• Transport Package：Nude Package
• Specification：15660x3000x 4000mm
• Trademark：Zoomlion
• Origin：China
• HS Code：84295100
• Production Capacity：10000

 ItemUnitValueWorking performanceMax. rated lifting capacitykg200000 Max. load moment of basic boomkN.m6664At 8 m radiusMax. lifting height of main boomm72 Max. lifting height of jibm95/(103)        Working speeds                             Max. hoist rope speed(Main winch)m/min120At the 4th  layerMax. hoist rope speed(Auxiliary winch)m/min70At the 3rd  layerBoom derricking up times97 Boom extendingt times720 Max. Slewing  speedr/min0 - 1.4 Driving parametersMax. driving  speedkm/h75 Max. gradeability%40 Turning diameterm≤20 Min.  ground clearancemm305 Limits for exhaust pollutants and smoke Conform to related standardsGB3847-2005/GB17691-2005(National Stage 4)Fuel consumption per hundred kilometersL78 MassDeadweight in driving conditionkg60000 Complete vehicle kerb masskg59805 Load on axles 1,2 and 3kg12000 Load on axles 4 and 5kg12000 DimensionsOverall dimensions(L×W×H)mm15660×3000×4000 Outrigger spread(L)m8.9 Outrigger spread(W)m8.3 Main boom lengthm13.4 - 72 Boom angle°-0.5 - 83 Jib lengthm12,20,28 Jib + extension  lengthm36 Offset°0,15,30  EngineModelWP13.530E40  Max. rated power390kW/r/minAt 2100 r/min. Max. net power385 kW/r/minAt 2100 r/min Max. output torque2220N.m/r/minAt 1200~1500 r/min.
