• Model NO.：SPC320
• Type：Straight Arm
• Emission Standard Capacity：Euro 3
• Engine Model：Benz
• Rated Power/Revolution Speed：350,2100 Kw, Rpm
• Max. Lifting Moment-Base Boom：99m
• Swing Speed：1.6 R,Min
• HVAC in up Cab：Cooling and Heating
• HVAC in Low Cab：Cooling and Heating
• Weight：55500kg
• Front Axle Load：10000,10000kg
• Rear Axle Load：13000,13000,9000kg
• Transport Package：Regular Package
• Specification：15469*3000*4000
• Origin：China
• Production Capacity：50

Basic Info.

Model NO. SPC320 Type Straight Arm Emission Standard Capacity Euro 3 Engine Model Benz Rated Power/Revolution Speed 350/2100 Kw/ Rpm Max. Lifting Moment-Base Boom 99m Swing Speed 1.6 R/Min HVAC in up Cab Cooling and Heating HVAC in Low Cab Cooling and Heating Weight 55500kg Front Axle Load 10000/10000kg Rear Axle Load 13000/13000/9000kg Transport Package Regular Package Specification 15469*3000*4000 Origin China Production Capacity 50

Product Description



SPC320 32 tons General Chassis Crane

SPC320 general chassis crane's jib mounting angles are 0°, 15°, and 30°that ensures the fast and convinent shift among different jobsite so as to improve the working efficiency of the crane.

Powerful Lifting Capacity

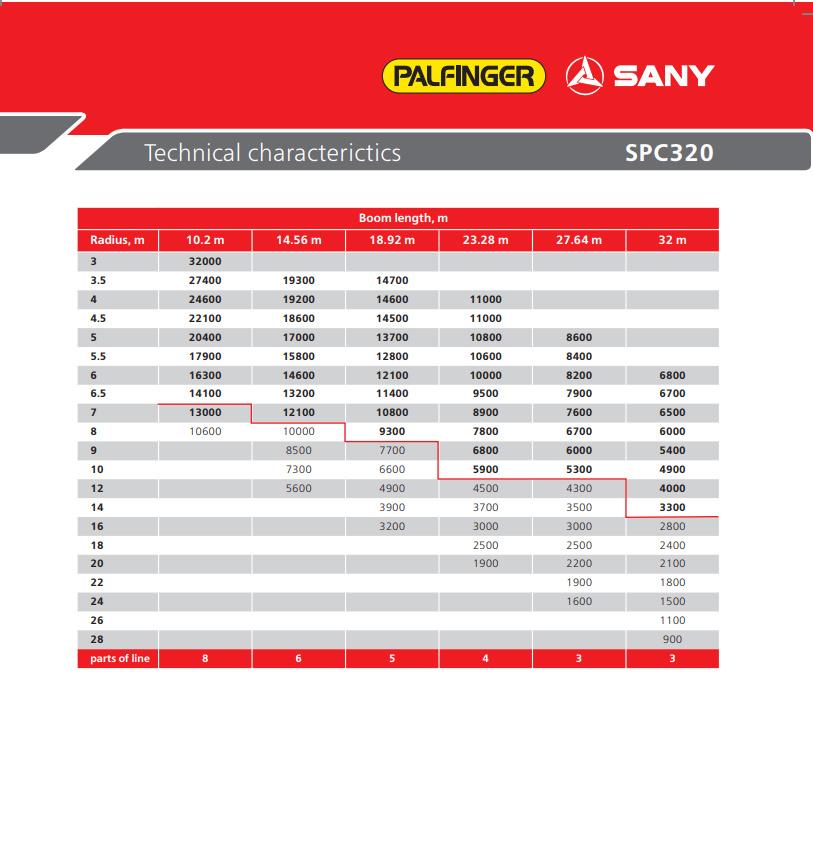

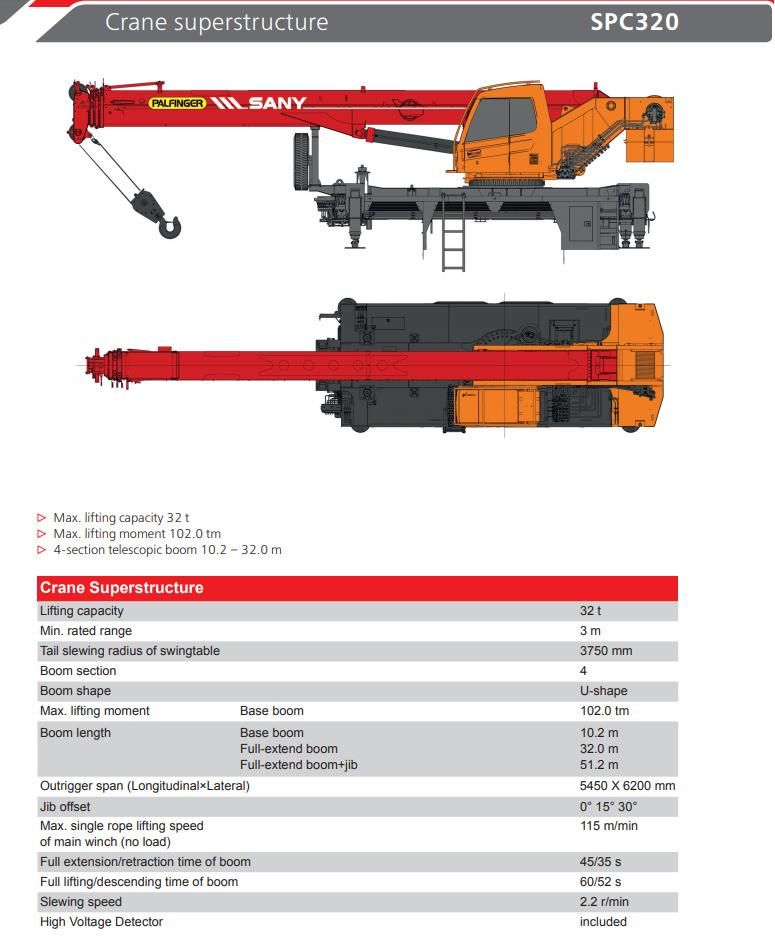

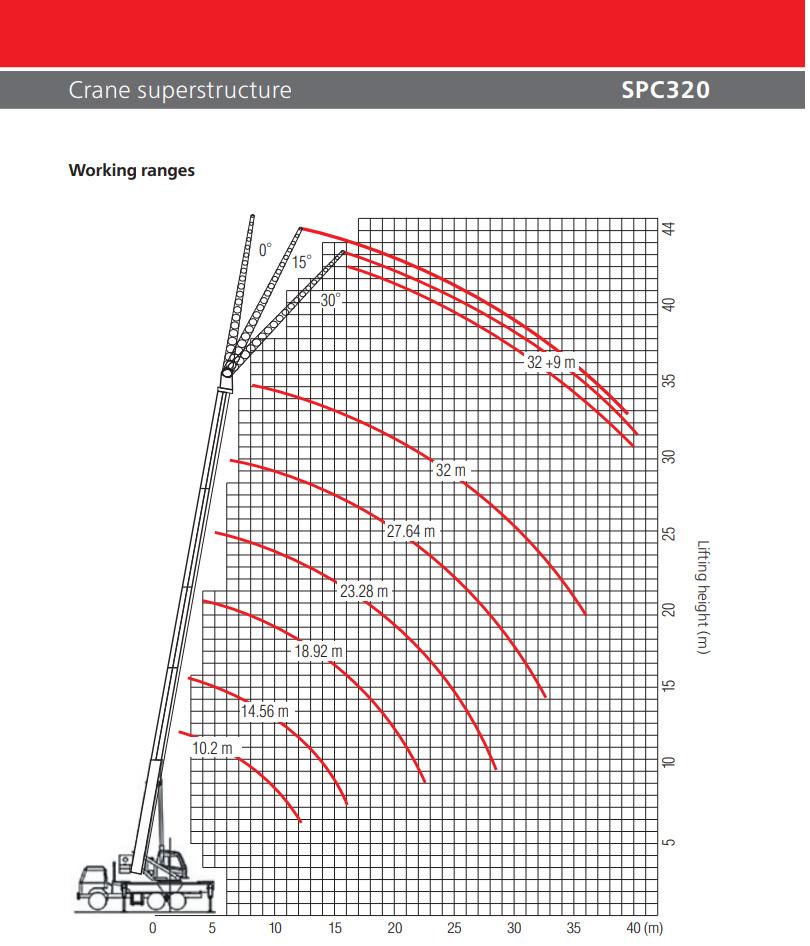

The 32 t general chassis crane has four-section boom of high strength steel structure and optimized U-shaped cross section reduce weight significantly with max.lifting capacity of 32t, full-extended boom length of 32m, max.lifting height including jib of 51.2m.

Jib mounting angles are 0°, 15°, and 30°, ensuring fast and convenient change-over between different operating conditions so as to improve the working efficiency of the crane.

Efficient Hydraulic System

Triple gear pump, load feedback and constant power control are applied to provide strong lifting capacity and good micro-mobility. Unique steering buffer design is adopted to ensure stable braking operation.

Intelligent Electronic Control

Self-developed controller SYMC special for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.

The Load Moment Limiter

Equipped with the comprehensive intelligent protection system is used with accuracy within 3% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.

Safe & Comfortable Cab

The crane's cab is made of anti-corrosion steel plate with ergonomic design such as full coverage soften interior, panoramic sunroof and adjustable seats etc., providing more comfortable and safe operation experience.
