• Model NO.：SPC400 SPC400
• Type：Straight Arm
• Emission Standard Capacity：Euro 3
• Engine Model：Benz
• Rated Power/Revolution Speed：350,2100 Kw, Rpm
• Max. Lifting Moment-Base Boom：99m
• Swing Speed：1.6 R,Min
• HVAC in up Cab：Cooling and Heating
• HVAC in Low Cab：Cooling and Heating
• Weight：55500kg
• Front Axle Load：10000,10000kg
• Rear Axle Load：13000,13000,9000kg
• Transport Package：Regular Package
• Specification：15469*3000*4000
• Origin：China
• Production Capacity：50

Basic Info.

Model NO. SPC400 SPC400 Type Straight Arm Emission Standard Capacity Euro 3 Engine Model Benz Rated Power/Revolution Speed 350/2100 Kw/ Rpm Max. Lifting Moment-Base Boom 99m Swing Speed 1.6 R/Min HVAC in up Cab Cooling and Heating HVAC in Low Cab Cooling and Heating Weight 55500kg Front Axle Load 10000/10000kg Rear Axle Load 13000/13000/9000kg Transport Package Regular Package Specification 15469*3000*4000 Origin China Production Capacity 50

Product Description

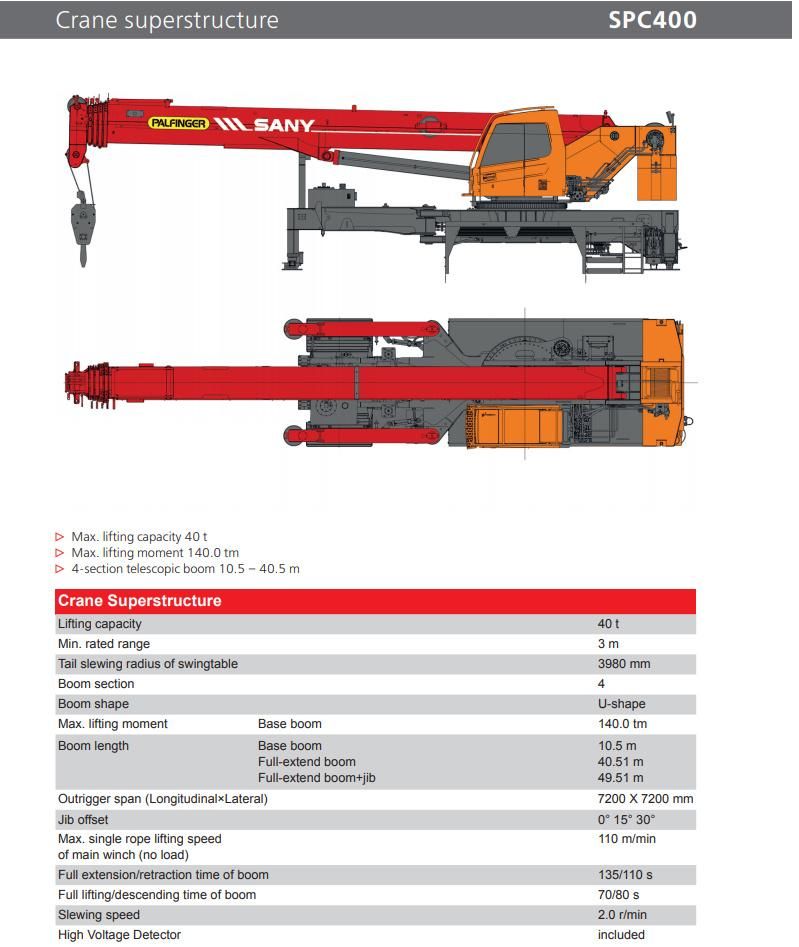

SPC400SPC400 40 tons General Chassis Crane

SPC400 general chassis crane's Jib mounting angles are 0°, 15°, and 30° to allow quick change-overs between different operating conditions so as to improve working efficiency of the machine.

Powerful Lifting Capacity

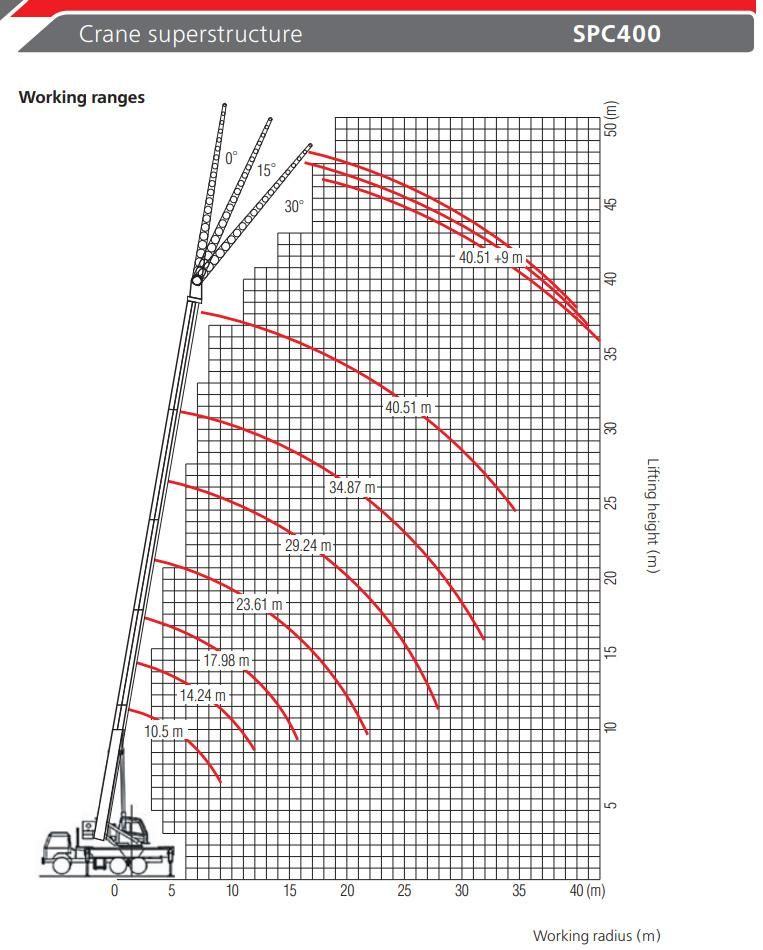

The 40 t general chassis crane features a five-section boom made from strengthened steel and optimized U-shaped section with max.lifting capacity of 40t, full-extended boom length of 40.5m, max.lifting height including jib of 49.5m, reduce weight and improve safety significantly.

Adjustable Hydraulic System

Triple gear pump, load feedback and constant power control are applied to enhance lifting capacity and micro-mobility. And the unique steering buffer guarantees smooth braking.

Excellent Traveling Performance

Double-axle drive is applied to provide good mobility. Trafficability and comfortableness under the complex road condition is improved with reliable traveling performance;

Engine has the multimode power output function, which reduces power consumption.

Intelligent Electronic Control

  self-developed controller SYMC is specially designed for engineering machinery. The CAN-bus fully digital network control technology provides stable control signal, simple harness, and high reliability. It can provide feedback on data and monitor the working condition of whole crane in real-time.

The Load Moment Limiter

It is configured with comprehensive intelligent protection system that achieves precision within 3%. The comprehensive logic and interlock control system ensures safe and reliable operation.
