• Model NO.：SQ5SK2Q
• Shaft Number：2
• Crane Jib：Four-Arm
• Type：Straight Arm
• Transport Package：Nude Packing or by Container
• Specification：9200mmx2500mmx3710mm
• Trademark：Top brand
• Origin：Jiangsu, China
• HS Code：8426910000
• Production Capacity：10000 Units,Month

DimensionsUnit Overall lengthMm13790Overall widthMm2800Overall heightMm3675Weight  Dead weight in travel stateKg42490Front axle loadKg16490Rear axle loadKg26000Power  Engine model WD615.334Engine rated outputKw(r/min)247/2200Engine rated torqueN.m(r/min)1350/1400Travel  Max.travel speedKm/h80Min. turning diameterM24Min. ground clearanceMm327Approach angle.21Departure angle.15Max. gradeability%40Fuel consumption of per 100kmL≈42Lifting performance  Max. total rated lifting loadT50Min. rated working radiusM3Turning radius at swing table tailMm3500Base boom max. load momentKn.m1838Base boomM11.4Full-extend boomM43.3Full-extend boom+Jibm59.3Outrigger longitudinal distance spanM5.91Outrigger lateral distance spanM6.9Working speed  Boom elevating timeS88Boom telescoping timeS180Max. slewing speedr/min2Main winch max. speed(single line)m/min130Auxiliary winch max.speed(single line)m/min130

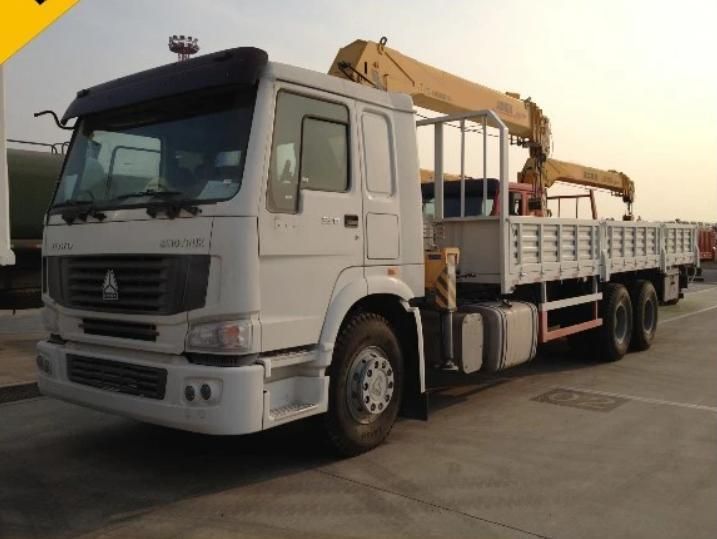

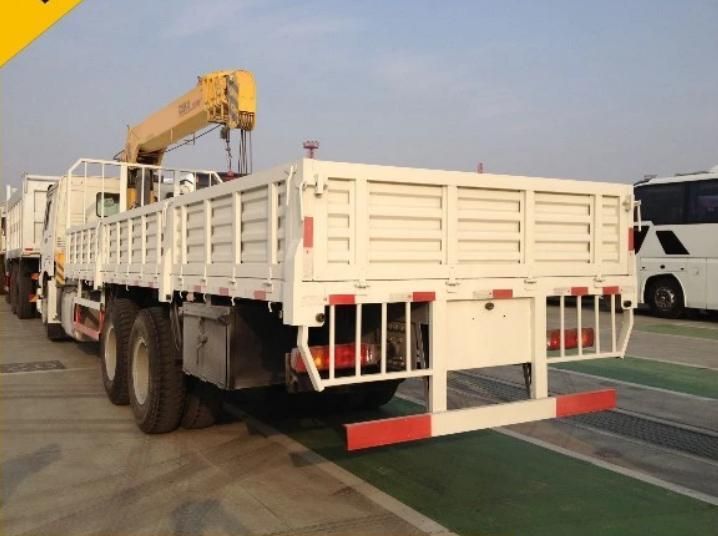

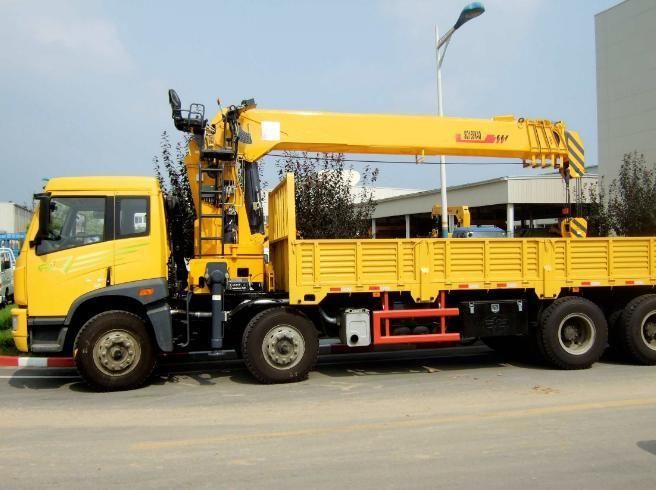

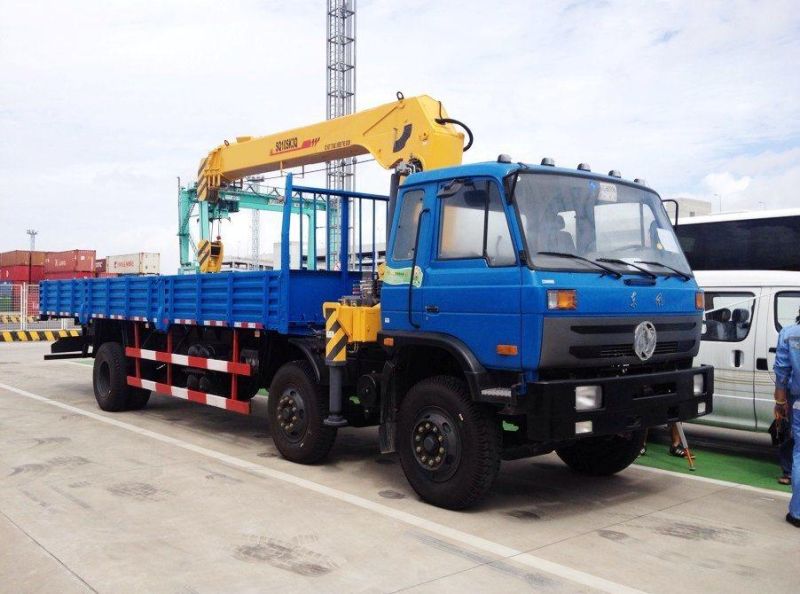

Product Show
