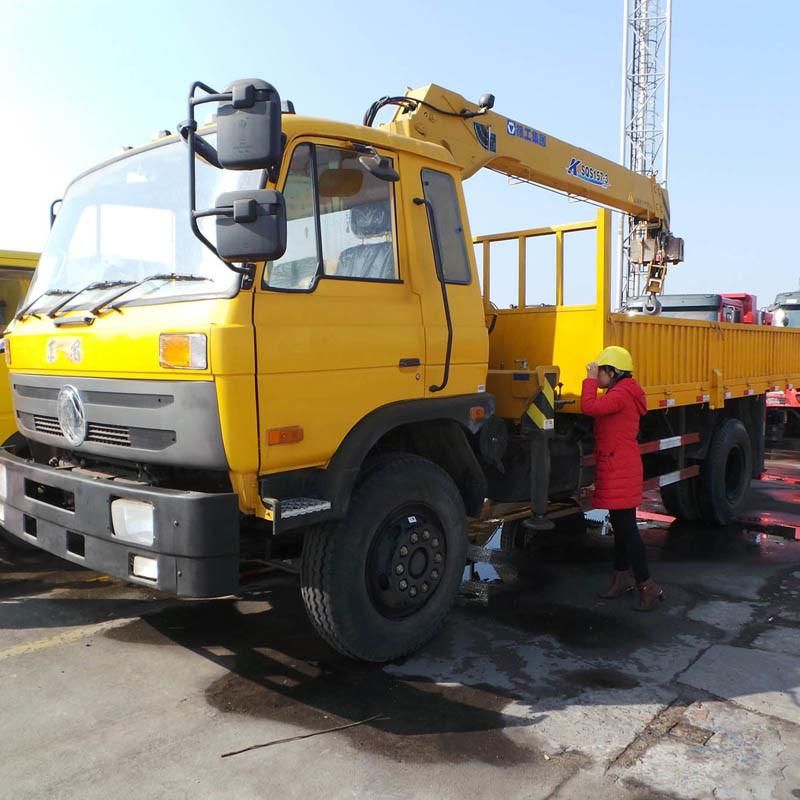

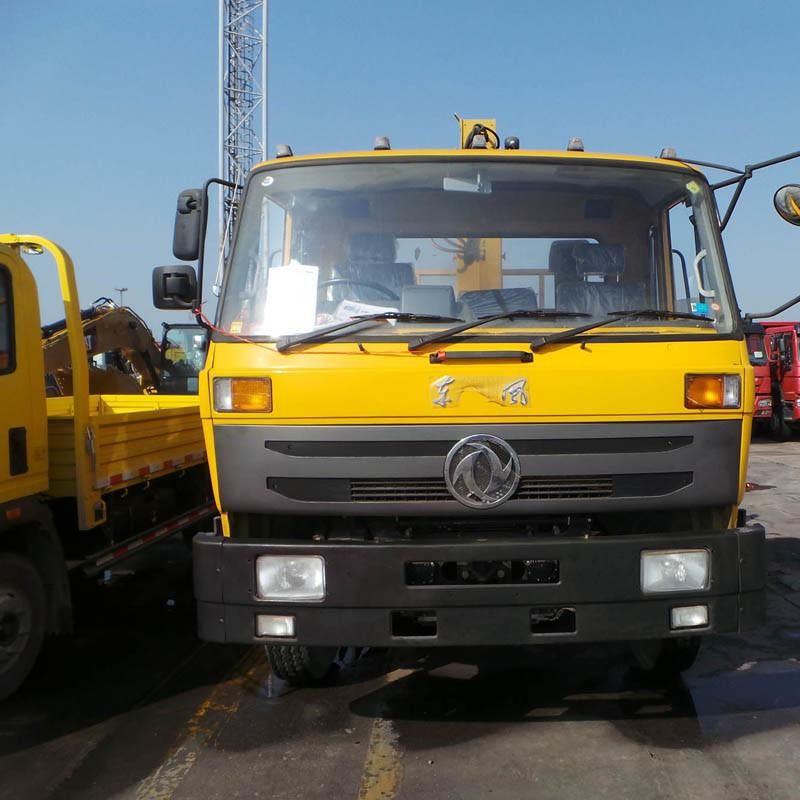

2tons Truck-Mounted Crane with Telescopic Boom Sq2sk1q
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：<10m
- Maximum Lifting Weight：<2t
- Shaft Number：2
- Crane Jib：Two-Arm
Base Info
- Model NO.：SQ2SK1Q
- Type：Straight Arm
- Color：Customer Requirements
- Types：Truck Mounted Crane Mobile Crane Truck
- Keyword：Crane Truck Mobile Truck Crane Sizes
- Key Words：Car Mounted Crane
- Usage：Construction Lifting
- Crane Type：Truck Crane Mobile Crane Hydraulic Crane
- Truck Crane：Lifting Mechanism
- Crane：Manual Hydraulic Crane
- Hydraulic Parts：Telescopic Boom Mobile Crane Made
- Transport Package：Nude Package
- Specification：small
- Trademark：maxizm
- Origin：Jiangsu, China
- Production Capacity：1000units,Year
Description
Model
SQ2SK1Q
Unit
Max Lifting Capacity
2100
kg
Max Lifting Moment
4.2
T.M
Recommend Power
9
kw
Max Oil Flow of Hydraulic System
20
L/min
Max Pressure of Hydraulic System
16
MPa
Oil Tank Capacity
25
L
Rotation Angle
All Rotation
Crane Weight
640/818
kg
Installation Space
850
mm
Choice of Chassis
HFC1065KRT;JX1050TGB23;JX1060TSG23;EQ1060GJ20D3; EQ1092FJ;EQ1092FJ1;EQ1060TJ20D3
Working radius (m) | 2.10 | 2.50 | 3.00 |
|---|---|---|---|
Lifting capacity (kg) | 2100 | 1800 | 1000 |
