Small Type 2 Ton Truck Mounted Crane with Cheapest Price
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：10-15m
- Maximum Lifting Weight：5-7t
- Shaft Number：3
- Crane Jib：Two-Arm
Base Info
- Model NO.：SQ2SK1Q
- Type：Folding
- Max Lifting Moment：12.5 T.M
- Recommend Power：18kw
- Max Oil Flow of Hydraulic System：32L,Min
- Max Pressure of Hydraulic System：18MPa
- Oil Tank Capacit：100L
- Rotation Angle：All Rotation
- Crane Weight：2074,2170kg
- Installation Space：1000mm
- Color：Customized
- Application：Construction
- Model：Sq5sk2q
- Transport Package：Nude Package, Suitable for Shipment
- Specification：8305*2695*3420mm
- Trademark：Acntruck
- Origin：China
- HS Code：870422300
- Production Capacity：3000 Sets,Month
Description
Model
SQ5SK2Q
Unit
Max Lifting Capacity
5000
kg
Max Lifting Moment
12.5
T.M
Recommend Power
18
kw
Max Oil Flow of Hydraulic System
32
L/min
Max Pressure of Hydraulic System
18
MPa
Oil Tank Capacit
100
L
Rotation Angle
All Rotation
Crane Weight
2074/2170
kg
Installation Space
1000
mm
Choice of Chassis
CA1140PK2L3EA80; DFL1140B; EQ1126KJ1; HFC1132KR1K3; LZ1120LAPT; EQ1141NBJ2; EQ5201GFJ6; EQ5201GFJ6; NXG1160D3ZAL1X
Working radius(m) | 2.5 | 3.62 | 6.05 | 8.5 |
|---|---|---|---|---|
Lifting capacity(kg) | 5000 | 2800 | 1500 | 1100 |
Working radius(m) | 2.5 | 3.62 | 6.05 | 8.5 | 11 |
|---|---|---|---|---|---|
Lifting capacity(kg) | 5000 | 2800 | 1500 | 1100 | 400 |

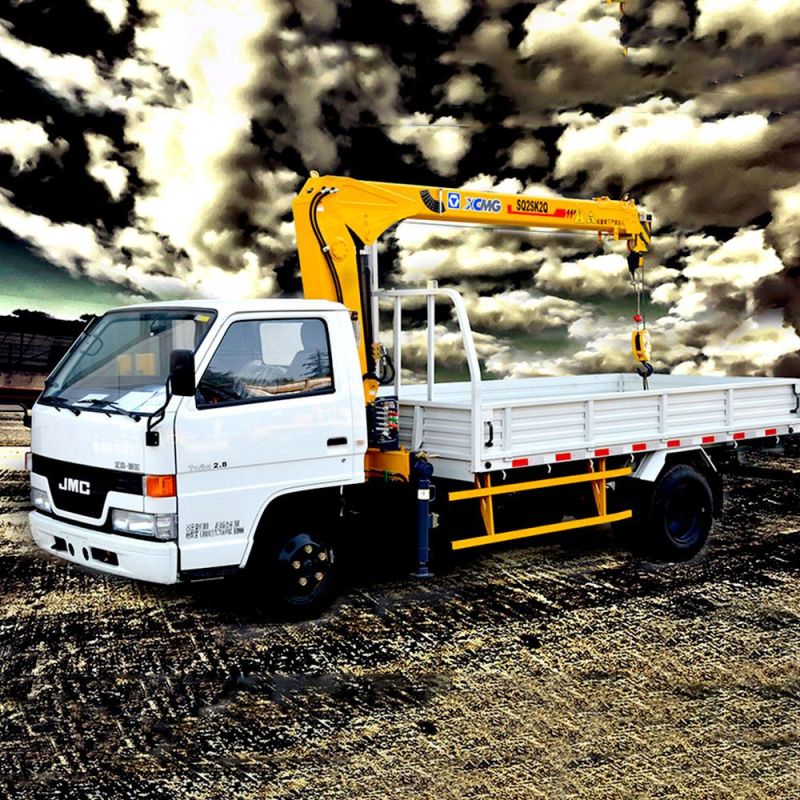

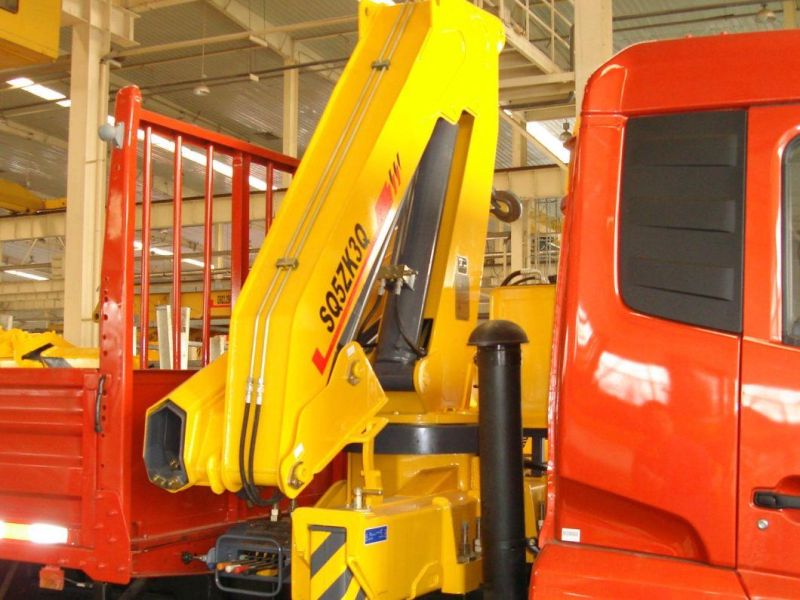

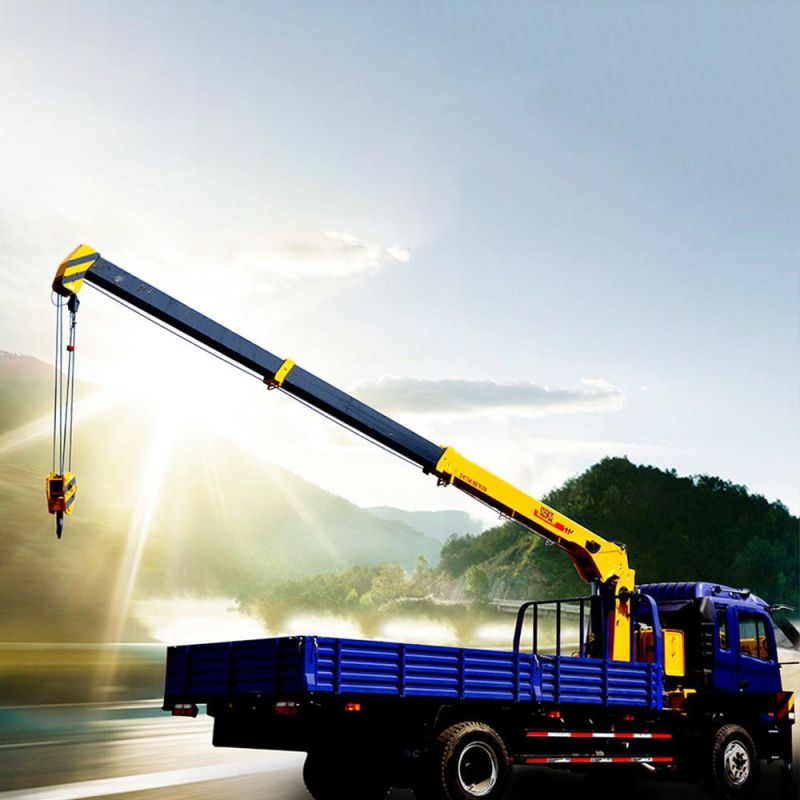

Product pictures:
Company Information:
