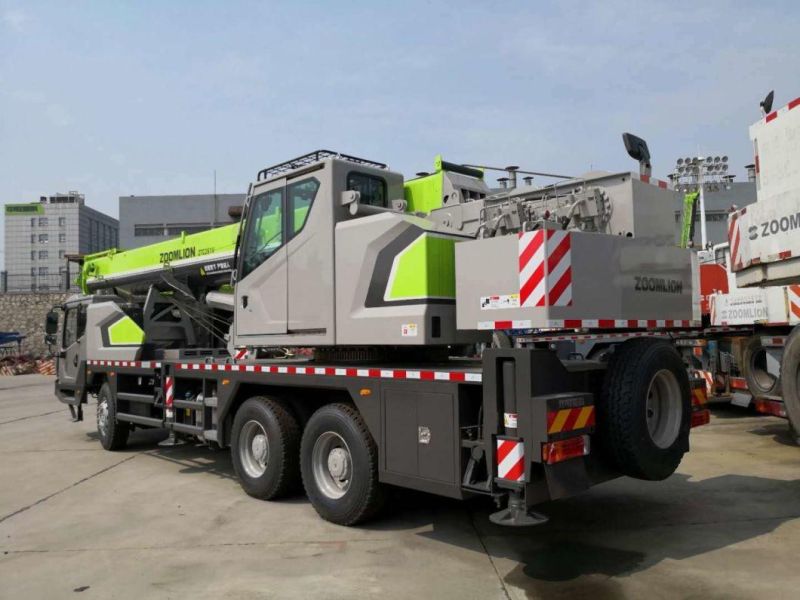

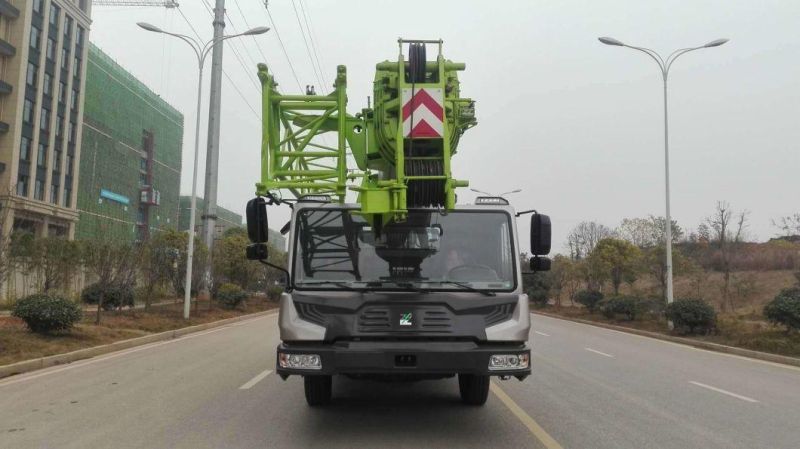

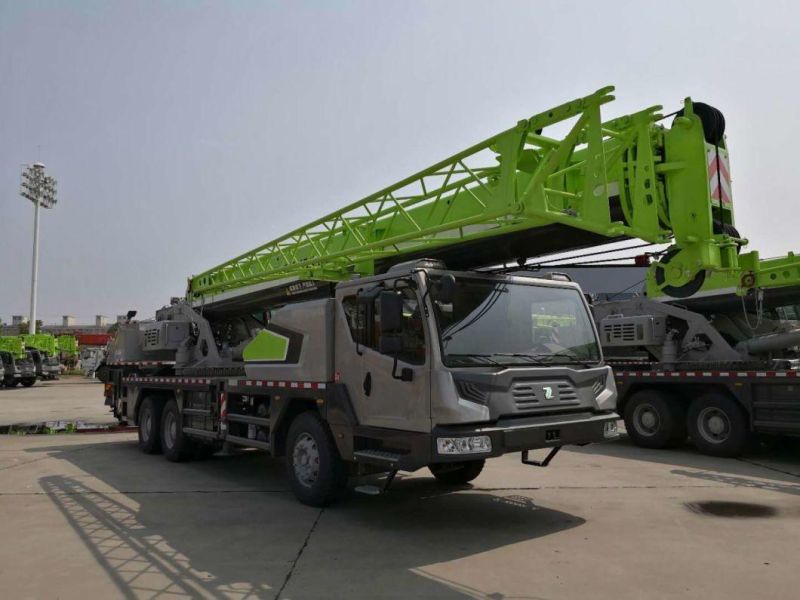

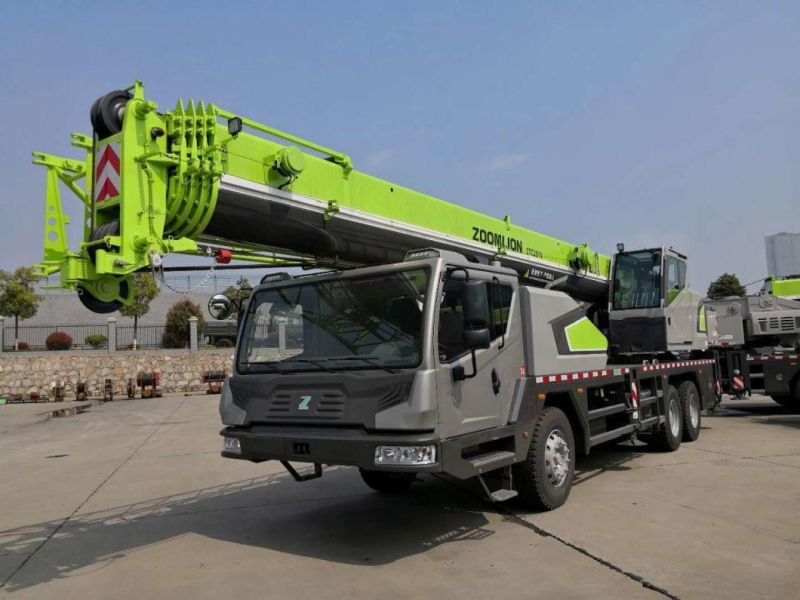

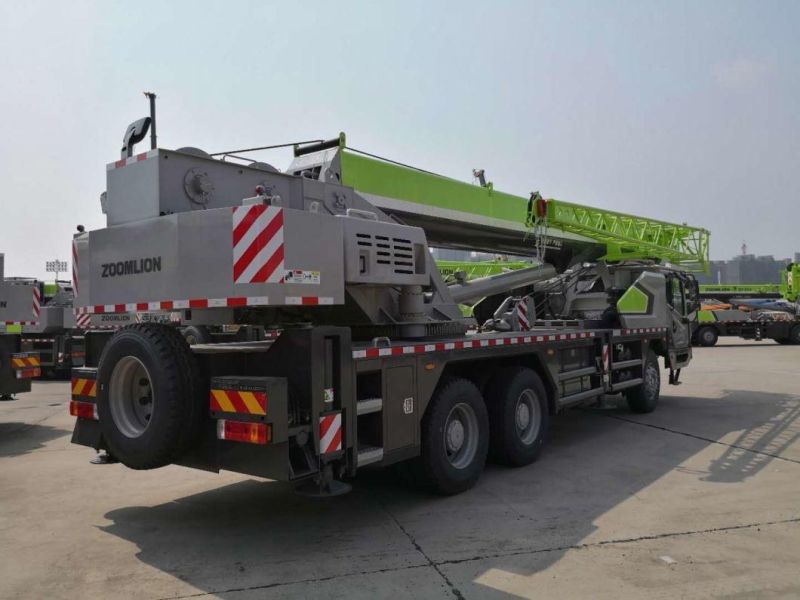

Zoomlion Truck Crane with 25 Ton Lifting Capaicty (Qy25V532)

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

After-sales Service：1 Year Warranty for Spare Parts
Warranty：1 Year Warranty for Spare Parts
Certification：GS, RoHS, CE, ISO9001
Condition：New
Maximum Lifting Height：>40m
Maximum Lifting Weight：>16t

Base Info

Model NO.：Qy25V532
Shaft Number：2
Crane Jib：Five-Arm
Type：Straight Arm
Dimension：12700*2500*3450mm
Max. Lifting Height of Fly Jib：47m
Max. Lifting Height of Basic Boom：11.1m
Max. Rated Lifting Weight：25ton
Shipping Method：Roro or Bulk Ship
Engine：Shanghai,Weichai Diesel Engine
Max. Lifting Height of Jib：47m
Sling Type：Wire Rope
Installation：Assembled
Transport Package：Nude Packing
Specification：ISO, CE, GHOST
Trademark：Zoomlion
Origin：Hunan, China
HS Code：87051092
Production Capacity：5000sets,Month

Description

Working performance1Max. rated lifting weight × working radiuskg.m25000×3.02Max. lifting torque of basic boomkN.m9803Max.lifting torque of longest main boomkN.m4944Max. lifting height of longest main boomm395Max. lifting height of jibm47Dimensions6Outline dimensions (L×W×H)mm12700×2500×34507Distance between outriggers (longitudinal × transversal)mm5360×61008Main boom length (completely retracted - completely extended)m10.4~39.29Jib lengthm810Main boom angle of elevation°-2~8011Swing range 360°continuouslyWorking speed12Max.speed of single rope on the drum of main winchm/min12013Boom extension times8014Boom derricking up times4015Swing speedr/min0~2.2Mass16Complete vehicle kerb masskg3157017Front axle loadkg690018Rear axle loadkg24800Traveling19Max. traveling speedkm/h7820Max. gradeability%3721Min. turn radiusm1122Min. ground clearancemm220
Zoomlion Truck Crane with 25 Ton Lifting Capaicty (Qy25V532)

Zoomlion Truck Crane with 25 Ton Lifting Capaicty (Qy25V532)

Zoomlion Truck Crane with 25 Ton Lifting Capaicty (Qy25V532)

Zoomlion Truck Crane with 25 Ton Lifting Capaicty (Qy25V532)

Zoomlion Truck Crane with 25 Ton Lifting Capaicty (Qy25V532)

Zoomlion Truck Crane with 25 Ton Lifting Capaicty (Qy25V532)
