Zoomlion 70 Ton Truck Crane for Sale (Qy70V532)

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t
  • Shaft Number：4
  • Crane Jib：Five-Arm

Base Info

  • Model NO.：Qy70V532
  • Type：Straight Arm
  • Dimension：14100*2750*3750mm
  • Max. Lifting Height of Fly Jib：60.2m
  • Max. Lifting Height of Basic Boom：11.1m
  • Max. Rated Lifting Weight：70ton
  • Power Source：Hydraulic
  • Sling Type：Wire Rope
  • Application：Construction Usage
  • Transport Package：Nude Packing
  • Specification：ISO, CE, GHOST
  • Trademark：Zoomlion
  • Origin：Hunan, China
  • HS Code：87051092
  • Production Capacity：5000sets,Month

Description

Working performance1Max. rated lifting weight × working radiuskg.m70000×3.02Max. lifting torque of basic boomkN.m23523Max.lifting torque of longest main boomkN.m10984Max. lifting height of longest main boomm44.25Max. lifting height of jibm60.2Dimensions6Outline dimensions (L×W×H)mm14100×2750×37507Distance between outriggers (longitudinal × transversal)mm6000×76008Main boom length (completely retracted - completely extended)m11.6~449Jib lengthm9.51610Main boom angle of elevation°-2~8011Swing range 360°continuouslyWorking speed12Max.speed of single rope on the drum of main winchm/min13513Boom extension times10714Boom derricking up times5715Swing speedr/min0~1.8Mass16Complete vehicle kerb masskg4487017Front axle loadkg1900018Rear axle loadkg26000Traveling19Max. traveling speedkm/h7520Max. gradeability%3721Minimum turn radiusm1222Min. ground clearancemm280

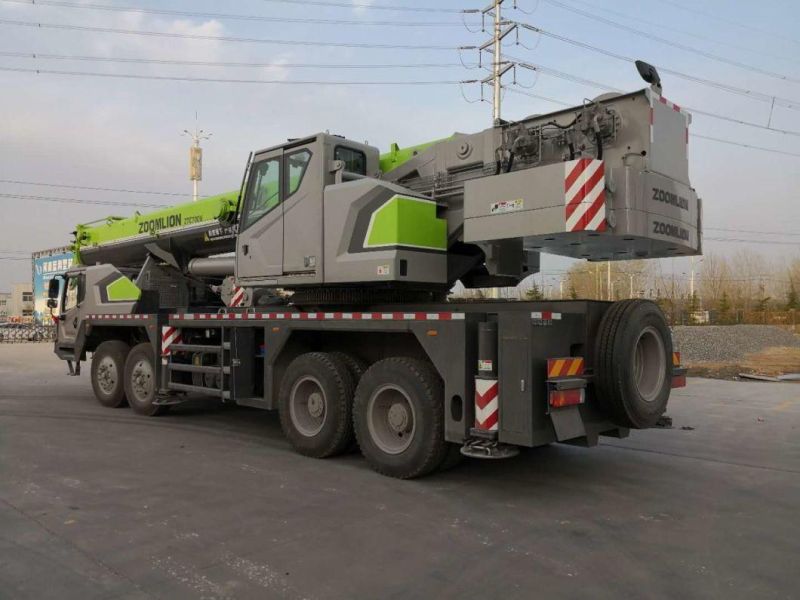

Zoomlion 70 Ton Truck Crane for Sale (Qy70V532)

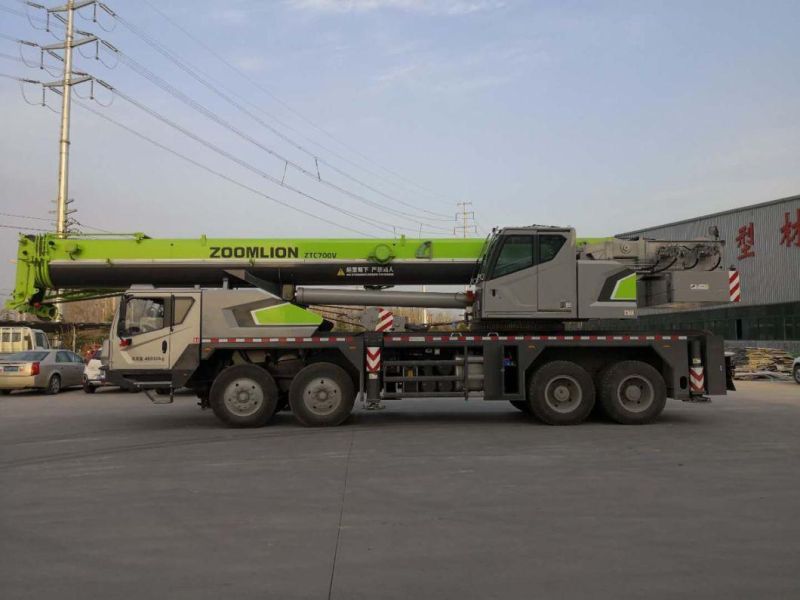

Zoomlion 70 Ton Truck Crane for Sale (Qy70V532)

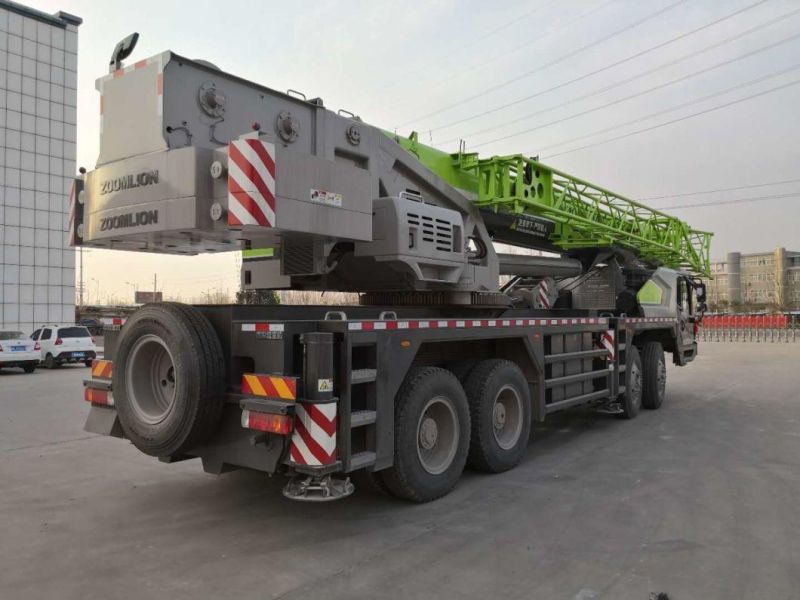

Zoomlion 70 Ton Truck Crane for Sale (Qy70V532)

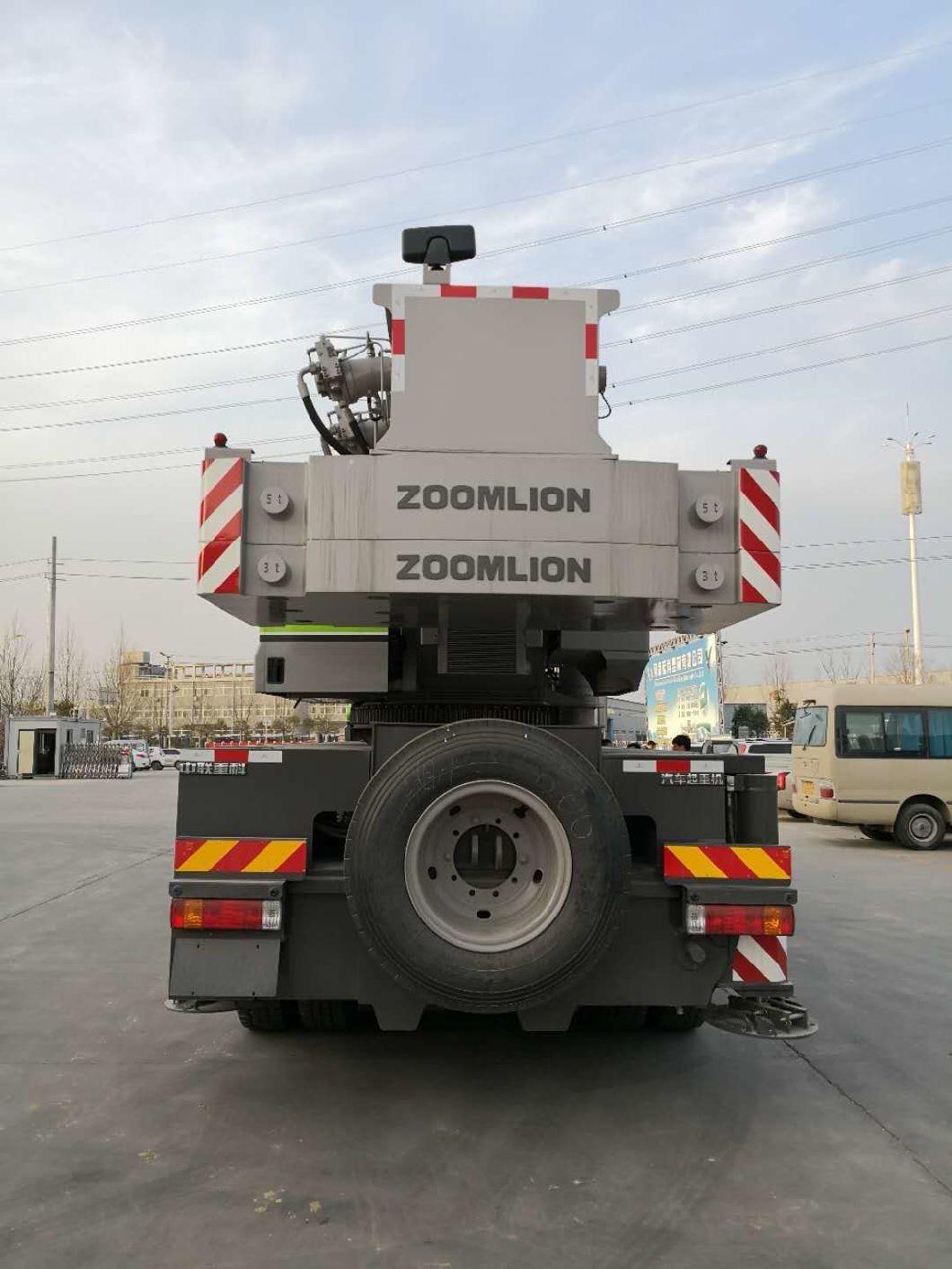

Zoomlion 70 Ton Truck Crane for Sale (Qy70V532)
