• Model NO.：ZCC850H
• Main Boom Length：13 - 58m
• Fixed Jib Length：6,18m
• Max. Lifting Capacity of Fixed Jib：7 T
• Slewing Speed：0-2r,Min
• Traveling Speed：0-1.57km,H
• Gradeability：30%
• Engine：Wp10.270n
• Rated Power：199,1900kw,Rpm
• Transport Package：Nude Package
• Specification：13500*5000 (3400) *3200mm
• Trademark：Zoomlion
• Origin：China
• HS Code：84264910
• Production Capacity：10000

ItemUnitValueRemarksMax. lifting capacity × radiust × m80×4 Max. lifting capacity on fixed jibt7 Max. lifting capacity of luffing jibt15 Main boom lengthm13 - 58 Fixed jib lengthm6/18 Max. length of main boom with fixed jibt49+18 Luffing jib lengthm16m-34m Max. main boom +max. luffing jibm43.5m+34m Derricking angle.30 - 80 Fixed jib angle.10, 30 Max. rope speedHoisting winch 1m/min125/110With optional free-fall functionof winchesHoisting winch 2125  Derricking winch93 Slewing speedrpm0-2 Traveling speedkm/h0-1.57 Max. gradeability%30With basic boom and counterweight over frontGround pressureMpa0.083 Deadweightt72.8With basic boomCrane counterweightt27 Overall dimensions(L × W × H)m13500×5000 (3400) ×3200With A-frame and main boom pivot sectionEngineModel WP10.270NWeichai PowerRated power / rotational speedkW/r/min199/1900 Max. output torque /rotational speedNm/r/min1270/1200-1500 Exhaust emission National StageII Distance between track center × crawler contact length × crawler widthmm2600 ×5440×800Crawler carrier retracted4200 ×5440×800Crawler carrier extendedNoiseNoise level outside operator's cab during operation(dB)≤107 Noise level in operator's cab during operation≤79Contact me:
Contact Me:Mia Zhu

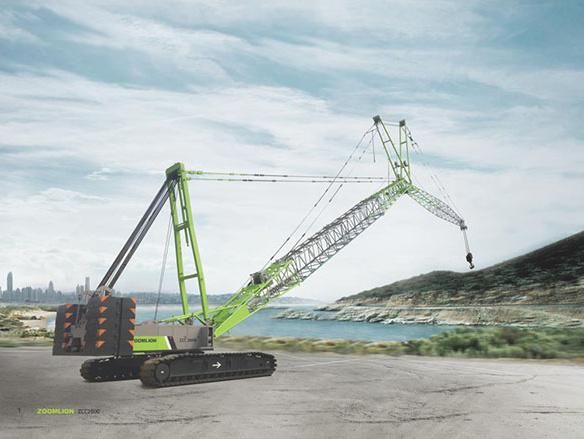

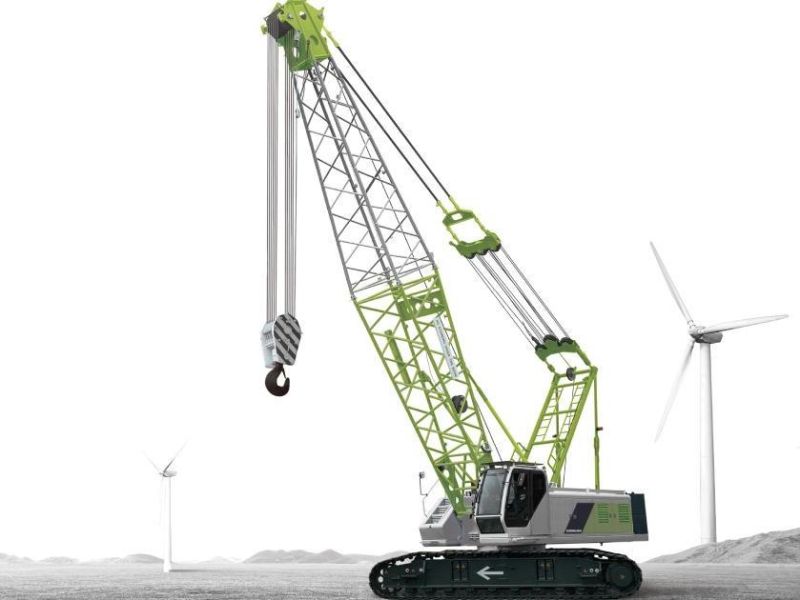

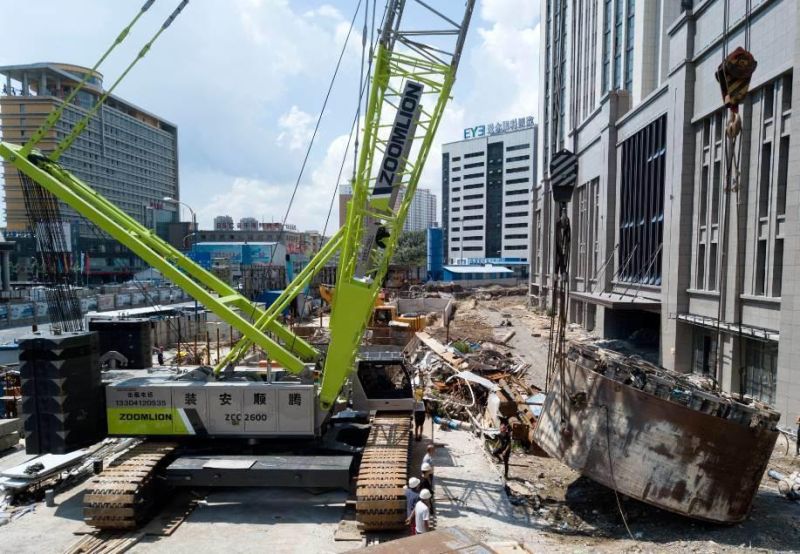

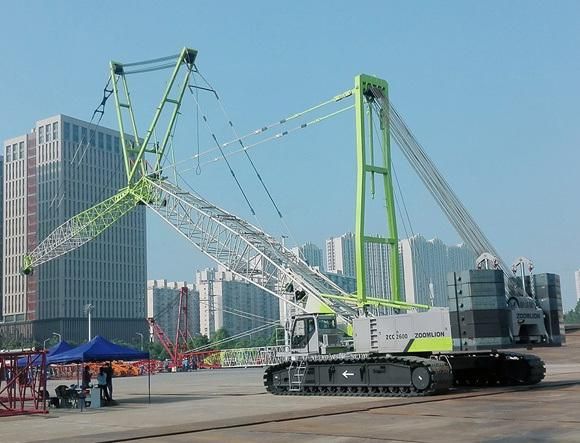

Pictures:
