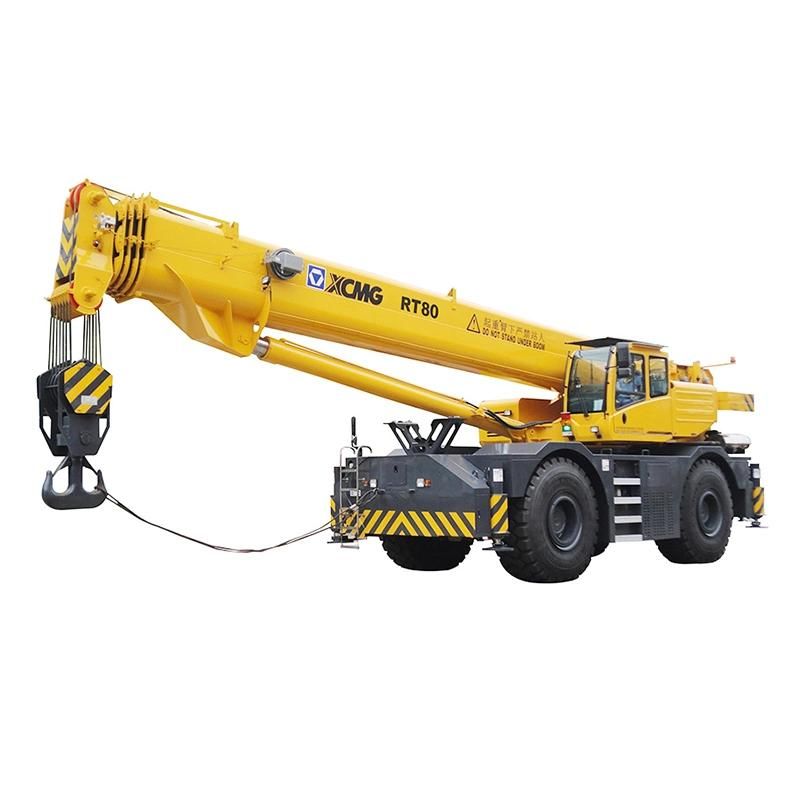

80 Ton Rough Terrain Crane Mobile Truck Crane Rt80 in Stock
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：2
- Crane Jib：Two-Arm
Base Info
- Model NO.：RT80
- Type：Folding
- Max. Total Rated Lifting Load：25000kg
- Min. Ground Clearance：345mm
- Max. Travel Speed：50km,H
- Engine Rated Output：142,2200Tkw,Rpm
- Engine Model：Qsb6.7-C190
- Transport Package：Nude Package
- Specification：11703*2700*3385mm
- Trademark：XCM_G
- Origin：China
- HS Code：87059091
- Production Capacity：1000units,Month
Description
Project
Unit
Parameter
Measurements Parameters
(mm)
14067
Length of Entire Vehicle
(mm)
3400
Width of Entire Vehicle
(mm)
3990
Height of Entire Vehicle
(mm)
4380
Wheel Base
(mm)
2554
Wheel Track
(mm)
14067
Weight Parameters
Gross Vehicle Weight When Driving
(kg)
58000
Axle Load
(kg)
(Front Axle)30350 (Rear Axle)27650
Kinetic Paremeter
Engine Type
-
QSL
Engine Rated Power(kw/
(kw/(r/min))
209
Engine Max Torque(N.m/
(N.m/(r/min))
1424
Driving Parameters
Driving
Max Travel Speed
(km/h)
36
Min Travel Speed
(km/h)
2
Swerve
Min Turning Radius
(m)
15
Head Min. Turning Diameter
(m)
-
Max Gradeability
(%)
60
Min. Ground Clearance of Machine
(mm)
440
Approach Angle
(°)
22.5
Departure Angle
(°)
20
Braking Distance
(m)
9
Fuel Consumption per 100kms
(L)
-
Major Performance Parameters
Max. Rated Lifting Capacity
(t)
80
Min. Rated Range
(m)
3
Max. Load Moment of Basic Jib
(kN·m)
3140
Radius of Gyration of Turntable Tail
(mm)
4625
Outrigger
Longitudinal
(m)
7.8
Horizontal
(m)
7.6/6.5
Max. Lifting Height
Basic Boom
(m)
12.4
Longest Main Boom
(m)
46.2
Longest Main Boom + Auxiliary Boom
(m)
60.2
Boom Length of Crane
Basic Boom
(m)
11.9
Longest Main Boom
(m)
46
Longest Main Boom + Auxiliary Boom
-
63.5
Longest Main Boom + Auxiliary Boom + Extension
-
-
Working Speed
Max. Slewing Speed
(r/min)
1.8
Lifting Speed
Main Hoisting Mechanism
(m/min)
125(Unload)
Auxiliary Hoisting Mechanism
(m/min)
125(Unload)
Stretching and Retracting Time of Crane Boom
Full Stretching
(s)
152
Full Retracting
-
-
Luffing Time
Full Travel Boom Lifting
(s)
85
Full Travel Boom Lowering
(s)
-
Outrigger Extension and Retract
Horizontal
Stretching at the Same Time
(s)
40
Retracting at the Same Time
(s)
30
Vertical
Stretching at the Same Time
-
55
Retracting at the Same Time
-
40
