• Model NO.：QY25D531R
• Type：Folding
• Max. Hoist Rope Speed (Main Winch)：120m,Min
• Max. Driving Speed：78km,H
• Min. Ground Clearance：235mm
• Oil Consumption Per Hundred Kilometer：35L
• Deadweight in Driving Condition：32400kg
• Front Axle Load：6500kg
• Rear Axle Load：25900kg
• Transport Package：Nude Package

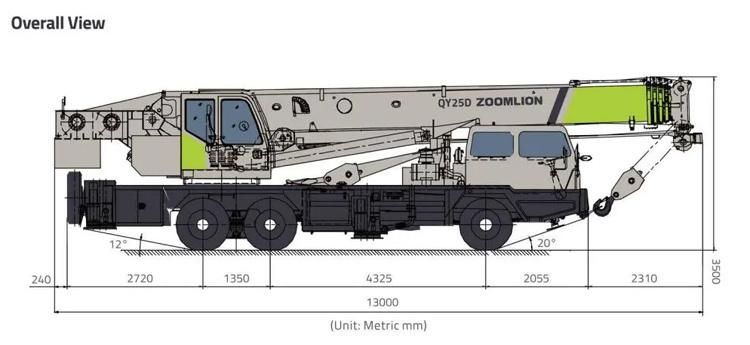

• Specification：13000*2550*3500mm
• Trademark：zoomlion
• Origin：Hunan, China
• HS Code：8426990000
• Production Capacity：1000units,Year

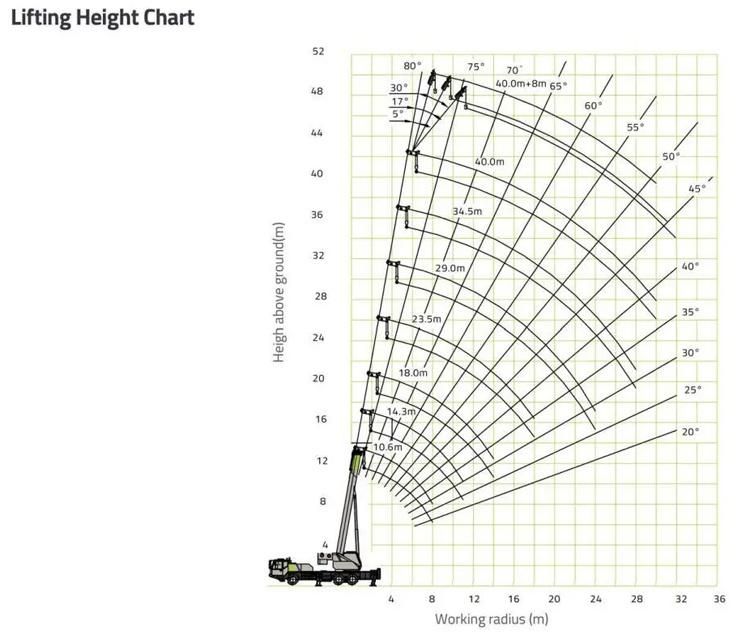

Working performanceMax. rated lifting capacitykg25000 Max. load moment of basic boomkN.m1029 Max. load moment of main boom(fully extended)kN.m564 Max. load moment of basic boomm11.1 Max. lifting height of main boomm40.5These parameters do not include deflection of main boom and jibMax. lifting height of jibm48.5Working speedsMax. hoist rope speed(Main winch)m/min120At the 4th layerMax. hoist rope speed(Auxiliary winch)m/min100At the 2nd layerBoom demrricking up times40 Boom demrricking up times80 Slewing speedr/min0 -2.2 Driving parametersMax. driving speedkm/h78 Max. gradeability%37 Turning diameterm≤22 Min. ground clearancemm235 Oil consumption per hundred kilometersL35 MassDeadweight in driving conditionkg32400 Complete vehicle kerb masskg32270 Front axle loadkg6500 Rear axle loadkg25900 DimensionsOverall dimensions(L×W×H)mm13000×2550×3500 Outrigger spread(L)m5.36 Outrigger spread(W)mFully extended:6.1,
Intermediately extended:4.2 Tail slewing radiusmm3385 Main boom lengthm10.6 - 40.0 Boom angle°-2 - 80 jib lengthm8.0 Offset°5,17,30
