• Type：Straight Arm
• Model：Cummins Qsl9
• Rated Power/Revolution Speed：242 Kw,2100rpm
• HVAC in Low Cab：Cooling and Heating
• Swing Speed：1.8 R,Min
• HVAC in up Cab：Cooling and Heating
• Weight：77016kg
• Transport Package：Regular Package
• Specification：15735*3800*3960kg
• Origin：China
• Production Capacity：100

Basic Info.

Type Straight Arm Model Cummins Qsl9 Rated Power/Revolution Speed 242 Kw/2100rpm HVAC in Low Cab Cooling and Heating Swing Speed 1.8 R/Min HVAC in up Cab Cooling and Heating Weight 77016kg Transport Package Regular Package Specification 15735*3800*3960kg Origin China Production Capacity 100

Product Description

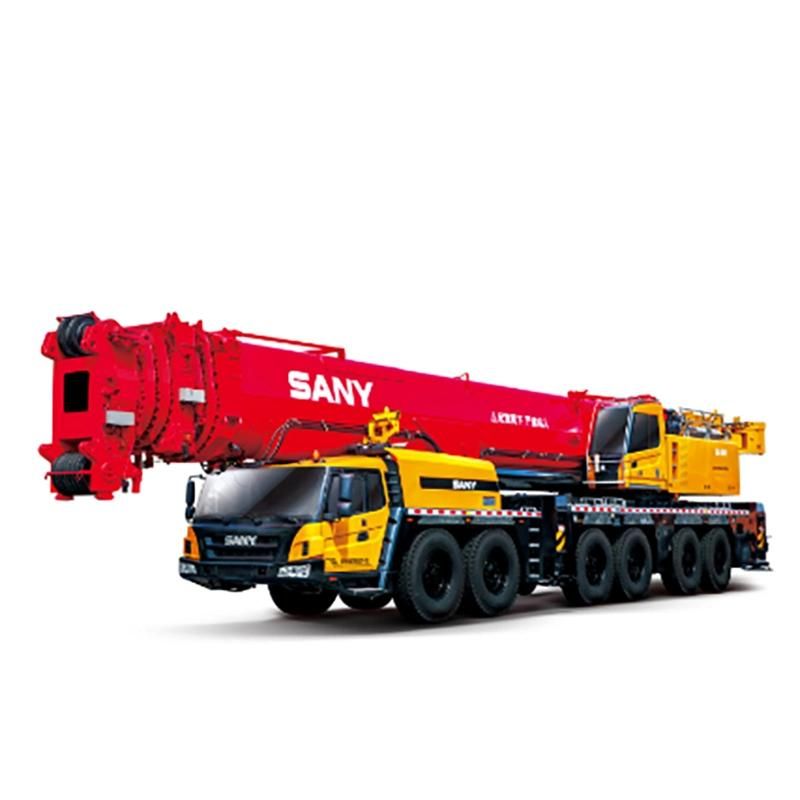

                       SAC3000S 300t All Terrain truck Crane for loading

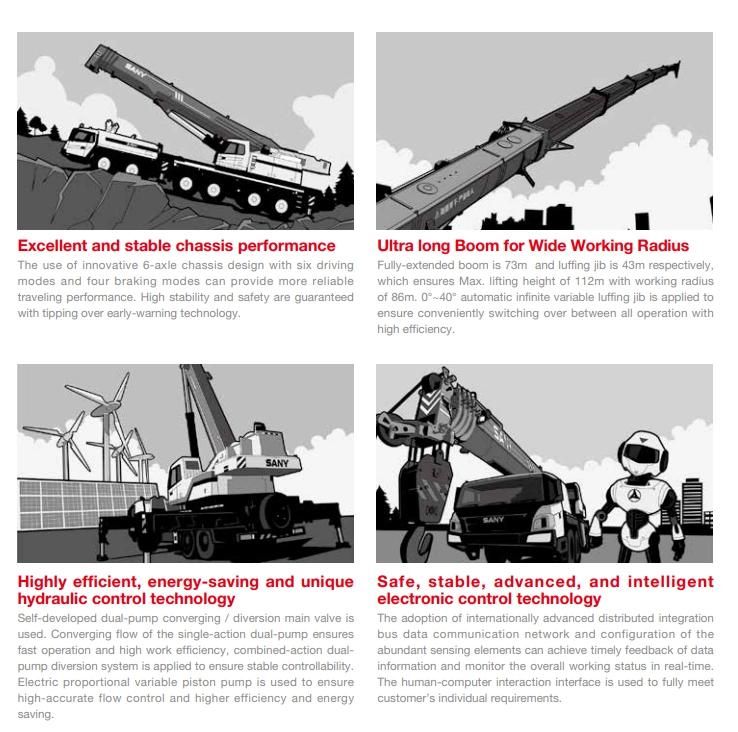

Excellent and stable chassis performance

The use of innovative 6-axle chassis design with six driving modes and four braking modes can provide more reliable traveling performance. High stability and safety are guaranteed with tipping over early warning technology.

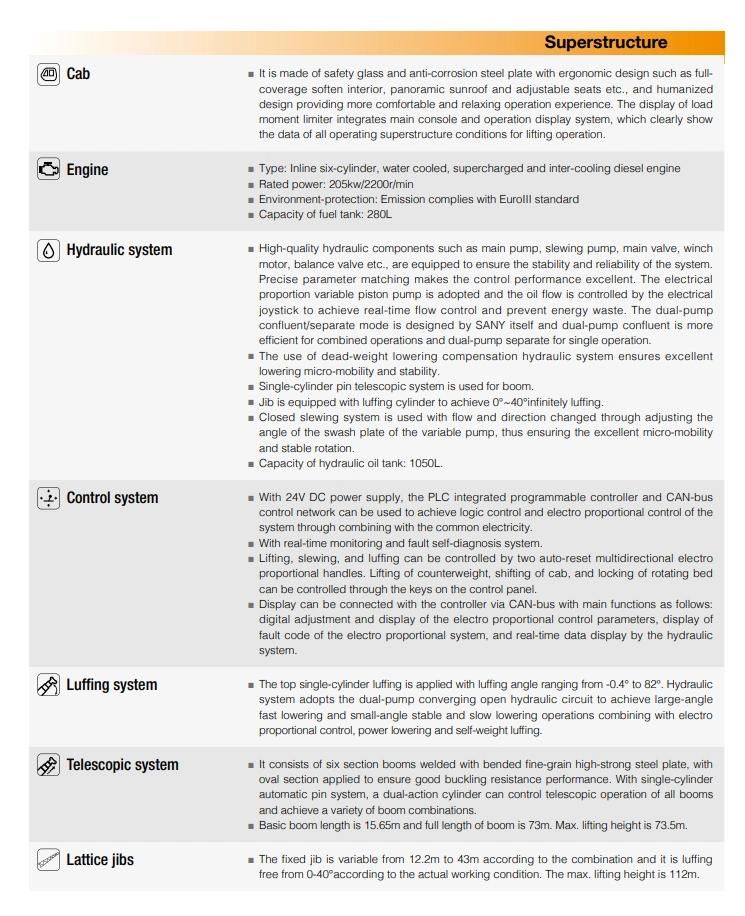

Highly efficient, energy-saving and unique hydraulic control technology

Self-developed dual-pump converging / diversion main valve is used. Converging flow of the single-action dual-pump ensures fast operation and high work efficiency, combined-action dual- pump diversion system is applied to ensure stable controllability. Electric proportional variable piston pump is used to ensure high-accurate flow control and higher efficiency and energy saving.

Ultra long Boom for Wide Working Radius

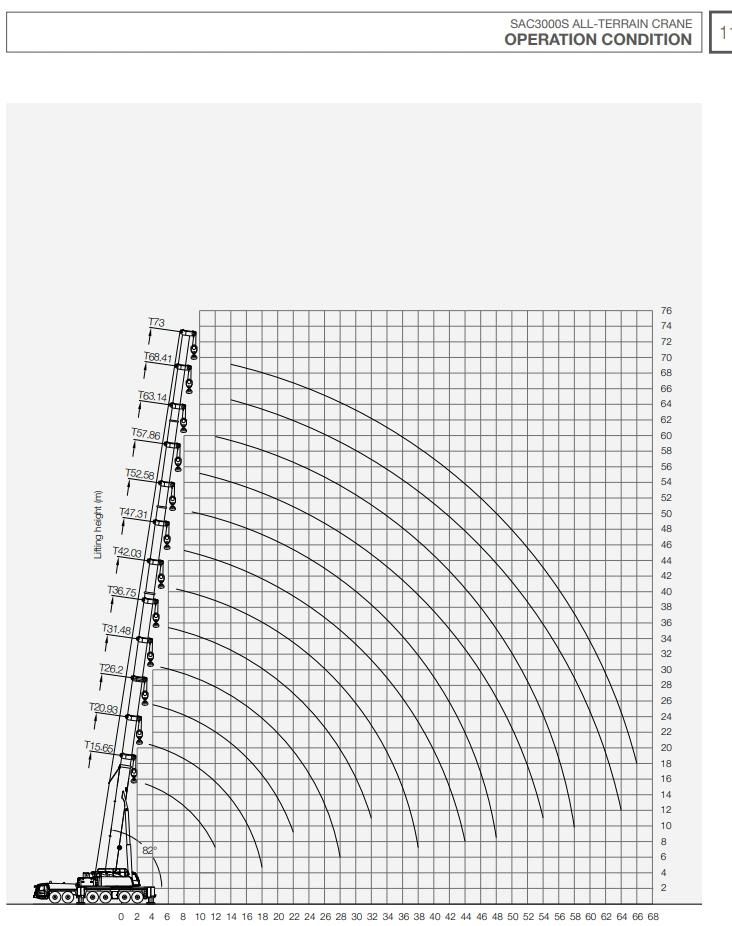

Fully-extended boom is 73m and luffing jib is 43m respectively, which ensures Max. lifting height of 112m with working radius of 86m. 0°~40° automatic infinite variable luffing jib is applied to ensure conveniently switching over between all operation with high efficiency.

Safe, stable, advanced, and intelligent electronic control technology

The adoption of internationally advanced distributed integration bus data communication network and configuration of the abundant sensing elements can achieve timely feedback of data information and monitor the overall working status in real-time. The human-computer interaction interface is used to fully meet customer's individual requirements.
