• Model NO.：ZTC700V552
• Type：Straight Arm
• Outriggers：6.05m 7.8m
• Overall Dimensions(L×w×h)：14500*2800*3850mm
• Transport Package：Nude, Roro
• Specification：70t truck crane
• Trademark：ZOOMLION
• Origin：Hunan, China
• HS Code：8426120000
• Production Capacity：10000 Units, Year

Basic Info.

Model NO. ZTC700V552 Type Straight Arm Outriggers 6.05m 7.8m Overall Dimensions(L×w×h) 14500*2800*3850mm Transport Package Nude, Roro Specification 70t truck crane Trademark ZOOMLION Origin Hunan, China HS Code 8426120000 Production Capacity 10000 Units/ Year

Product Description

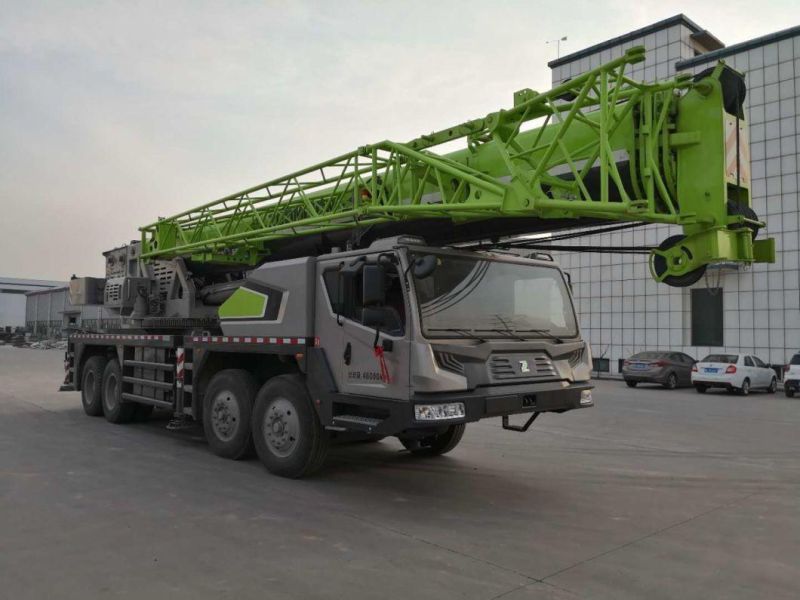

Truck Crane 70t ZOOMLION Brand New ZTC700V552 Mobile Crane

ZTC700V5 truck crane is one of Zoomlion 4.0 products. The product is a five-arm truck crane with full rotation, telescopic boom type and hydraulic proportional control. The main arm adopts the industry-leading plate head, which has strong self-weight and light bearing capacity.
The chassis adopts a self-made full-driving four-axle special chassis, national V emission, 8 × 4 drive, which meets the requirements of G-type vehicles, and the transition is efficient and convenient.
Configure multi-directional safety valves, sensors, lights, etc. to ensure product safety and reliability.
Equipped with intelligent energy-saving system, low fuel consumption in driving operation, and the application of intelligent platform, product monitoring and management is simple and efficient.

Strong performance Boom
The industry's longest five-section 47m "U" -shaped main boom, with comprehensive lifting performance leading the industry tonnage-level products
Precise and stable Operation
The professional slow-speed function is customized for the operation, the minimum stable speed of rotation is 0.1 ° / s, and the minimum stable speed of lifting is 2.5m / min to meet the precise lifting operation;
SUV Travelling in the crane
Low-speed and high-torque transmission system for construction machinery, with strong power and a maximum gradeability of 46%;
Meet the requirements of Class G vehicles, and the driving passability is better.
Energy saving and environment protection
The intelligent multi-power mode energy-saving system has an average fuel consumption of 4.0L / h and a comprehensive fuel saving of 20%;
Intelligent communication
The remote information platform moves the vehicle information to a remote location and realizes a full range of information management through mobile phone apps.


Maximum rated total lifting weight kg	70000
Maximum lifting moment of basic arm kN.m	2646
Maximum lifting moment of longest main arm kN.m	1288
Lifting height of basic arm m	13.4
Maximum boom height m	47.7
Maximum lifting height of jib m	63.8
Maximum speed of single rope (main winch) m / min	125
Maximum speed of single rope (secondary winch) m / min	110
Boom boom time s	55
Boom extension time s	120
Rotation speed r / min	0~1.7
Maximum driving speed km / h	85
Maximum grade                     %	46
Minimum turning diameter m	≤24
Minimum ground clearance mm	305
Fuel consumption per hundred kilometers L	45
Traveling weight (total mass) kg	46000
Vehicle kerb weight kg	45805
Front axle load kg	20000
Rear axle load kg	26000
Dimensions (L × W × H) mm	14500×2800×3850
Longitudinal distance of outrigger m	6.05
Outrigger lateral distance m	Full 7.8
Tail radius of gyration mm	4200
Main arm length m	12.1~47.0
Boom elevation angle °	-2~80
Jib length m	9.5,16.0
Mounting angle of jib	0 ,15,30
