Qy25V531.5 25ton Crane for Sale Zoomlion Truck Crane
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service:After Sales Service
- Warranty:1 Year
- Certification:ISO9001
- Condition:New
- Maximum Lifting Height:>40m
- Maximum Lifting Weight:25ton
Base Info
- Model NO.:QY25V531.5
- Shaft Number:2
- Crane Jib:Two-Arm
- Type:Straight Arm
- Deadweight in Driving Condition:29400kg
- Engine:Weuchai
- Max. Gradeability:34%
- Transport Package:Node Package
- Specification:12510*2500*3455mm
- Trademark:ZOOMLION
- Origin:China Hunan
- HS Code:8401200000
- Production Capacity:1000
Description
ItemUnit Value Remarks Working
performance Max. rated lifting capacity kg 25000 Max. load moment of basic boom kN.m 950 Max. load moment of main boom(fully extended) kN.m 525 Max. lifting height of main boom m 38.7 These parameters do not include deflection of main boom and jib Max. lifting height of jib m 46.58 Working
speeds Max. hoist rope speed(Main winch) m/min 135 At the 3rd layer Max. hoist rope speed(Auxiliary winch) m/min 100 At the 3rd layer Boom derricking up time s 40 Boom derricking up time s 120 Slewing speed r/min 2.6 Driving
parameters Max. driving speed km/h 72 Max. gradeability % 34 Min. turning diameter m ≤20 Min. ground clearance mm 235 Limits for exhaust pollutants and smoke Comply with related standards GB3847-2005 GB17691-2005 National stage III Oil consumption per hundred kilometers L 38 Mass Deadweight in driving condition kg 29400 Complete vehicle kerb mass kg 29270 Front axle load kg 6370 Rear axle load kg 22900 Dimensions Overall dimensions(L×W×H) mm 12510×2500×3455 Outrigger spread(L) m 5.15 Outrigger spread(W) m 6.1 Main boom length m 10.3-38.5 Boom angle ° -2-80 jib length m 8 Offset ° 0,30 Chassis Model ZLJ5323JQZ Type II Code: ZLJ5323JQZV3 Engine Model kw/r/min WP6.240 Rated power n.m/r/min 176/2300 Max. output torque 900/1400 - 1600

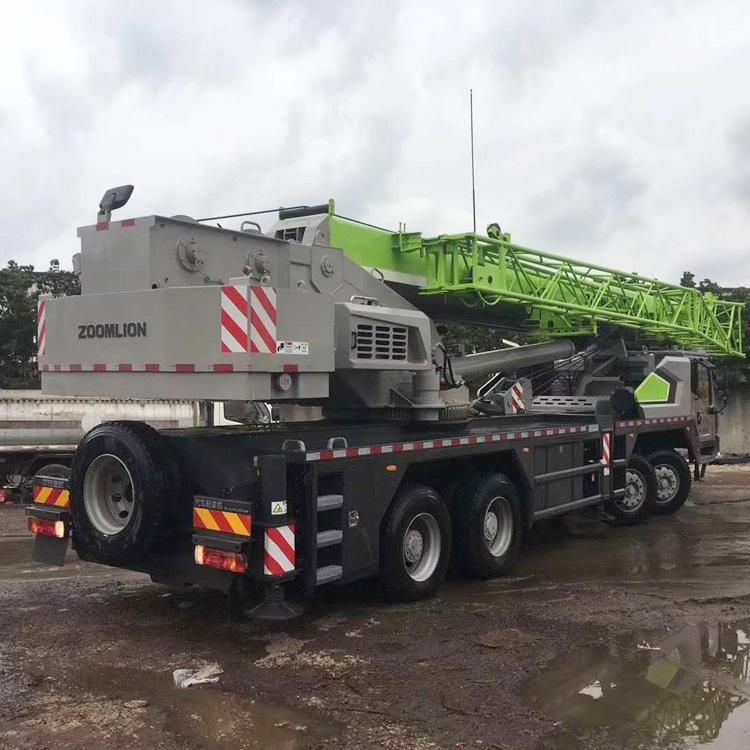

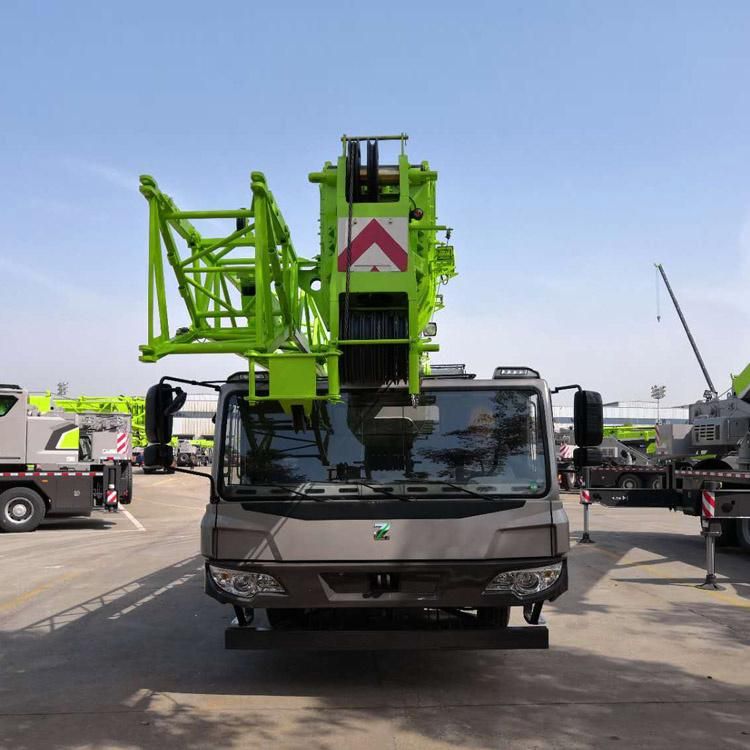

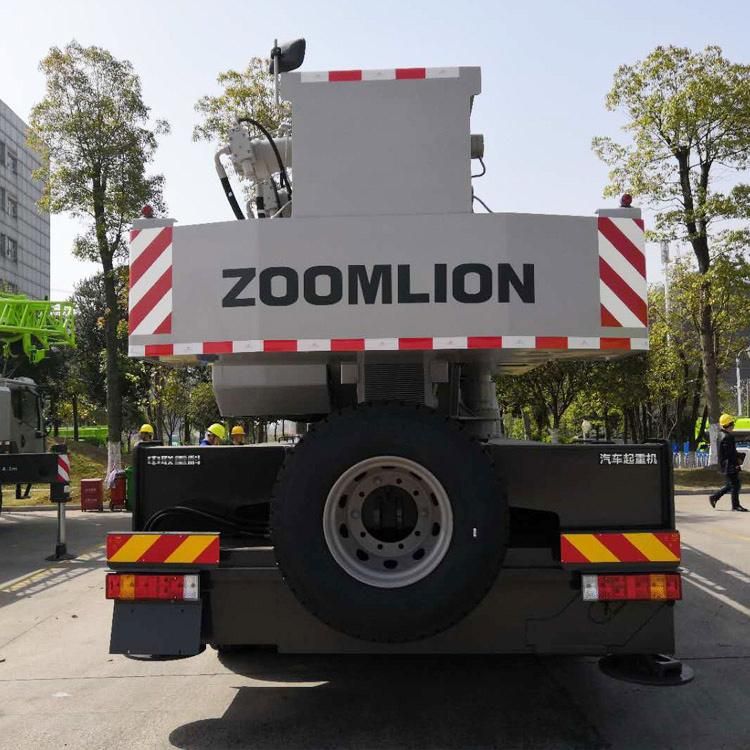

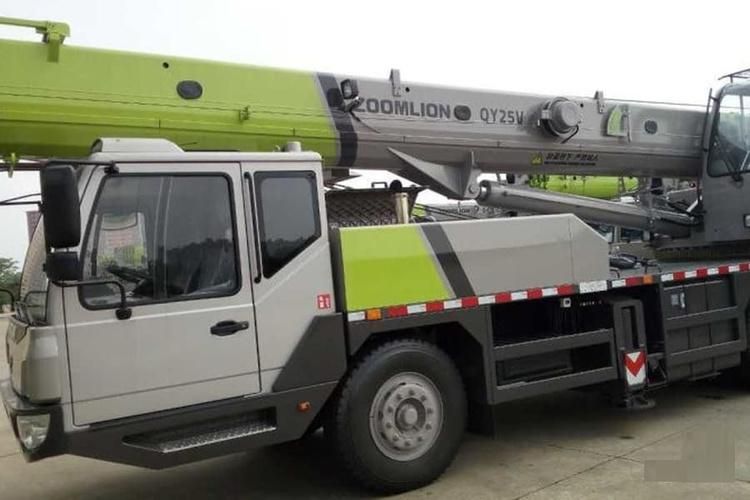

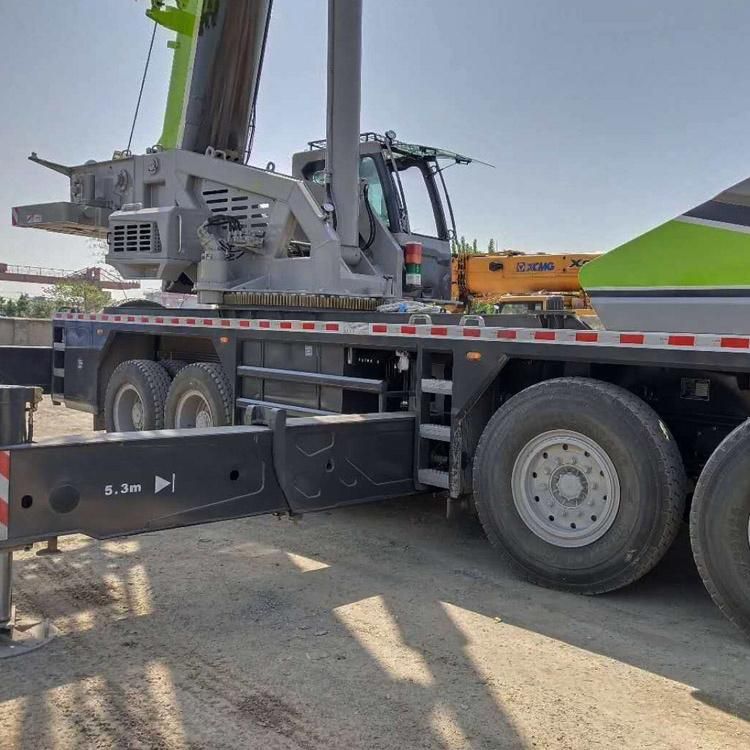

Product Pictures
