75 Ton Mobile Boom Truck Crane Qy75K Price

Evangel Industrial (Shanghai) Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：64.5m
  • Maximum Lifting Weight：75 Ton
  • Shaft Number：4
  • Crane Jib：Five-Arm

Base Info

  • Model NO.：QY75K
  • Type：Straight Arm
  • Engine Model：D10.38A-40
  • Rated Power：276,2200kw,(R,Min)
  • Engine Rated Torque：1500,1100~1600n.M,(R,Min)
  • Weight：48000kg
  • Minimum Turning Diameter：20m
  • Transport Package：Bulk
  • Specification：14650*2800*3880mm
  • Origin：Jiangsu, China
  • Production Capacity：100set,Month

Description

DimensionUnitQY75Overall lengthmm1460Overall widthmm2800Overall heightmm3880Weight  Total weight in travelkg48000Front axle load(1,2)kg12000Rear axle load(3,4)kg12000Power  Engine model D10.38A-40Engine rated powerkW/(r/min)276/2200Engine rated torqueN.m/(r/min)1500/1100~1600Travel  Max. travel speedkm/h80Min. turning diameterm20Min. ground clearancemm427Approach angle°19Departure angle°15Max. grade ability%37Fuel consumption for 100kmL48Main performance  Max. rated total lifting capacityt75Min. rated working radiusm3Turning radius at turntable tailm3.482Max. lifting torquekN.m2969Base boomm12.6Fully extended boomm47Fully extended boom+ jibm64.5Longitudinal outrigger spanm6.4Lateral outrigger spanm7.6Working speed  Boom luffing times25Boom full extension times180Max. swing speedr/min≥2.0Max. speed of main winch (single rope) (no load)m/min≥110Max. speed of aux. winch (single rope) (no load)m/min≥110

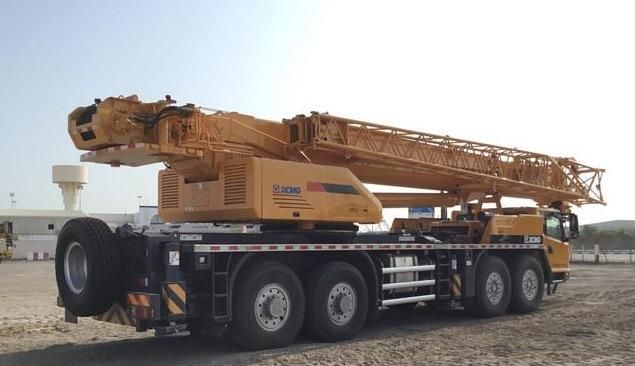

75 Ton Mobile Boom Truck Crane Qy75K Price

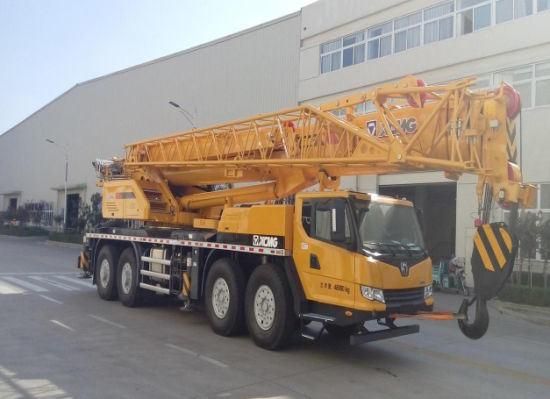

75 Ton Mobile Boom Truck Crane Qy75K Price

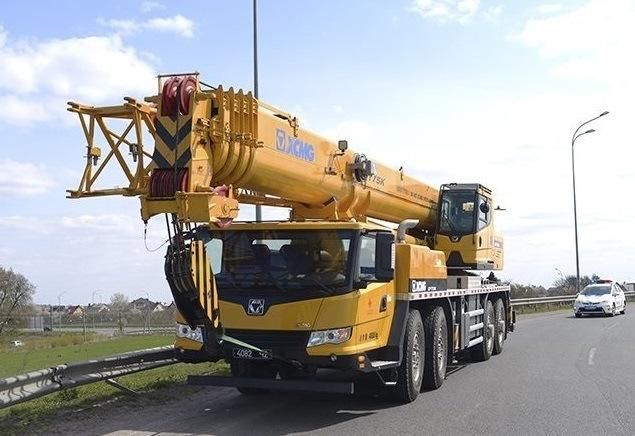

75 Ton Mobile Boom Truck Crane Qy75K Price

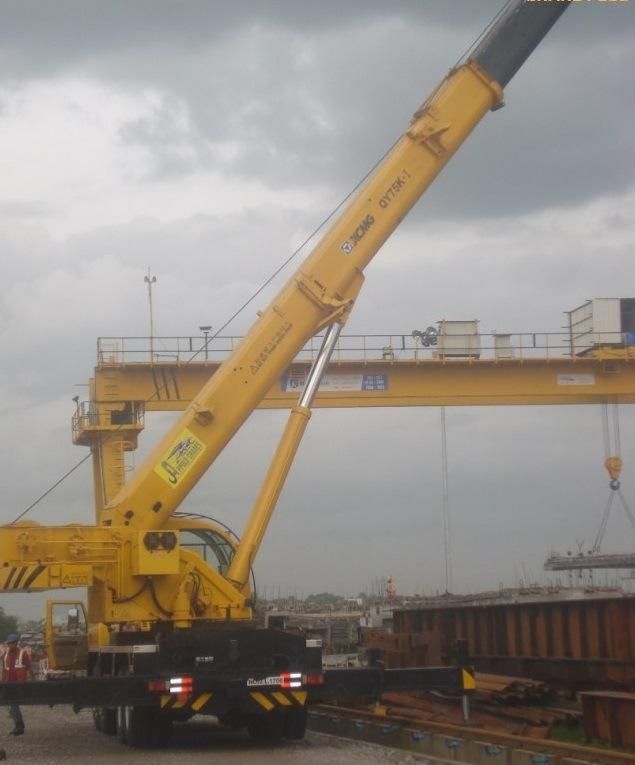

75 Ton Mobile Boom Truck Crane Qy75K Price
