• Model NO.：RT100
• Type：Straight Arm
• Wheel Base：4600 mm
• Max. Travel Speed：24,15 Km,H
• Outrigger Spread (L×w)：8000X7900 mm
• Swing Speed：0-1.5 R,Min
• Complete Vehicle Mass：65000 Kg
• Main Boom Length：10800-34000 mm
• Jib Length：10000-17000 mm
• Warranty：1 Year
• Transport：Bulk Vessel
• Transport Package：Nude Package
• Specification：14247x3620x3960 mm
• Trademark：Zoomlion
• Origin：China
• HS Code：87059091
• Production Capacity：10000

 ItemUnitWork performanceMax. rated lift capacity × work radiuskg.m100000×3.0Max. load moment of basic boomkN.m3339Max. load moment of fully extended main boomkN.m1388Max. lift height of fully extended main boomm45.6Max. lift height of jibm63DimensionsOverall dimensions(L×W×H)mm14247×3620×3960Outrigger spread (L×W)mm8000×7900Main boom length (Fully retracted fully extended)mm10800-34000Jib length (Jib section 1,jib sections 1+2)mm10000-17000Boom angle°-3 - 78Swing range°360       360° unlimited swing(Full range)Work SpeedsMax. hoist rope speed (Main winch)m/min126Min. boom extend times170Min. boom retract times158Min. boom derrick up times82Min. boom derrick down times69Swing speedr/min0-1.5Hydraulic systemRated work pressureMPa30Rated work oil flowL/min500Hydraulic oil tank capacityL1200MassComplete vehicle masskg65000Front axle loadkg33200Rear axle loadkg31800TravelMax. travel speed (Forwarsd / backwards)km/h24/15Wheelbasemm4600Treads (Front / rear)mm2860
Contact Me:Mia Zhu

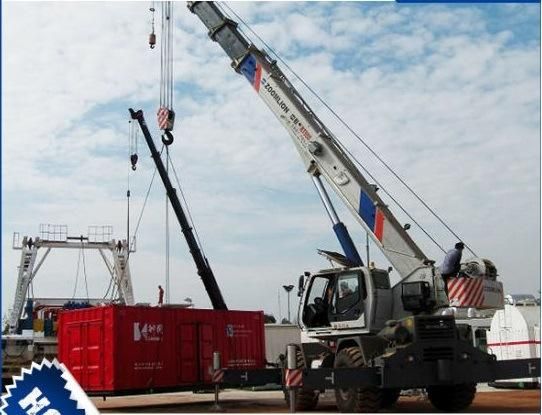

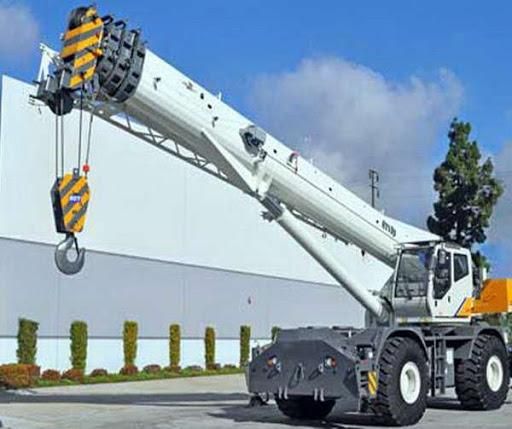

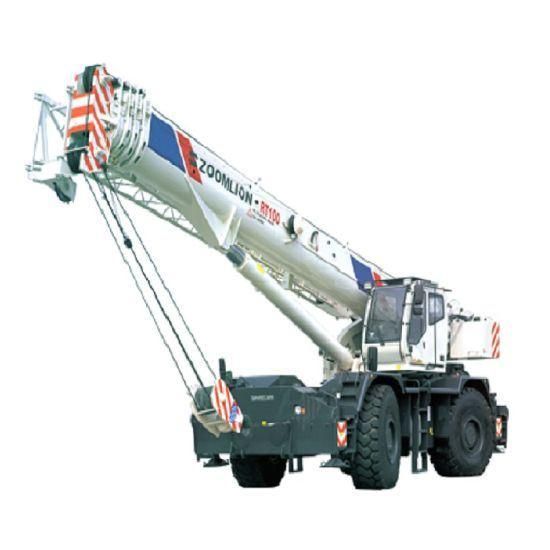

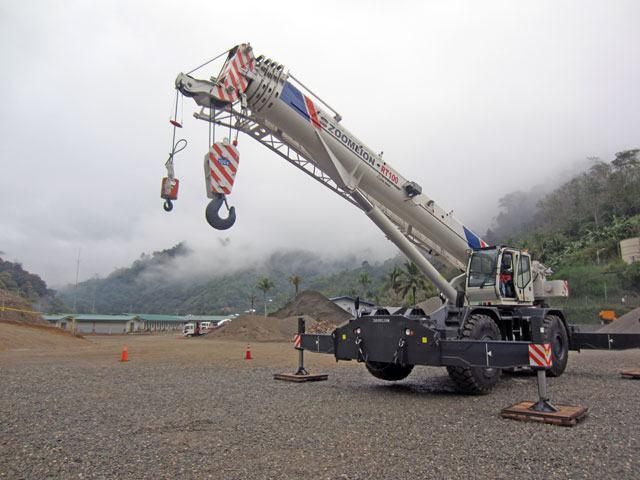

Pictures:
