• Model NO.：ZCC550H-1
• Main Boom Length：13~52m
• Fixed Jib Length：6~15m
• Max. Lifting Capacity of Fixed Jib：5 T
• Slewing Speed：0-3r,Min
• Traveling Speed：0~1.6 Km,H
• Gradeability：40%
• Emission Standard：EU Stage III
• Rated Power：132,2200kw,Rpm
• Transport Package：Nude Package
• Specification：12800*4600(3300)*3120m
• Trademark：Zoomlion
• Origin：China
• HS Code：84264910
• Production Capacity：10000

Item

Value

Remarks

Max. lifting capacity × Radiust ×m

55×3.7

Deadweight with basic boomt

48

Main boom lengthm

13~52

Fixed jib lengthm

6~15

Max. lifting capacity of fixed jibt

5

Offset angle of fixed jib°

10,30

Max. length of main boom with fixed jibm

43+15

Max. speed of single rope on drum

Main winchm/min

120

The 4^th rope layer

Auxiliary winchm/min

120

The 4^th rope layer

Derricking winchm/min

60

The 4^th rope layer

Slewing speedrpm

0~3.0

Traveling speedkm/h

0~1.6

Gradeability%

40

Ground pressureMPa

0.066

Overall dimensions (L×W×H)mm

6800×3300×3020

Engine

Rated power/ rotational speedkW/rpm

132/2200

Max. output torque/ rotational speedNm/rpm

750/1300

Emission standard

EU Stage III

Crawler gauge × ground contact length × track shoe widthmm

2540×4700×760

Crawler carrier retracted

3540×4700×760

Crawler carrier extended

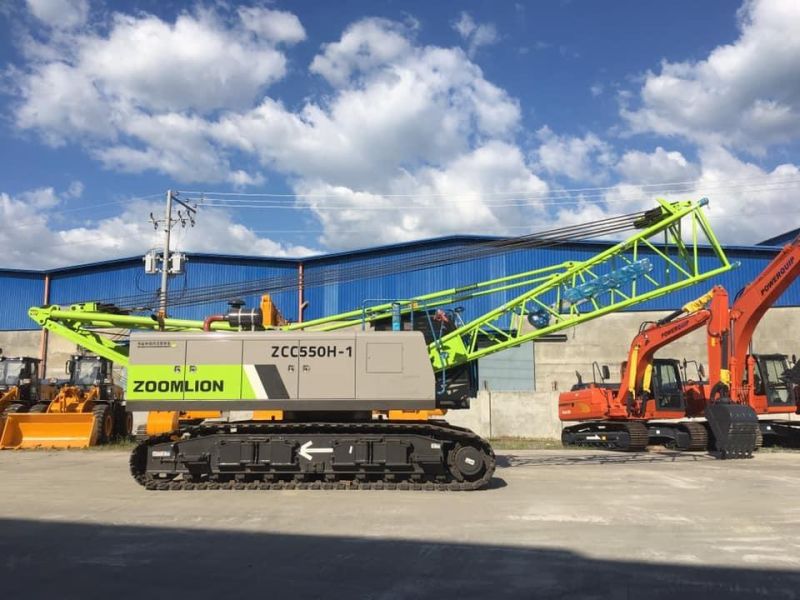

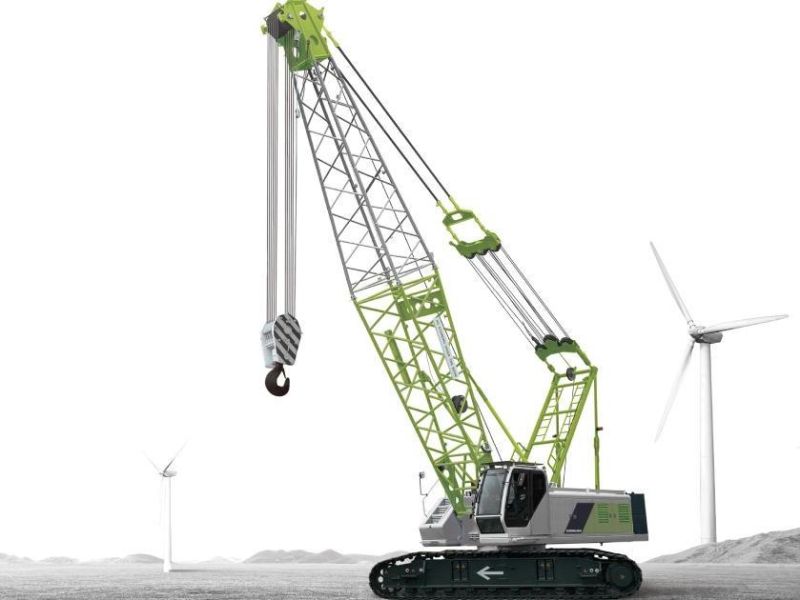

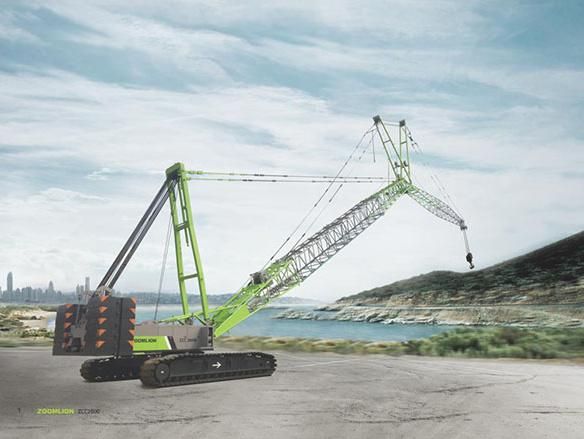

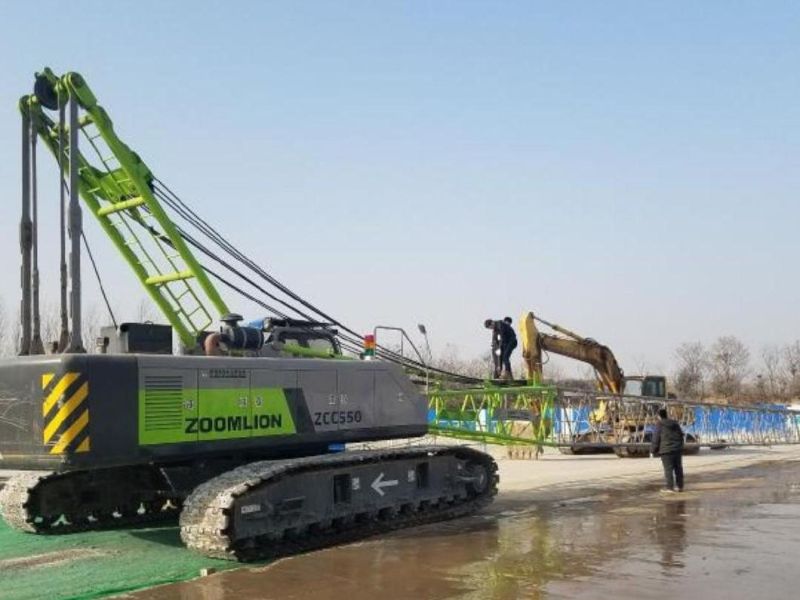

Pictures:
