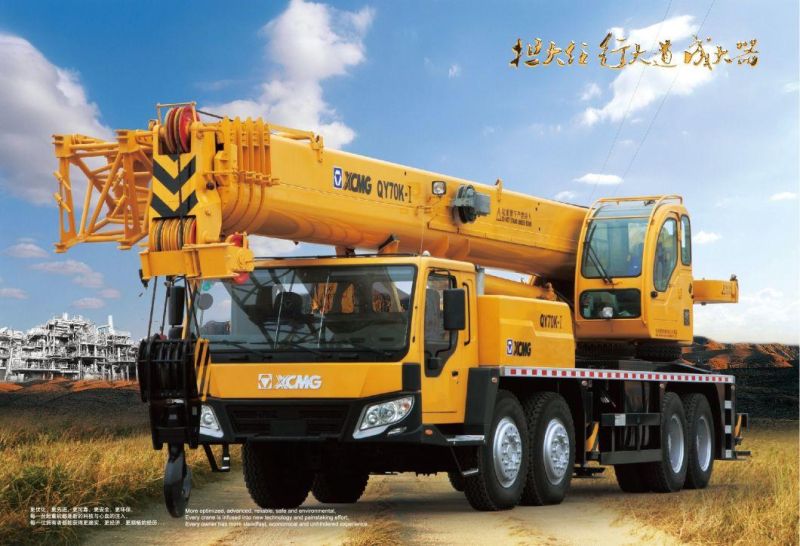

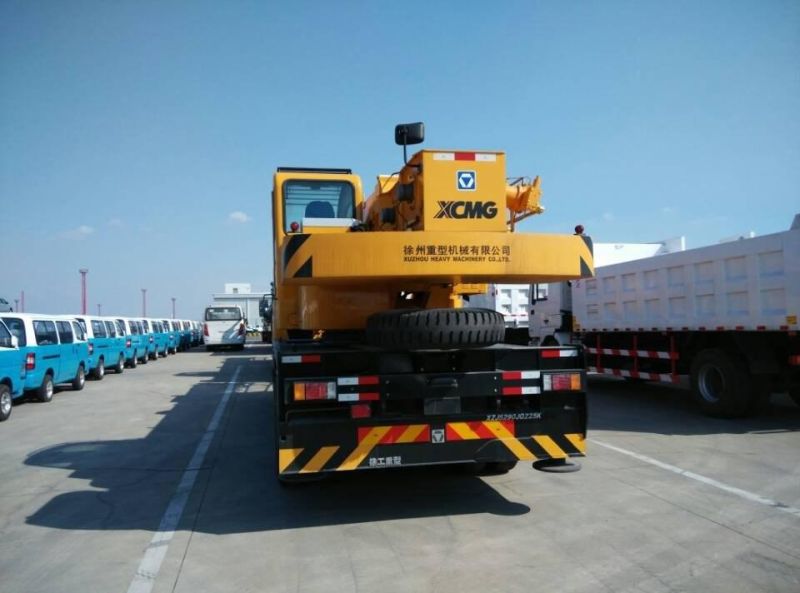

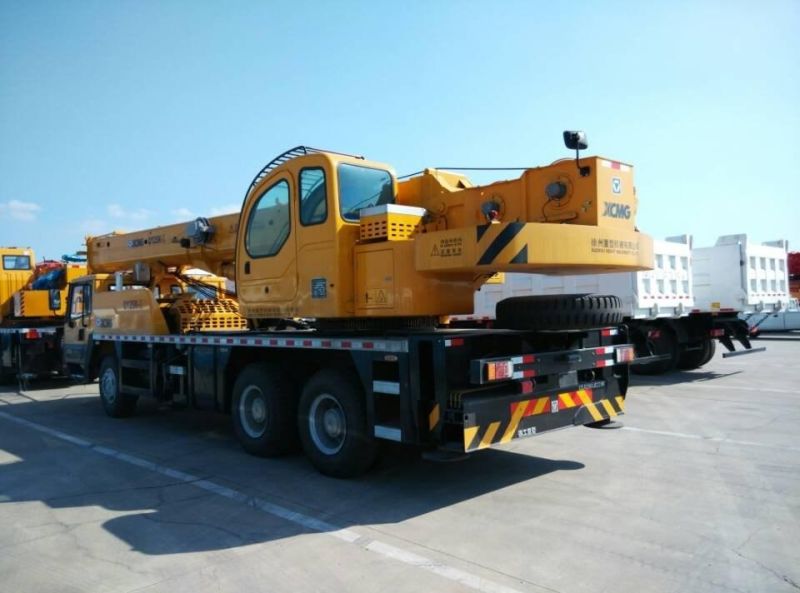

• Model NO.：QY70K-I
• Type：Straight Arm
• Engine Model：Wd615.338(Domestic III)
• Engine Rated Power：276,2200kw,(R,Min)
• Transport Package：Container or RO,RO or Bulk
• Specification：13900 * 2800 * 3575mm
• Trademark：Newindu
• Origin：Jiangsu, China
• HS Code：8705109200
• Production Capacity：5000

DimensionUnitQY70K-IOverall lengthmm13930Overall widthmm2800Overall heightmm3575Weight  Total weight in travelkg43000(without 1t vice counterweight)Front axle loadkg17000Rear axle loadkg26000Power  Engine model  WD615.338(domestic III)Engine rated powerkW/(r/min) 276/2200Engine rated torqueN.m/(r/min)1500/1400 Travel  Max. travel speedkm/h80Min. turning diameterm24Min. ground clearancemm327Approach angle°19Departure angle°13Max. grade ability%40Fuel consumption for 100kmL45Main performance  Max. rated total lifting capacityt70Min. rated working radiusm3000Turning radius at turntable tailm3.55Max. lifting torquekN.m2303Base boomm11.6Fully extended boomm44.5Fully extended boom+ jibm59.5Longitudinal outrigger spanm6.1Lateral outrigger spanm7.3Working speed  Boom luffing times60Boom full extension times ≤150Max. swing speedr/min ≥2.0Max. speed of main winch (single rope) (no load)m/min ≥130Max. speed of aux. winch (single rope) (no load)m/min≥108
