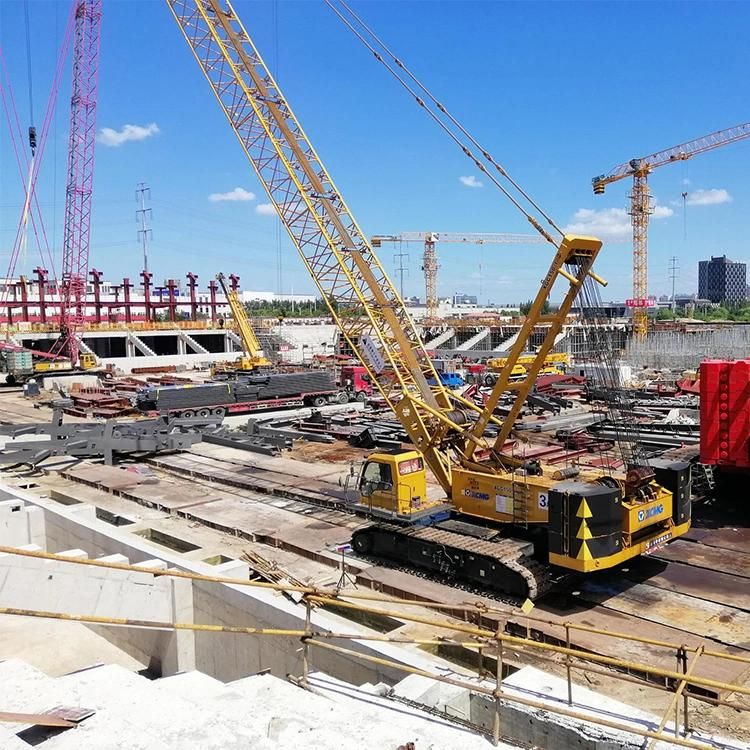

150 Ton Xgc150 Mini Crawler Crane in Rwanda
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Free Spare Parts Against Any Quality Defect
- Max. Lifting Height：81m
- Rated Loading Capacity：150 Ton
- Certification：ISO9001
- Condition：New
- Warranty：1 Year
Base Info
- Model NO.：XGC150
- Lifting Capacity for Basic Boom：150t
- Lifting Capacity for Fixed Jib：24t
- Max. Load Moment：927.4t.M
- Boom Length：18-81m
- Boom Working Condition：30-80degree
- Fixed Jib Length：13-31m
- Winch Mechanism Max Single Line Speed(No：110m,Min
- Boom Elevating Mechanism Max. Single Lin：2X32m,Min
- Max Rope Single Line Pull：13.5t
- Wire Rope Diam：26mm
- Max Slewing Speed：1.5r,Min
- Max Traveling Speed：1.3km,H
- Grade Ability：30%
- Average Ground Pressure：0.102MPa
- Transport Package：Nude Package
- Specification：11.0× 3.0× 3.3m
- Origin：Jiangsu, China
- HS Code：8426990000
- Production Capacity：1000 Set,Sets , Month
Description
XGC150
Items
Unit
Data
Basic boom
T
150
Fixed jib
T
24
Max. load moment
t/m
927.4
Boom length
M
18-81
Boom working condition
.
30-80
Fixed jib working condition
.
30-80
Fixed jib length
M
13-31
Winch mechanism max single line speed(no load, at 5th layer)
m/min
110
Boom elevating mechanism max. single line speed(no load, at 1st layer)
m/min
2×32
Max rope single line pull
T
13.5
Wire rope diam
Mm
26
Max slewing speed
r/min
1.5
Max traveling speed
Km/h
1.3
Grade ability
%
30
Average ground pressure
Mpa
0.102
Engine power
Kw
235
Mass of the vehicle as a whole( including main hook block and 19m boom)
T
154
Max mass of single unit in travel configuration
37
Max dimension of single unit in travel configuration(L×W×H)
t
11.0×3.0×3.3
