• Model NO.：QY100K-I
• Type：Straight Arm
• Max. Lifting Height：59m
• Rated Lifting Moment：1774kn.M
• Span：6*7.2m
• Transport Package：Nude Packing by Roro Shipment
• Specification：100ton
• Trademark：Newindu
• Origin：China
• HS Code：8705109100
• Production Capacity：100sets,Month

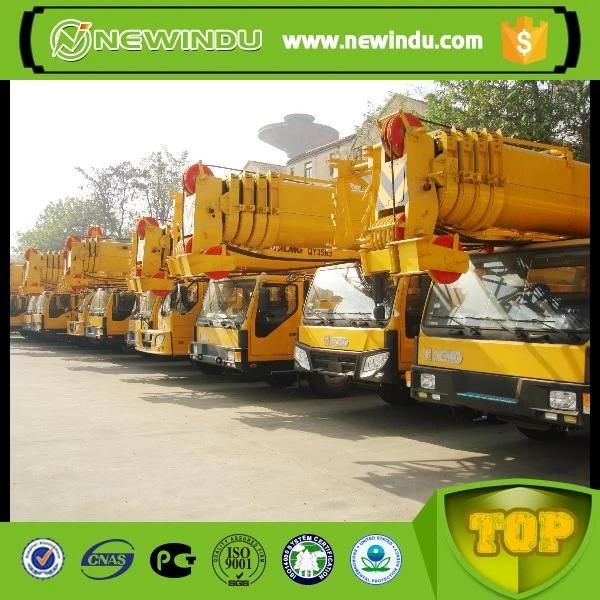

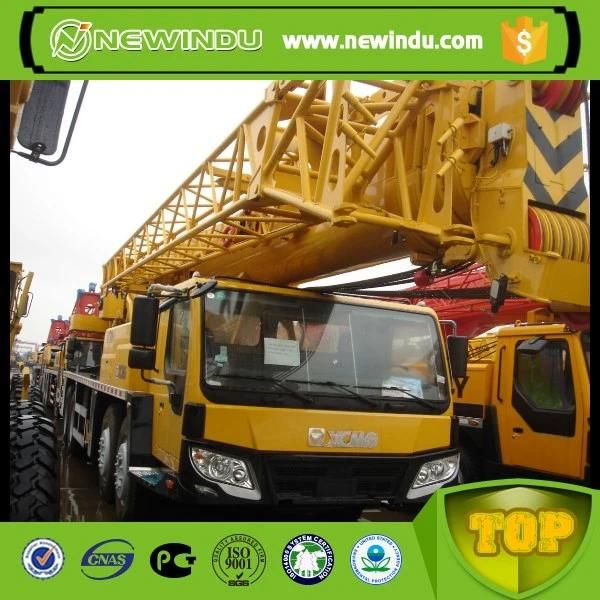

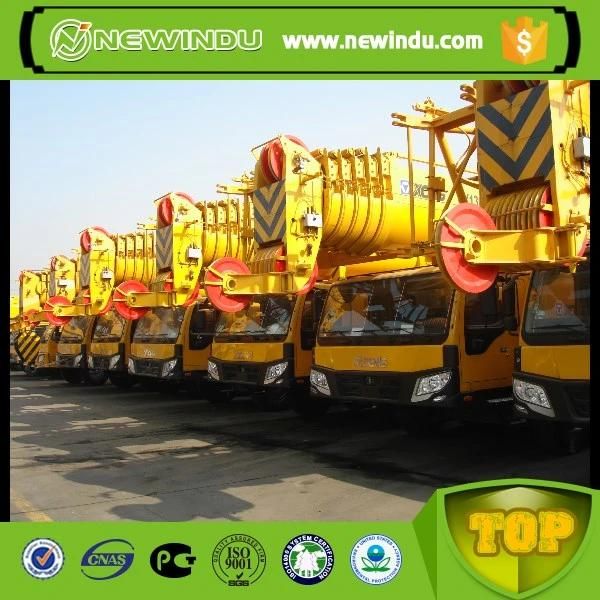

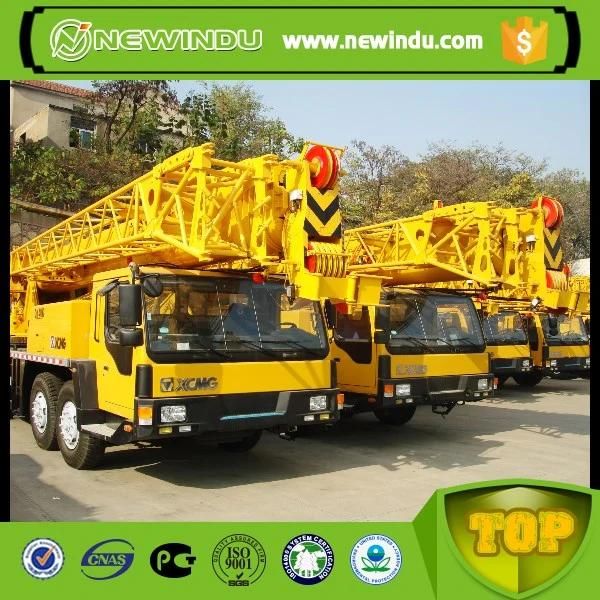

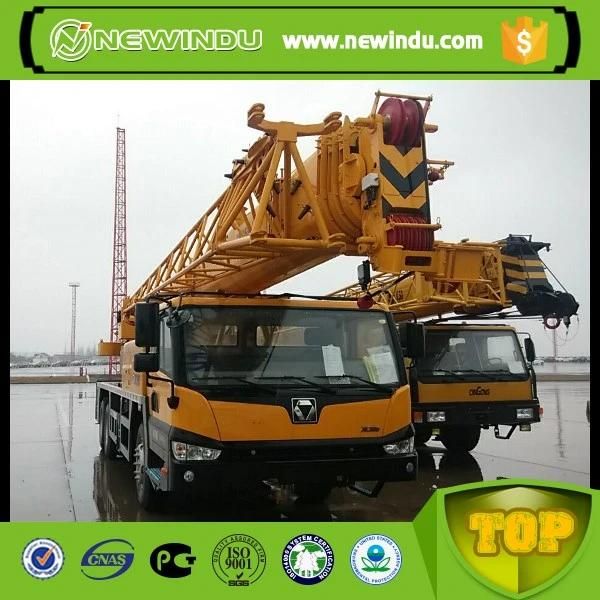

Dimension QY100K-IOverall lengthmm14800/15270Overall widthmm3000Overall heightmm3920Weight  Total weight in travelkg54900/58000Front axle load (axle 1, 2, 3)kg7500/7500/8300(9000)Rear axle load (axle 4, 5)kg12000(13000)12000(13000)/7600(8000)Power  Engine model OM906LA/OM460LAEngine rated powerkW/(r/min)162/2100   360/1800Engine rated torqueN.m/(r/min)1054/1500    2200/1300Travel  Max. travel speedkm/h80Min. turning diameterm24Min. ground clearancemm300Approach angle°20Departure angle°14Max. grade ability%40Fuel consumption for 100kmL75Main performance  Max. rated total lifting capacityt100Min. rated working radiusm3Turning radius at turntable tailm4.51Max. lifting torquekN.m4233Base boomm12.8Fully extended boomm58Fully extended boom+ jibm76.1Longitudinal outrigger spanm7.56Lateral outrigger spanm7.6(5.2)Working speed  Boom luffing times60Boom full extension times600Max. swing speedr/min1.9Max. speed of main winch (single rope) (no load)m/min≥105Max. speed of aux. winch (single rope) (no load)m/min≥105Product photos
