• Model NO.：STC 500
• Type：Straight Arm
• Max. Rated Lifting Capacity：50t
• Boom Length：11.5 M-112.5
• Rated Power/Revolution Speed：250,2100kw, Rpm
• Max.Traveling Speed：85 Km,H
• Wheel Formula：8 × 4
• Transport Package：Regular Package

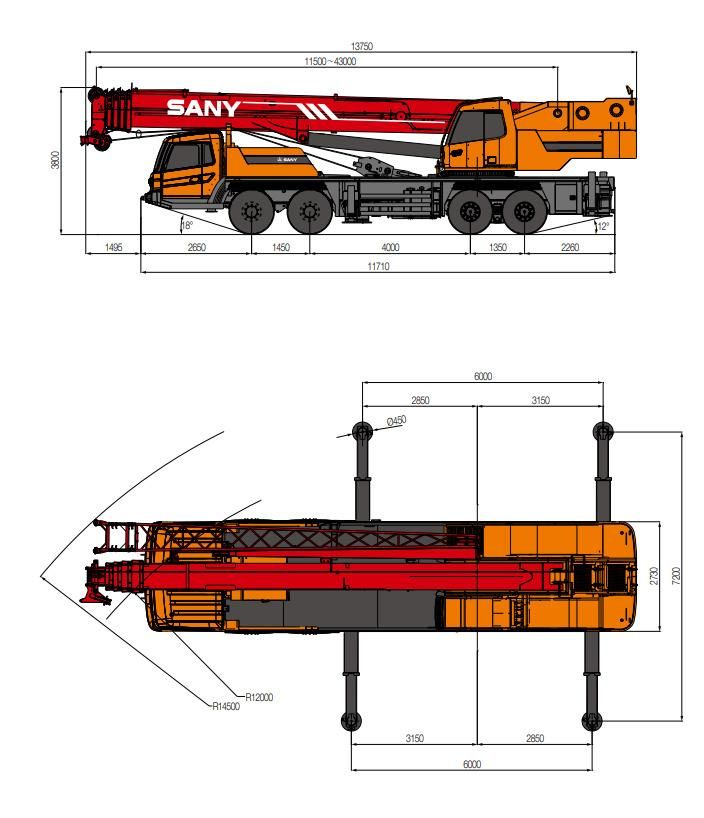

• Specification：13750*2750*3800
• Origin：China
• Production Capacity：50

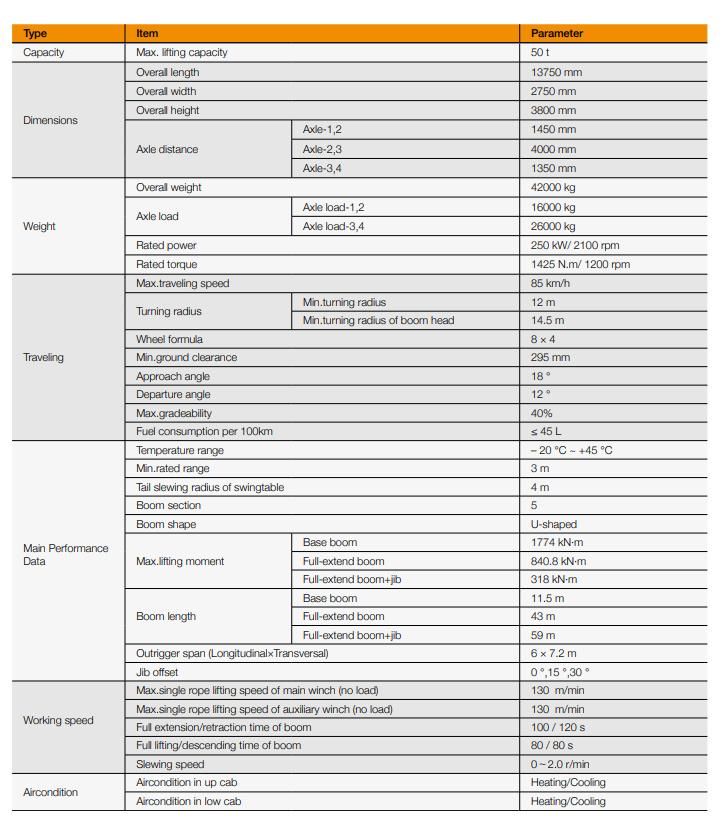

Basic Info.

Model NO. STC 500 Type Straight Arm Max. Rated Lifting Capacity 50t Boom Length 11.5 M-112.5 Rated Power/Revolution Speed 250/2100kw/ Rpm Max.Traveling Speed 85 Km/H Wheel Formula 8 × 4 Transport Package Regular Package Specification 13750*2750*3800 Origin China Production Capacity 50

Product Description

                                 50 tons  truck crane with competitive price


Product Description


  STC500 truck crane is designed with five-section boom that is made of high strength steel structure and optimized U-shaped cross section. Its maximum lifting capacity is 50 ton, full-extended boom length of 43m.

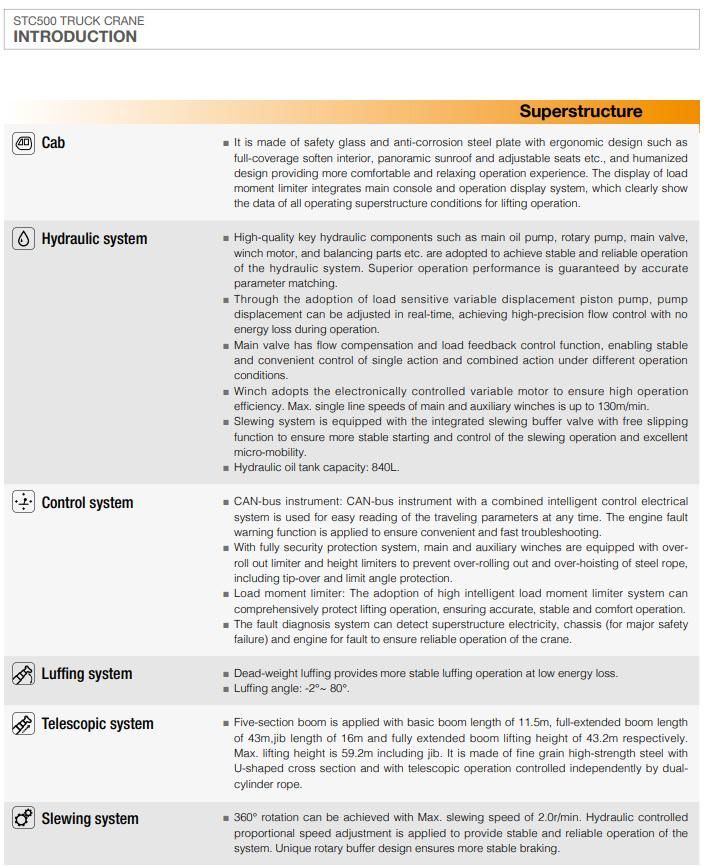

Efficient & Unique Hydraulic System

Load feedback and constant power control of the 50 ton truck crane is applied to provide strong lifting capacity and good micro-mobility. Unique steering buffer design is adopted to ensure stable braking operation.

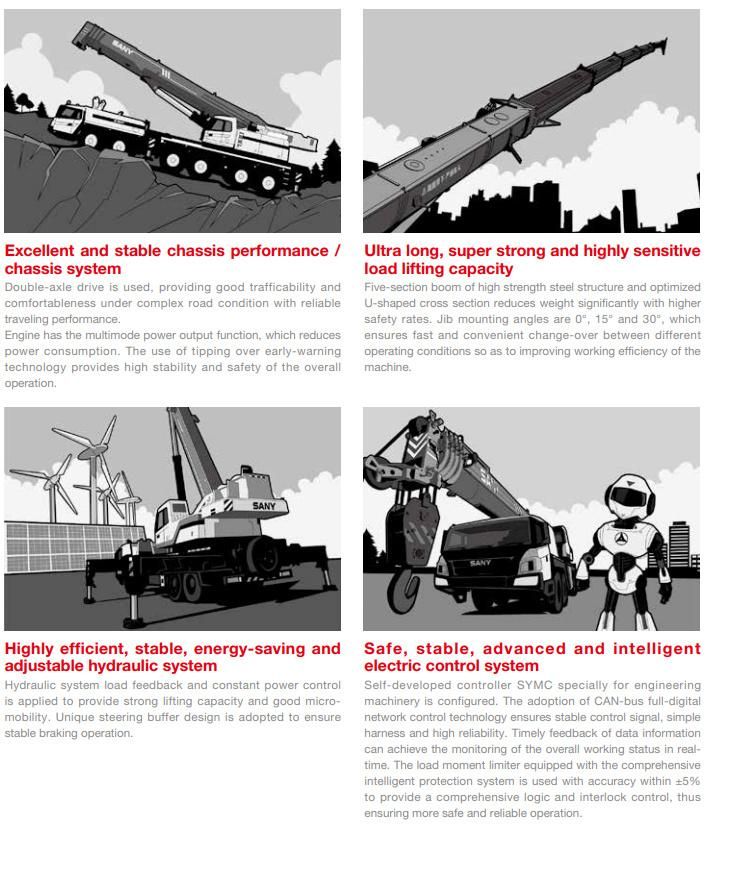

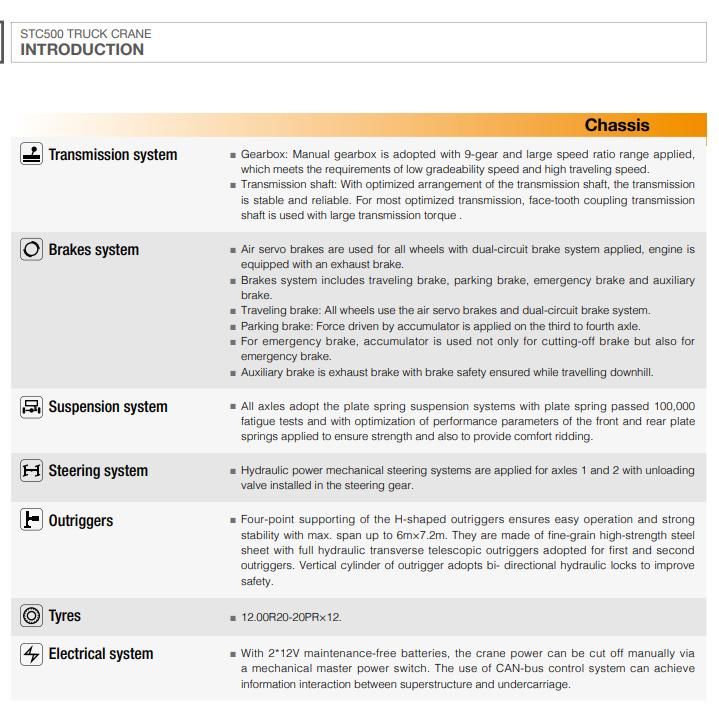

Excellent Traveling Performance

Double-axle drive is used to provide good trafficability and comfortableness under complex road condition; engine has the multimode power output function, which reduces power consumption; the use of tipping over early-warning technology provides high stable and safe operation.

Intelligent Electronic Control

Self-developed controller SYMC special for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.

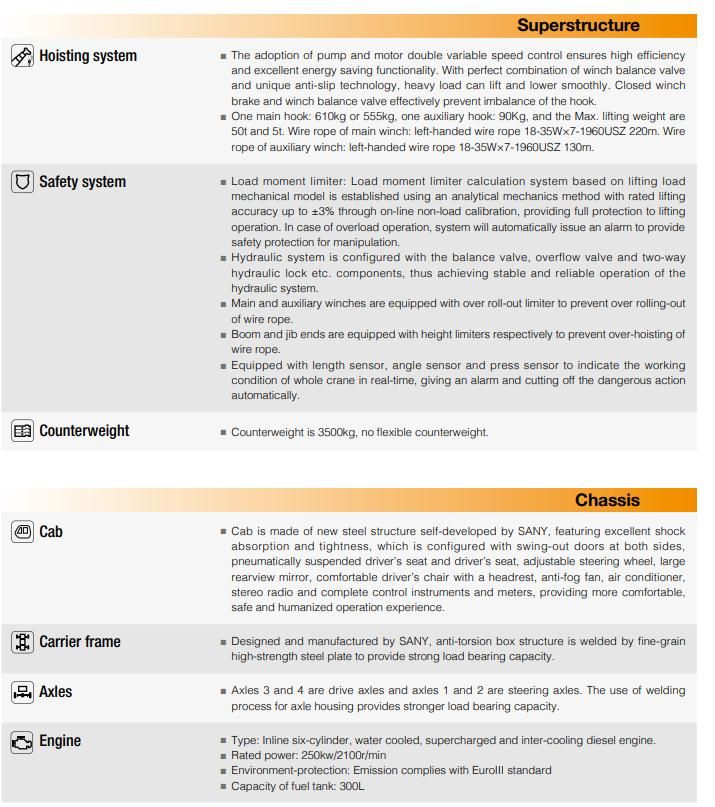

The Load Moment Limiter

Equipped with the comprehensive intelligent protection system is used with accuracy within 5%. The adoption of comprehensive logic and interlock control system ensures more safe and reliable operation.

More Safe Devices

Main and auxiliary winches are equipped with over roll-out limiter to prevent over rolling-out of wire rope.

Boom and jib ends are equipped with height limiters respectively to prevent over-hoisting of wire rope.

Hydraulic system is configured with the balance valve, overflow valve and two-way hydraulic lock etc., to ensure stable and reliable operation.
