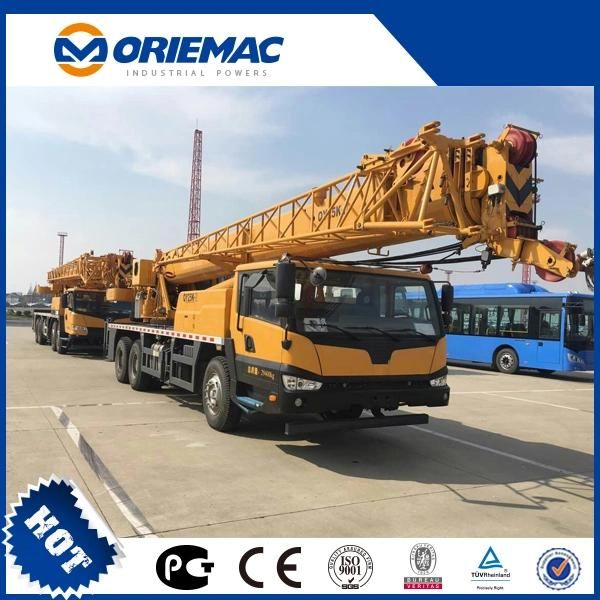

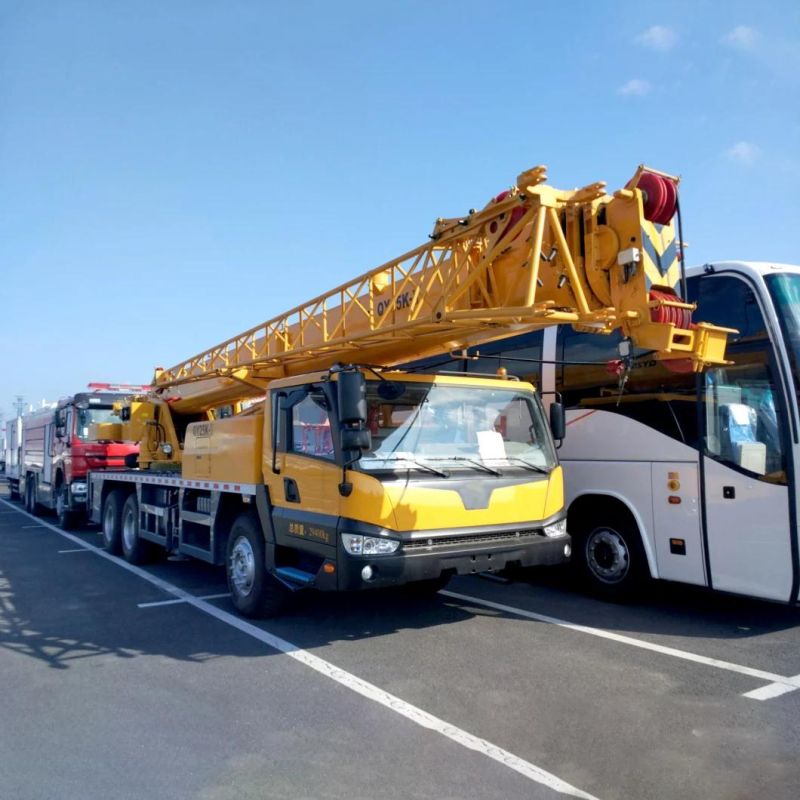

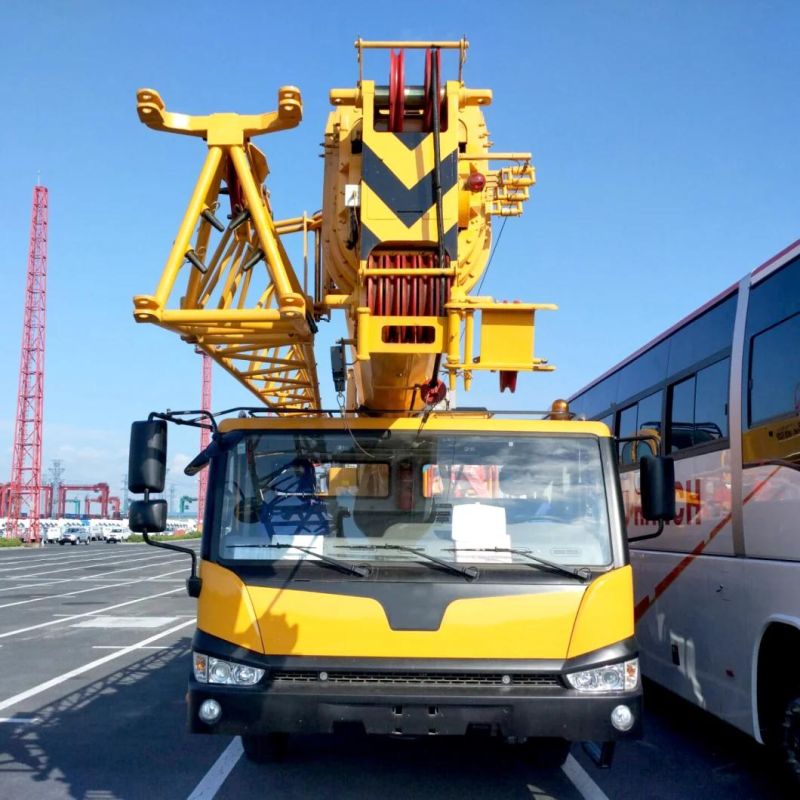

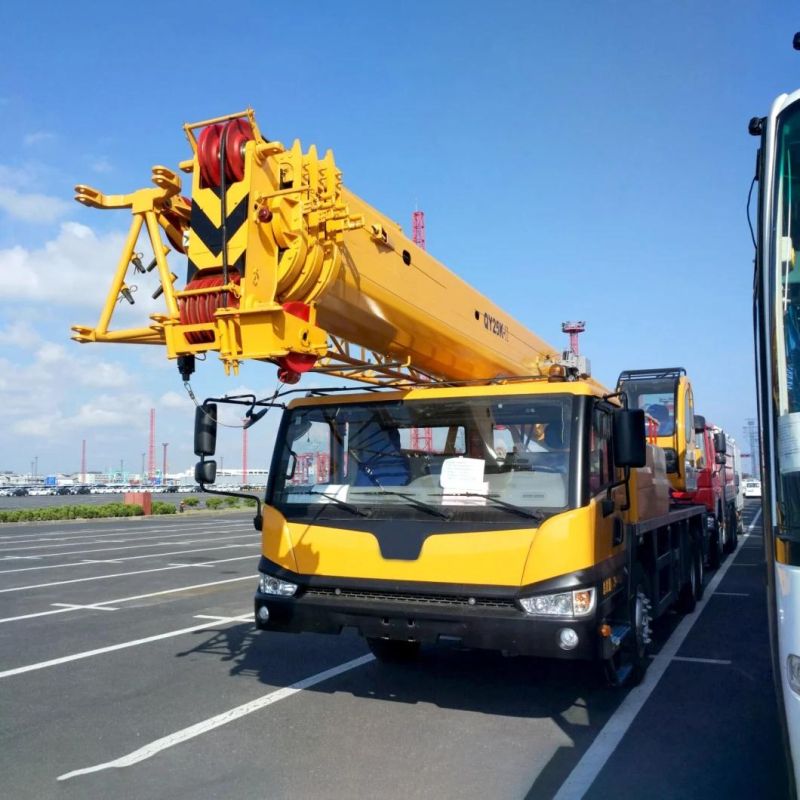

• Model NO.：QY25K-II
• Shaft Number：3
• Crane Jib：Four-Arm
• Type：Straight Arm
• Max.Loading Capacity：25tons
• Export Markets：Global
• Boom Lenght：34 M
• Max. Travel Speed：75km,H
• Boom Type：5 Sections
• Lifting Height：32.5m
• Engine Rated Power：206,2200 213,2200 Kw,(R,Min)
• Transport Package：Nude Package
• Specification：CE, ISO
• Trademark：Oriemac
• Origin：Jiangsu, China
• HS Code：84295100
• Production Capacity：500 Sets,Month

Dimension
Unit
QY25K-II
Overall length
mm
12550
Overall width
mm
2500
Overall height
mm
3380
Weight
Total weight in travel
kg
29400
Front axle load
kg
6200
Rear axle load
kg
23200
Power
Engine model
SC8DK280Q3 / WD615.329(domestic III)
Engine rated power
kW/(r/min)
206/2200   213/2200
Engine rated torque
N.m/(r/min)
1112/1400  1160/1400
Travel
Max. travel speed
km/h
75
Min. turning diameter
m
22
Min. ground clearance
mm
260
Approach angle
°
16
Departure angle
°
13
Max. grade ability
%
30
Fuel consumption for 100km
L
≈37
Main performance
Max. rated total lifting capacity
t
25
Min. rated working radius
mm
3000
Turning radius at turntable tail
m
3.065
Max. lifting torque
kN.m
1000
Base boom
m
10.6
Fully extended boom
m
33
Fully extended boom+jib
m
41.15
Longitudinal outrigger span
m
5.14
Lateral outrigger span
m
6
Working speed
Boom luffing time
s
75
Boom full extension time
s
100
Max. swing speed
r/min
≥2.5
Max. speed of main winch (single rope)
m/min
≥120
Max. speed of aux. winch (single rope)
m/min
≥120
