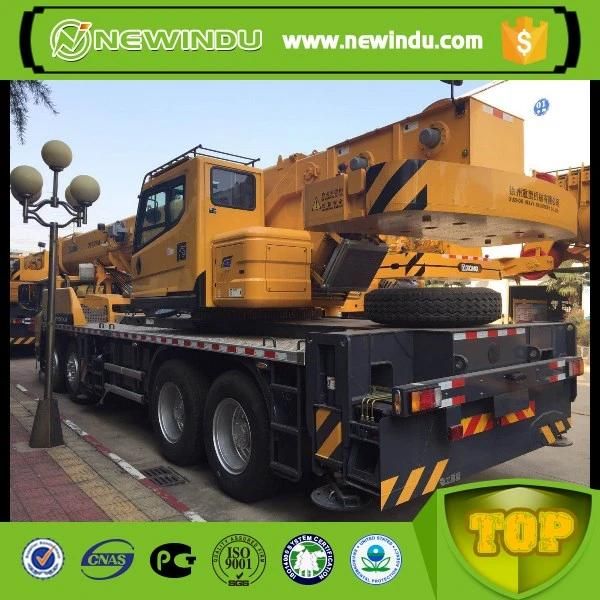

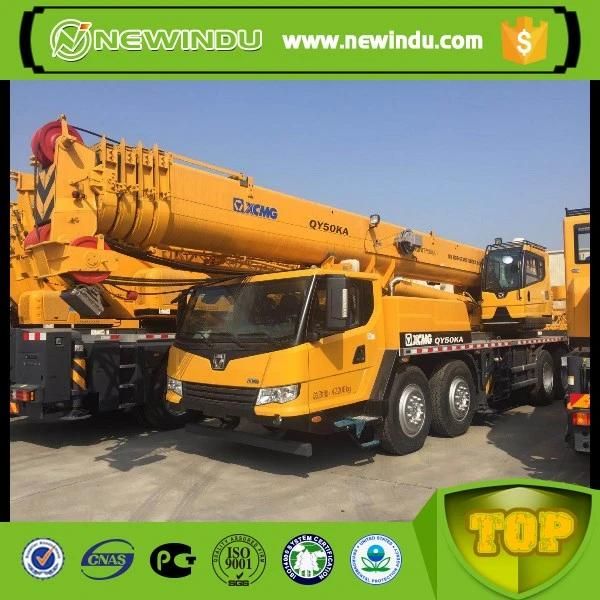

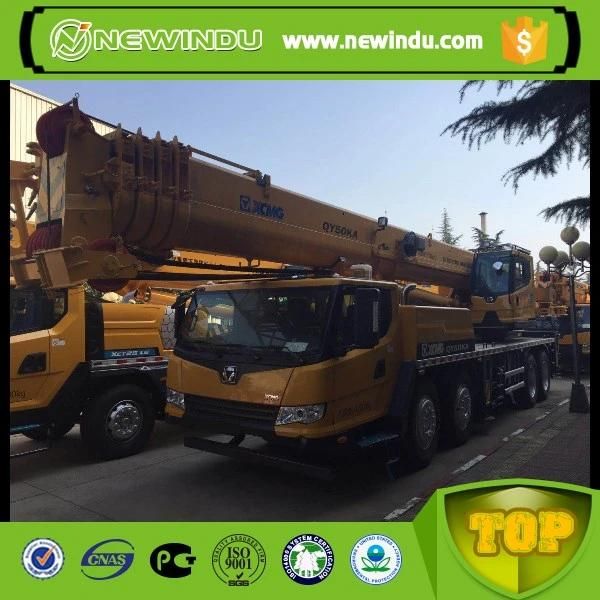

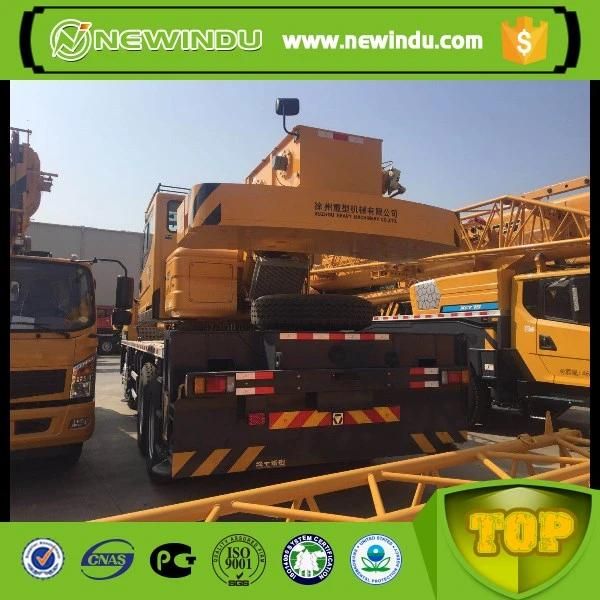

Qy50ka Qy50kd 50 Ton Mobile Truck Lifting Crane Euro 5
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：After Sale Service
- Warranty：One Year Warranty
- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：QY50KA
- Shaft Number：3
- Crane Jib：Four-Arm
- Type：Straight Arm
- Operating Weight：41000kg
- Engine：Wd615.334(Domestic III)
- Max. Travel Speed：75km,H
- Min. Ground Clearance：291mm
- Transport Package：Nude Packing
- Specification：13750x2800x3520mm
- Trademark：NEWINDU
- Origin：China
- HS Code：87051091
- Production Capacity：20units, Month
Description
Dimension
Unit
QY50KA
Overall length
mm
13750
Overall width
mm
2800
Overall height
mm
3520
Weight
Total weight in travel
kg
41000
Front axle load
kg
15000
Rear axle load
kg
26000
Power
Engine model
WD615.334(domestic III)
Engine rated power
kW/(r/min)
247/2200
Engine rated torque
N.m/(r/min)
1350/1400
Travel
Max. travel speed
km/h
80
Min. turning diameter
m
24
Min. ground clearance
mm
291
Approach angle
°
17
Departure angle
°
11
Max. grade ability
%
40
Fuel consumption for 100km
L
45
Main performance
Max. rated total lifting capacity
t
50
Min. rated working radius
m
3
Turning radius at turntable tail
m
3.482
Max. lifting torque
kN.m
1764
Base boom
m
11.3
Fully extended boom
m
42.7
Fully extended boom+ jib
m
57.7
Longitudinal outrigger span
m
5.91
Lateral outrigger span
m
6.9
Working speed
Boom luffing time
s
88
Boom full extension time
s
180
Max. swing speed
r/min
≥2.0
Max. speed of main winch (single rope) (no load)
m/min
≥110
Max. speed of aux. winch (single rope) (no load)
m/min
≥110
