• Model NO.：XGC150
• Shaft Number：3
• Crane Jib：Four-Arm
• Type：Straight Arm
• Operating Weight：24000kg
• Rated Power：179,2200kw,Rpm
• Rated Torque：800 Nm,1400rpm
• Emission Standard：Tier 3
• Transport Package：Nude Packing
• Specification：12300x3360x3300mm
• Trademark：NEWINDU
• Origin：China
• HS Code：87051091
• Production Capacity：20units, Month

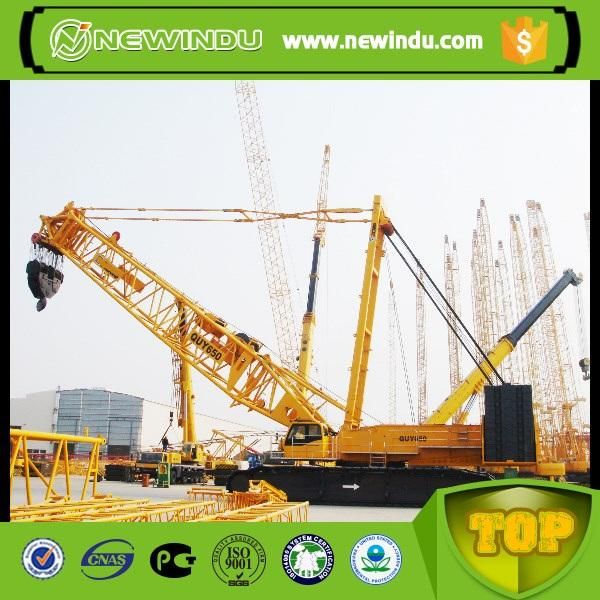

ItemsUnitDataBasic boomT150Fixed jibT24Max. load momentt/m927.4Boom lengthM18-81Boom working condition   .30-80Fixed jib working condition.30-80Fixed jib lengthM13-31Winch mechanism max single line speed(no load, at 5th layer)m/min110Boom elevating mechanism max. single line speed(no load, at 1st layer)m/min2×32Max rope single line pullT13.5Wire rope diamMm26Max slewing speedr/min1.5Max traveling speedKm/h1.3Grade ability%30Average ground pressureMpa0.102Engine powerKw235Mass of the vehicle as a whole( including main hook block and 19m boom)T154Max mass of single unit in travel configuration 37Max dimension of single unit in travel configuration(L×W×H)t11.0×3.0×3.3
