Zoomlion 110 Ton Truck Crane (QY110)

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t
  • Shaft Number：5
  • Crane Jib：Seven-Arm

Base Info

  • Model NO.：QY110
  • Type：Straight Arm
  • Max. Rated Lifting Weight：110 Ton
  • Power Source：Hydraulic
  • Sling Type：Wire Rope
  • Application：Construction Usage
  • Transport Package：Nude Packing
  • Specification：ISO, CE, GHOST
  • Trademark：Zoomlion
  • Origin：Hunan, China
  • HS Code：87051092
  • Production Capacity：5000sets,Month

Description

Working performance1Max. rated lifting weight × working radiuskg.m110000×3.02Max. lifting torque of basic boomkN.m44003Max. lifting torque of longest main boomkN.m18804Max. lifting height of longest main boomm58.55Max. lifting height of jibm77/(85)Dimensions6Outline dimensions (L×W×H)mm14690×3000×38907Distance between outriggers (longitudinal × transversal)mm7670×78008Main boom length (completely retracted - completely extended)m12.8~57.59Jib lengthm1118.6(26.6)10Main boom angle of elevation°-1.5~8211Swing range 360°continuouslyWorking speed12Max.speed of single rope on the drum of main winchm/min11513Boom extension times60014Boom derricking up times8015Swing speedr/min0~1.5Mass16Complete vehicle kerb masskg5470517Front axle loadkg1990018Rear axle loadkg35000Traveling19Max. traveling speedkm/h7820Max. gradeability%4021Min. turn radiusm11.522Min. ground clearancemm280

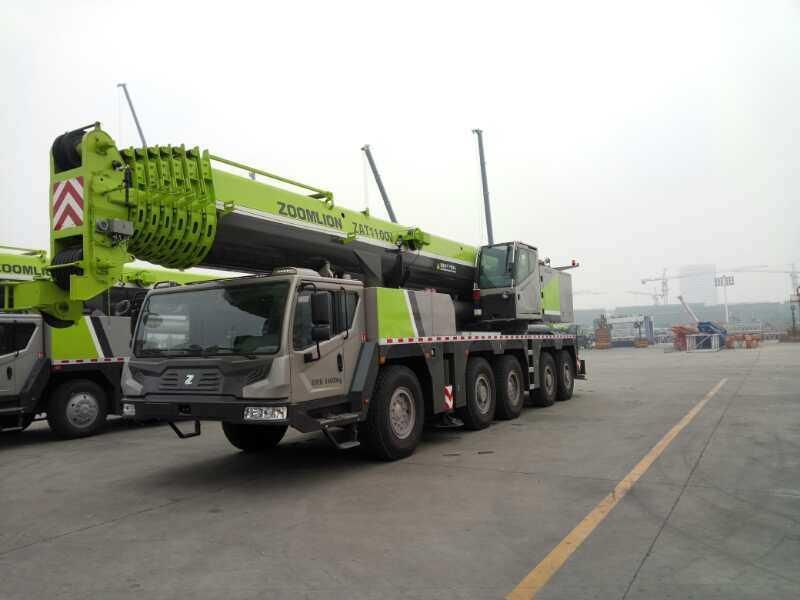

Zoomlion 110 Ton Truck Crane (QY110)

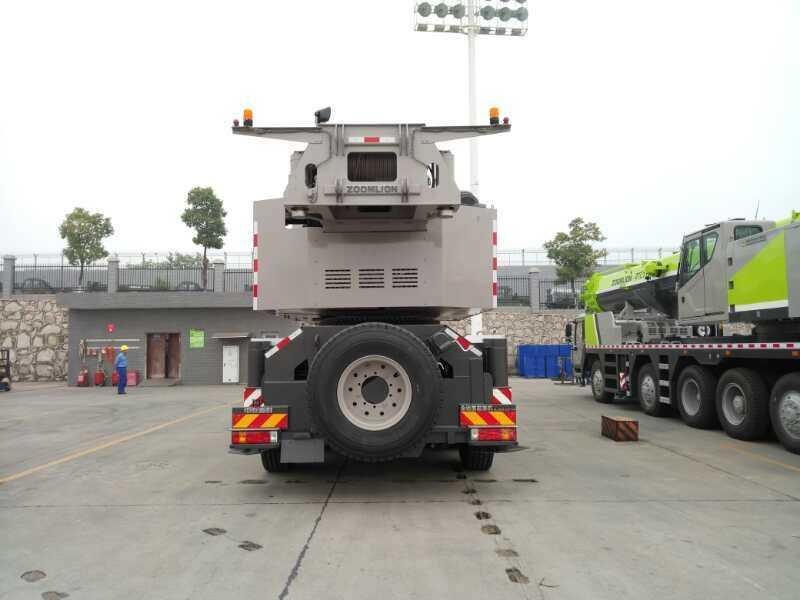

Zoomlion 110 Ton Truck Crane (QY110)
