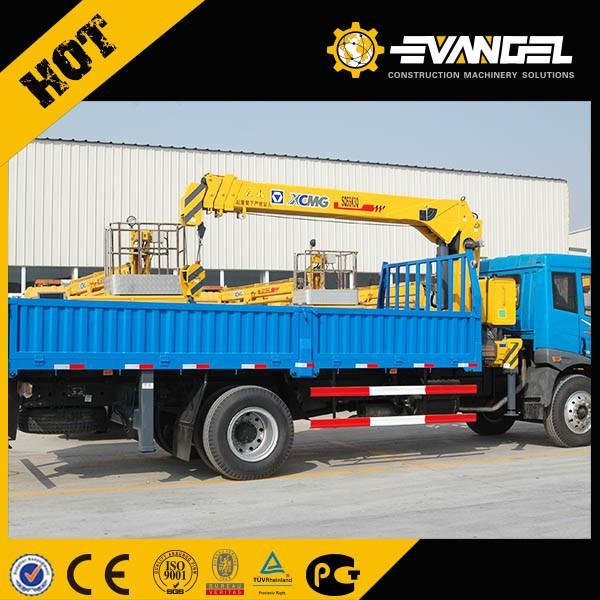

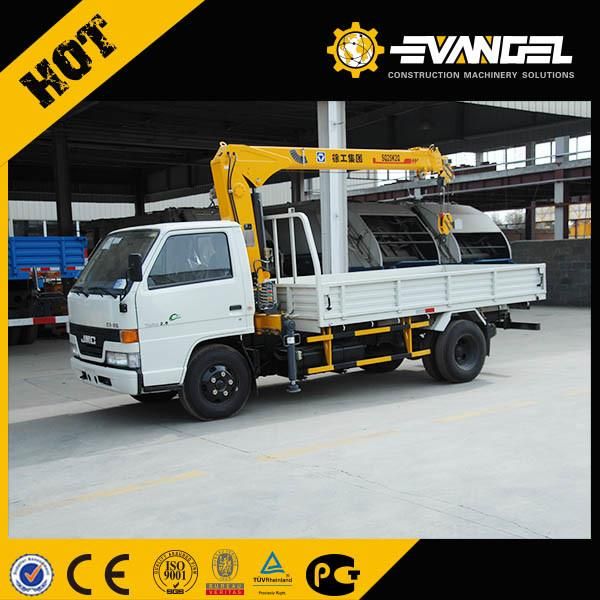

5 Ton Small Telescopic Truck-Mounted Crane

Evangel Industrial (Shanghai) Co., Ltd.

Certification：GS, RoHS, CE, ISO9001
Condition：New
Maximum Lifting Height：10-15m
Maximum Lifting Weight：5-7t
Shaft Number：2
Crane Jib：Two-Arm

Base Info

Model NO.：Truck-Mounted Crane
Type：Straight Arm
Application：Construction Usage, Workshop Usage, Container Usag
Power Source：Hydraulic
Sling Type：Cable
Max Load Moment：1994kn
Gradeability：40%
Fixed Jib Length：9.15~15.25m
Overall Weight：48.5m
Transport Package：Nude
Specification：CE, RoHS, SGS, GMP
Trademark：Evangel
Origin：Jaingsu China
HS Code：84295100
Production Capacity：50, 000 PCS,Year.

Description

All RotationCrane Weight2074/2170kgInstallation Space900mmChoice of ChassisCA1140PK2L3EA80, DFL1140B, EQ1126KJ1, HFC1132KR1K3, LZ1120LAPT, EQ1141NBJ2, EQ5201GFJ6, EQ5201GFJ6, NXG1160D3ZAL1X

SQ2SK1Q Lifting capability diagram

Working radius(m)	2.5	3.62	6.05	8.5
Lifting capacity(kg)	5000	2800	1500	1100

SQ2SK2Q Lifting capability diagram

Working radius(m)	2.5	3.62	6.05	8.5	11
Lifting capacity(kg)	5000	2800	1500	1100	400

5 Ton Small Telescopic Truck-Mounted Crane

5 Ton Small Telescopic Truck-Mounted Crane

5 Ton Small Telescopic Truck-Mounted Crane

5 Ton Small Telescopic Truck-Mounted Crane

5 Ton Small Telescopic Truck-Mounted Crane

5 Ton Small Telescopic Truck-Mounted Crane
