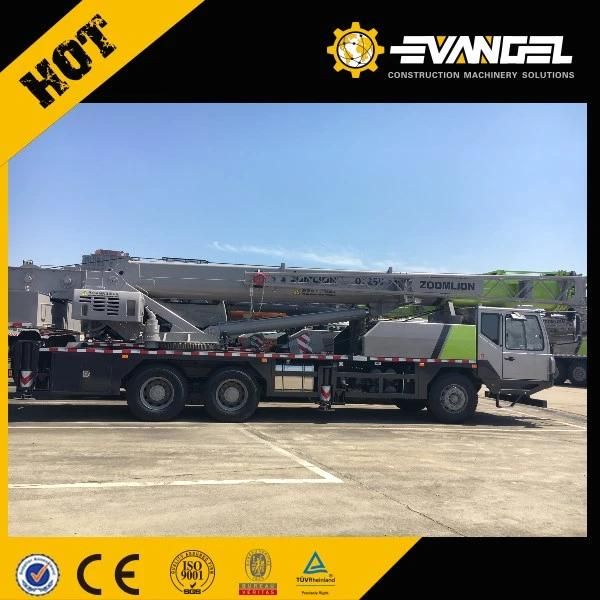

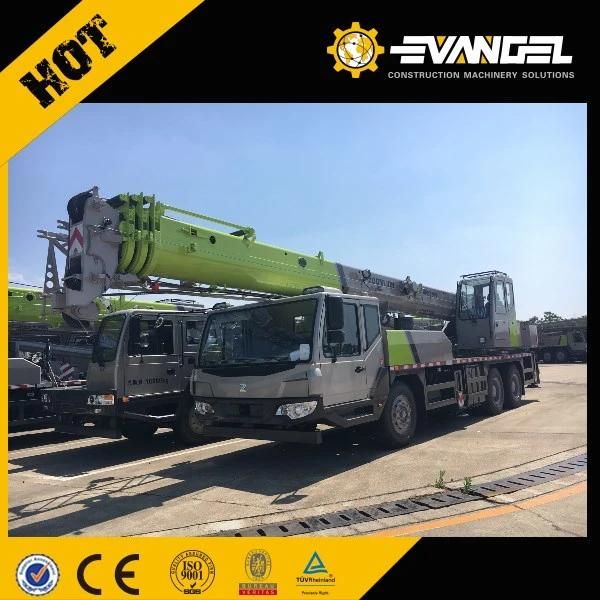

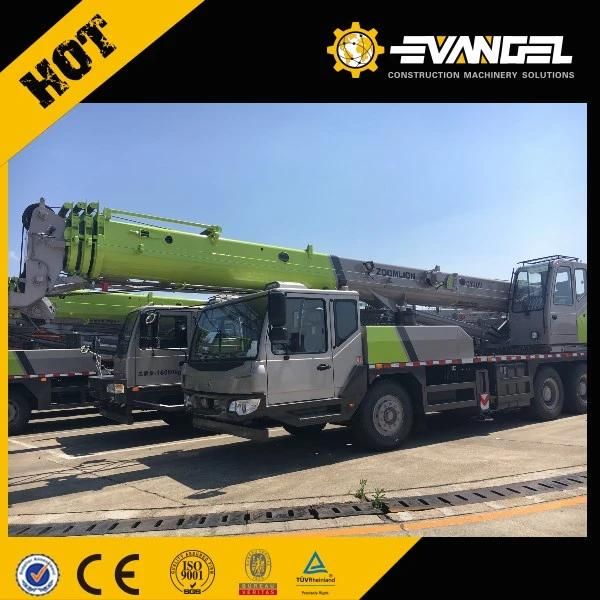

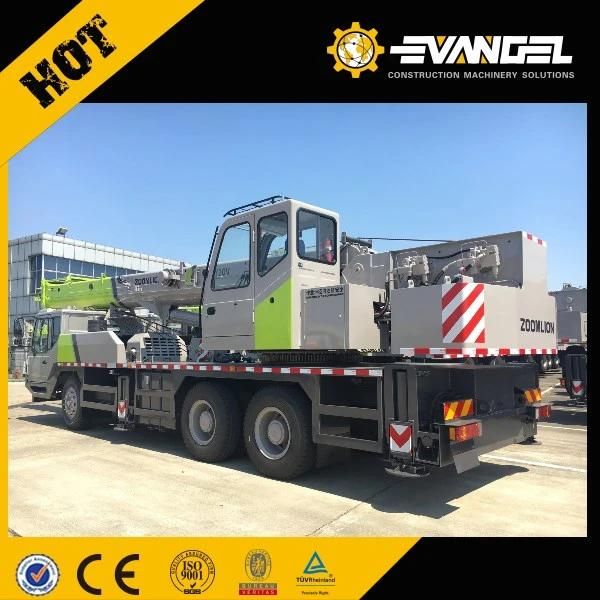

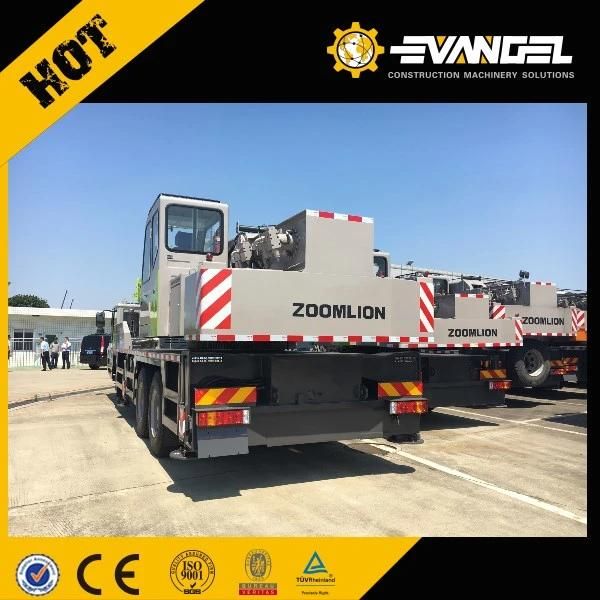

Zoomlion 90 Ton Truck Crane QY90V533
Evangel Industrial (Shanghai) Co., Ltd.- Certification:GS, RoHS, CE, ISO9001, ISO9001: 2000
- Condition:New
- Maximum Lifting Height:>40m
- Maximum Lifting Weight:>16t
- Shaft Number:3
- Crane Jib:Five-Arm
Base Info
- Model NO.:QY90V533
- Type:Straight Arm
- Zoomlion Brand:Euro III Engine
- Application:Construction Usage, Workshop Usage
- Moving Type:Orbital
- Power Source:Hydraulic
- Sling Type:Wire Rope
- Installation:Overall Rapid Disassembly
- Tower Crane Type:Under Slewing Cranes
- Main Girder Form:Double Girder
- Transport Package:Nude Package
- Specification:ISO
- Trademark:ZOOMLION
- Origin:China
- HS Code:8701200000
- Production Capacity:1, 000units,Month
Description
ItemSpecification Remarks Working performance Max. rated lifting capacity kg 90000
Max. lifting torque of basic boom kN.m 3240
Max. lifting torque of Max. length boom
kN.m 1800
Max. lifting height of basic boom m 13.4
Max. lifting height of boom m 48.5 The specifications do not include deflection of boom and jib. Max. lifting height of jibm 67 Working speeds Max. hoist rope speed (Main winch) m/min 122 Drum 4 th layer Max. hoist rope speed (Auxiliary winch)
m/min 68 Drum 2 nd layer Boom derricking times 72
Boom extending time s 146
Max. slewing speed r/min 1.9
Traveling specifications Max. traveling speed km/h 78
Max. gradeability% 43
Min. turning radius m 24
Min. ground clearancemm 290
Limit for exhaust pollutants and smoke Conform to related standards. GB3847-2005 GB17691 -2005
Conform to
GB3847-2005
GB17691-2005
(Stage III) Oil consumption per hundred kilometers
L 70
Weights Self weight in traveling condition kg 55000
Complete vehicle kerb masskg 54870
Axle load (Front) kg 19600
Axle load (Rear) kg 35400
Dimensions Overall dimensions(L×W×H)mm 14550×2750×3750
Longitudinal distance between outriggers
m 7.3
Transversal distance between outriggers
m 7.4
Boom lengthm 12.5~48
Boom angle ° -2~80
Jib lengthm 10.8 ,18.5
Offset° 0 , 30
Chassis Model ZLJ5550 Type II Engine Model WP12.430N Rated powerkW/r/min 316/1900 Max. torqueN.m/r/min 2060/1100~1400 Manufacturer Changsha Zoomlion Heavy Industrial Science & Technology Development Co., Ltd.
