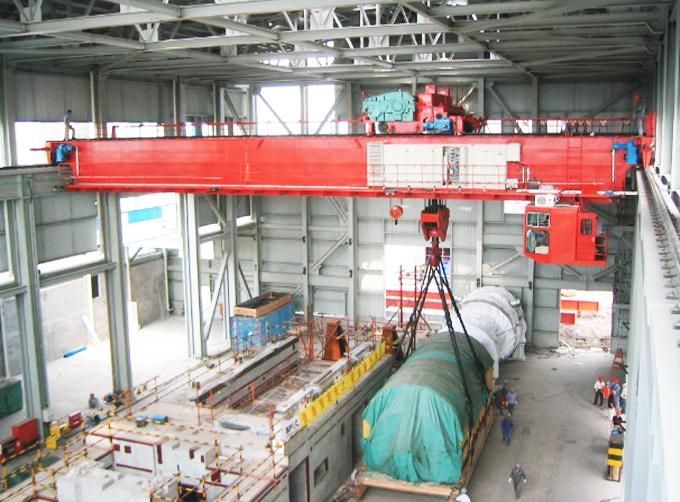

Factory Price Qd Type 32/5t Double Beam Overhead Crane
Henan Kuangshan Crane Co., Ltd.- Certification：CE, ISO9001: 2000, GOST
- Condition：New
- Operation Form：Air Operation+Ground Operation
- Maximum Lifting Height：25-30m
- Maximum Lifting Weight：40t-320t
- Main Girder Form：Double Girder
Base Info
- Model NO.：QD
- Type：Double Beam Crane
- Max. Lifting Load：320,80t
- Working Duty：A5~A6
- Crane Traveling Limited Switch：Include
- Weight Overload Protection Device：Include
- Motor：Ngp
- Power Source：380V~480V
- Installation：Assembled
- Transport Package：High Quality Plastic Woven Cloth!
- Specification：GB,T3695-2008
- Trademark：KUANGYUAN
- Origin：Xinxiang City, China
- HS Code：84261120
- Production Capacity：4000sets,Year
Description
ifting Capacity T5 10 16/3.2 20/5.0 25/5.0 32/5.0 50/10.0 Span M 10.5-31.5 Lifting height(M) Main Hook 16 16 16 12 12/11.0 16 12 Aux Hook 18 11 14/13 18 16 Speed(M/min) hoist Main hook A5 12.5 8.5 7.9 7.2 7.3 7.8 5.9 A6 15.5 13.3 13 9.7 9.8 9.5 7.8 Aux hook 14.5 12.7 12.7 19.5 13.2 Trolley traveling 37.2 43.8 44.6 44.6 37 42.4 38.5 Bridge traveling A5 89.8 /92.3 89.8-91.9 84.7-87.6 84.7/ 87.6 85.5/88 74.2-87.6 74.6 A6 116.2/ 117.4 112.5-116.8 112.5 112.5/ 101.4 112/ 101.4 86.8-101.4 87.3 Weight(Kg) Trolley A5 2126 3424 6227 6856 7185 10877 15425 A6 2224 3562 6427 7180 7856 11652 15765 Total Weight A5 12715-31405 14270-34405 19128-39428 19947-41497 20795-42796 26901-52748 35317-64880 A6 12991-31596 14719-34699 20045-41315 20984-44225 22632-16324 28061-55272 36075-67242 Max Wheel Load KN A5 74-125 102-160 141-205 163-231 185-255 237-327 333-450 A6 75-126 104-162 145-211 167-239 189-263 242-335 336-457 Rail recommended Trolley 15kg/m 43kg/m Bridge 43kg/m QU70 QU80 Power Source 380V 50HZ 3Phase or based on your request
Henan Mine Cranes meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
The 2,700-plus-member factory covers over 680,000 square meters and has a total asset of RMB 660 million. The 1,200-plus equipment enable the company to independently conduct over 20 technological flows, including lathing, milling, planning and grinding, The 180-plus intermediate and senor technical staff are responsible for R&D and production of all the products. The products have passed CE SGS TUV BV and CU-TR verification, and factory passed ISO9001-2008 international certification, IS014001:1996 environmental and ISO28001-2001 quality, health and safety certification. Our company has perfect quality-control system, strict and comprehensive management system, strong production capability and advanced test measures, guaranteeing high quality, output, competitiveness and market share.

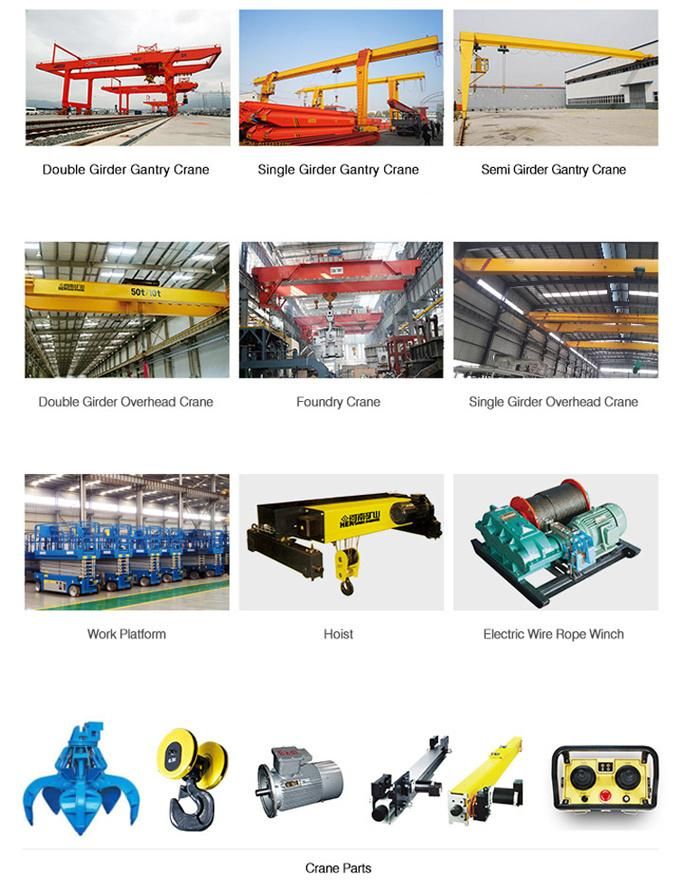

Main product showcase

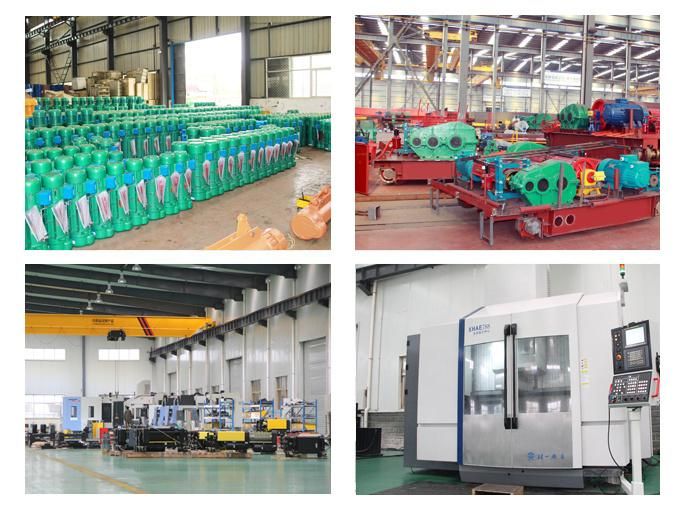

Processing Facility

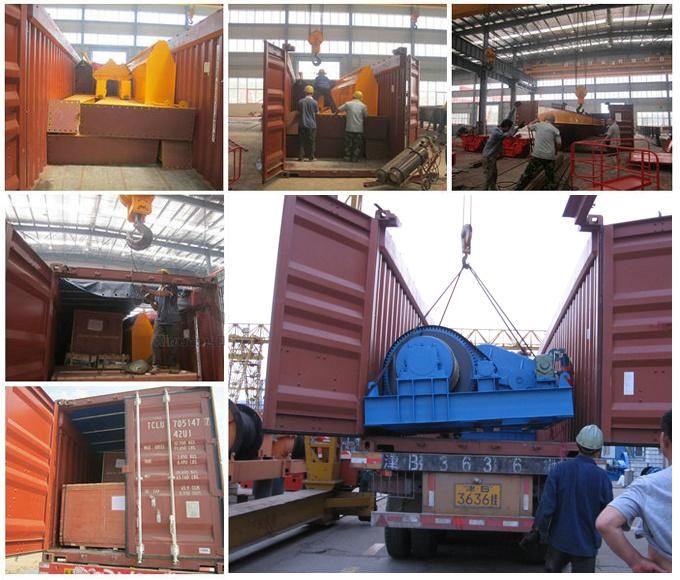

Packaging & shipment
Henan Mine Cranes meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
The 2,700-plus-member factory covers over 680,000 square meters and has a total asset of RMB 660 million. The 1,200-plus equipment enable the company to independently conduct over 20 technological flows, including lathing, milling, planning and grinding, The 180-plus intermediate and senor technical staff are responsible for R&D and production of all the products. The products have passed CE SGS TUV BV and CU-TR verification, and factory passed ISO9001-2008 international certification, IS014001:1996 environmental and ISO28001-2001 quality, health and safety certification. Our company has perfect quality-control system, strict and comprehensive management system, strong production capability and advanced test measures, guaranteeing high quality, output, competitiveness and market share.
Main product showcase
Processing Facility
Packaging & shipment
1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
