• Model NO.：QL
• GB/T 19001-2000 Idt ISO 9001: 2000：Pass
• GB/T 28001-2001, OHSAS18001: 1999：Pass
• Current Overload Protection System：Include
• Voltage Lower Protection Function：Include
• Working Duty：A5, A6, A7
• Weight Overload Protection Device：Include
• Limited Switch：Include
• Painting Color：According to Your Demand
• Sandblast：Could Supply
• Application：Steel Plant
• Sling Type：Wire Rope
• Power Source：Electric
• Moving Type：Wheel
• Installation：Overall Rapid Disassembly
• Transport Package：Packing by Woven Plastic Cloth and Plywood Crate.
• Specification：China National standard
• Trademark：KUANGYUAN
• Origin：Xinxiang, Henan Province
• HS Code：84261120
• Production Capacity：19, 000 Sets,Year

Overview

Product Description

It is special crane with electromagnetic disk, special used in metallury and mechanism factory load and unload metallic materials such as steel plate, scrap iron, and so on. Permanent Magnetic crane are the most ideal lifting facility for factories, docks, warehouses and transportation. The shape of electromagnet can be designed according to adsorptive goods.

It is an heavy duty crane with working grade A6~A7, cabin control, crane weight including electromagnetic disk dead weight.

Features: Lightly and ingeniously structured, easy for application, strong magnetic Attraction power and safe in handling

Note:
1. Entrance into drivers cabin including top, rear and end types.
2. When using of electro-magnet, revolving part screw of hooks must be tightened, not allowed to rotate.
3. Capacity including electro-magnet dead weight.
4. Crane whole weight excludes electro-magnet and its accessories weight.
5. The indicated electro-magnet listed in the table is for your reference, absorption weight of this model electro-magnet is the max absorption capability, customer could select according to actual use conditions.

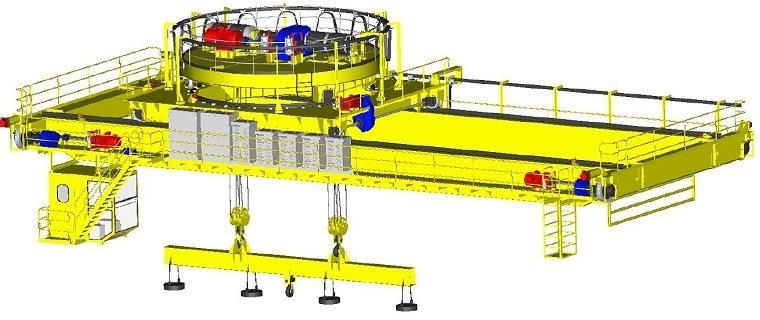

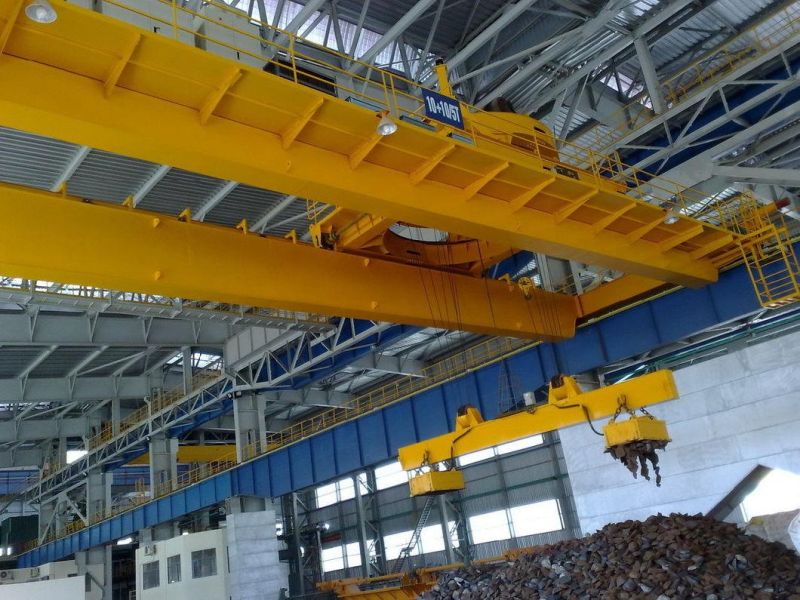

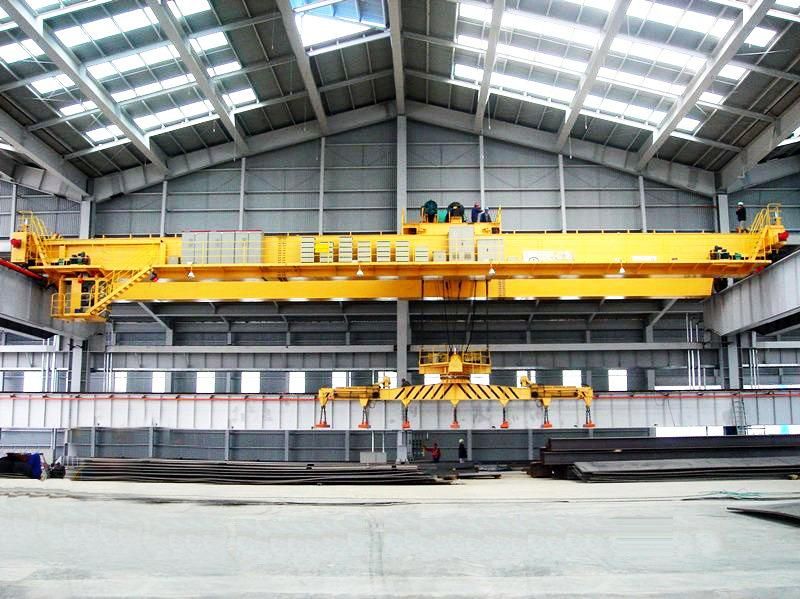

Detailed Photos

Product Parameters

CapacityT5, 10, 16, 20, 16/3.2, 20/5, 32/5Spanm10.5, 13.5, 16.5, 19.5, 22.5, 25.5, 28.5, 31.5Lifting heightmMax. 28Operation method Pendent control/cabinSpeedLifting m/minsingle or VVVFCross travelm/minsingle or VVVFLong travelCabinm/minsingle or VVVFLifting mechanismtypeElectric trolleyWorking duty A6Power supplyAC380V/50HZ/3P(By your demand)

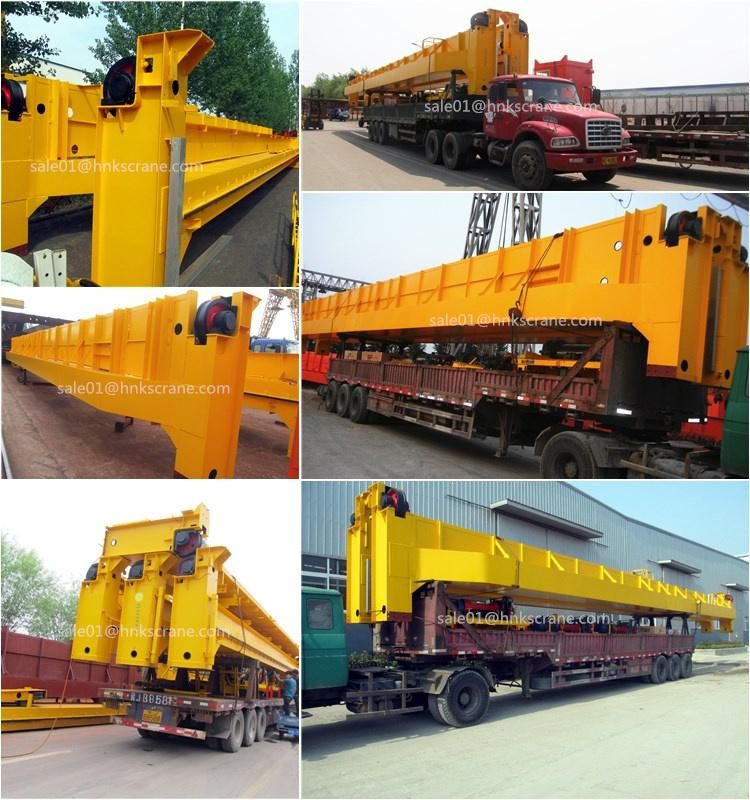

Packaging & Shipping
