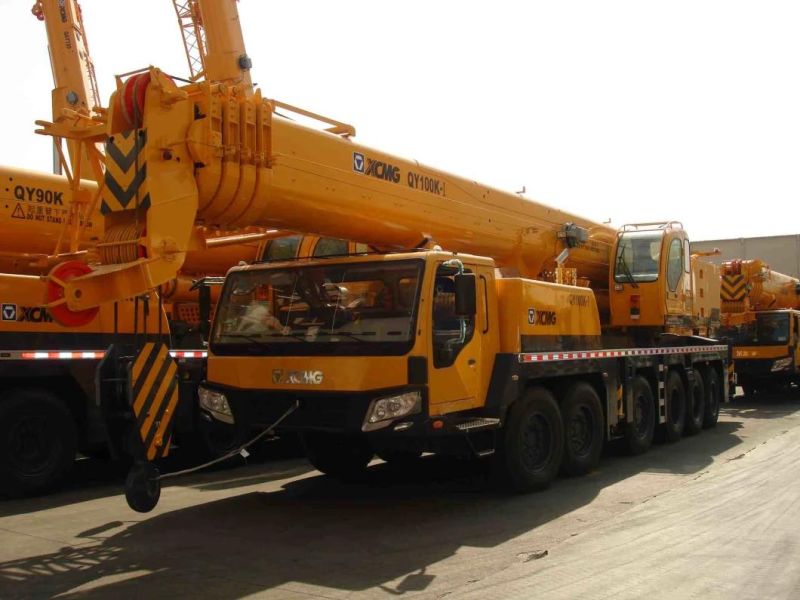

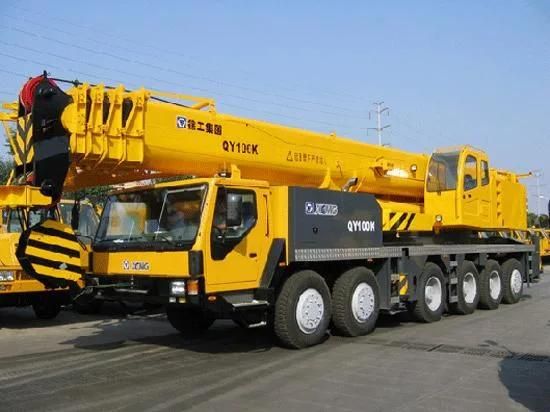

100 Ton Hydraulic Mobile Telescopic Boom Truck Crane Qy100K-I
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service:Online Video Support
- Warranty:One Year
- Certification:CE, ISO9001: 2000
- Condition:New
- Maximum Lifting Height:>40m
- Maximum Lifting Weight:>16t
Base Info
- Model NO.:QY100K-I
- Shaft Number:6
- Crane Jib:Five-Arm
- Type:Double Beam Crane
- Application:Construction Usage
- Color:Yellow
- Max Speed:80km,H
- Min Ground Clearance:310mm
- Fully Extended Boom+ Jib:70.4m
- Fully Extended Boom:50.9m
- Full Extension:160s
- Transport Package:N,P
- Specification:Euro III
- Trademark:EVANGEL
- Origin:Jiangsu, China
- HS Code:8426990000
- Production Capacity:30 Sets in One Month
Description
Main performanceMax. rated total lifting capacity m 100 Min. rated working radius 3 Turning radius at turntable tail Counterweight mm 4200 Aux. winch mm 4590 Max. lifting torque 3450 Base boom kN.m 3450(4m×88t) Fully extended boom kN.m 1950(24m×7.1t) Fully extended boom+ jib kN.m 1230(19.2m×6t) Outrigger span (full extension) Longitudinal m 7.56 Lateral m 7.6 Lifting height Base boom m 13.5 Fully extended boom m 50.9 Fully extended boom+ jib m 70.4 Boom length m 13.5 Fully extended boom m 51 Fully extended boom+ jib m 51+18.1+4 Working speed Jib setting angle ° 0,15,30 Boom luffing time s 75 Boom Boom telescoping time Full extension s 160 Max. swing speed r/min 2 Outrigger extension/retraction time Outrigger beam in extension/retraction s 25/15 Outrigger jack in extension/retraction s 45/25 Lifting speed (single rope, layer 4) Main winch m/min 105 Aux. winch m/min 104
