Box Type Single Girder Electric Hoist Gantry Crane

Henan Kuangshan Crane Co., Ltd.

Certification：CE, GOST
Condition：New
Operation Form：Ground Operation
Maximum Lifting Height：10-15m
Maximum Lifting Weight：<20t
Type：Construction

Base Info

Model NO.：MH
Girder：Single
Girder Type：Box Type
Working Grade：A3
ISO 9001: 2008：Passed
ISO 14001: 2004：Passed
Limited Switch：Included
OHSAS 18001: 1999：Passed
Electric System：Siemens,Schneider
Capacity：3~20tons
Span：10.5-21.5m
Lifting Height：6~12m
Control：Pendent Control, Remote Control
Working Voltage：380V50Hz3phac or Customized
Ce：Passed
GOST：Passed
Transport Package：Plastic Woven Cloth,Polywood Case
Specification：3t-20t
Trademark：Kuangyuan
Origin：Henan, China
HS Code：84261930
Production Capacity：9000sets Per Year

Description

CapacityT35101620Spanm12, 16, 20, 24, 30Lifting heightm6, 9Operation method Pendent line with push button/ cabinSpeedLifting m/min8, 8/0.88, 8/0.87, 7/0.73.53.5Cross travelm/min2020202020Long travelGround m/min2020202020Cabinm/min30, 4030, 4030, 4030, 4030, 40Electric hoisttypeCD1/MD1Working duty A3Power supplyAC380V/50HZ/3P

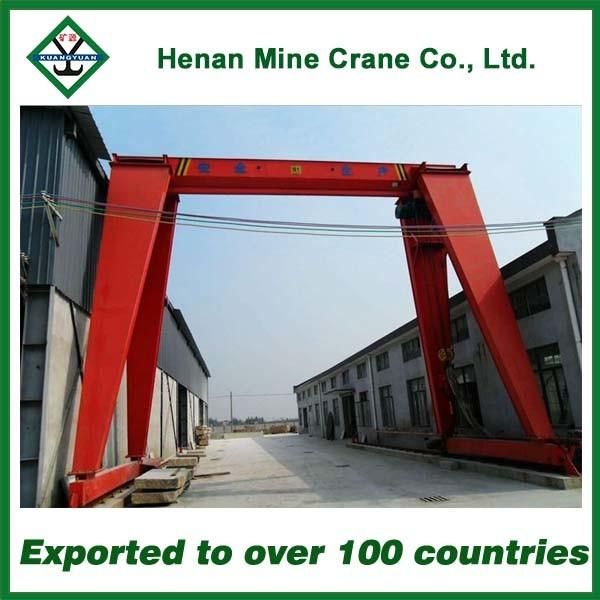

Box Type Single Girder Electric Hoist Gantry Crane

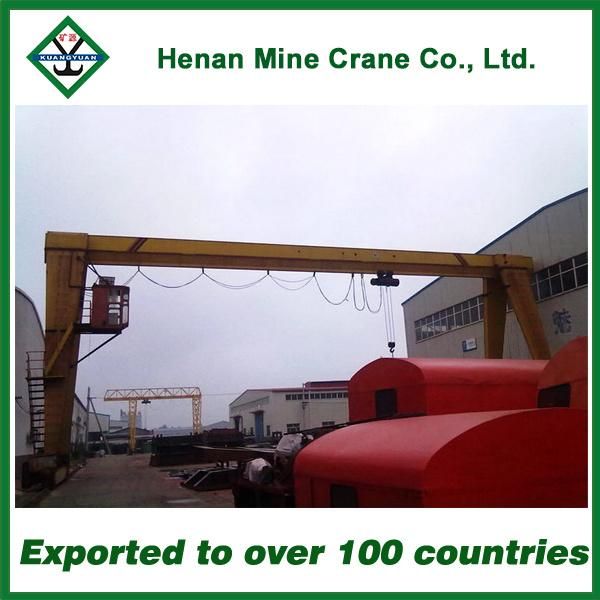

Box Type Single Girder Electric Hoist Gantry Crane

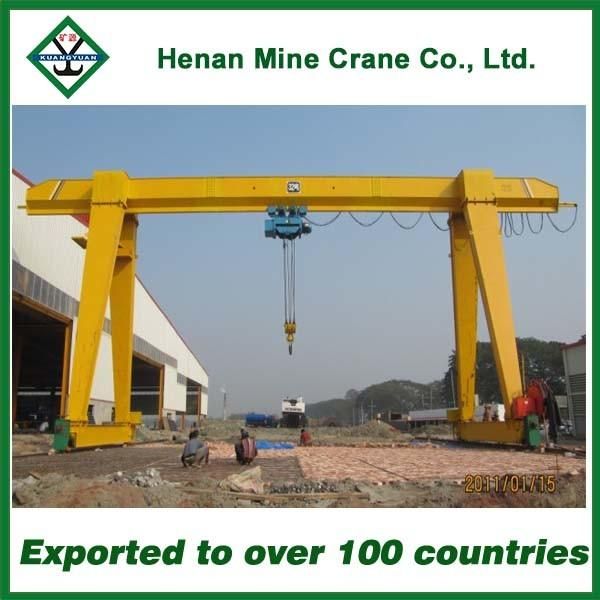

Box Type Single Girder Electric Hoist Gantry Crane

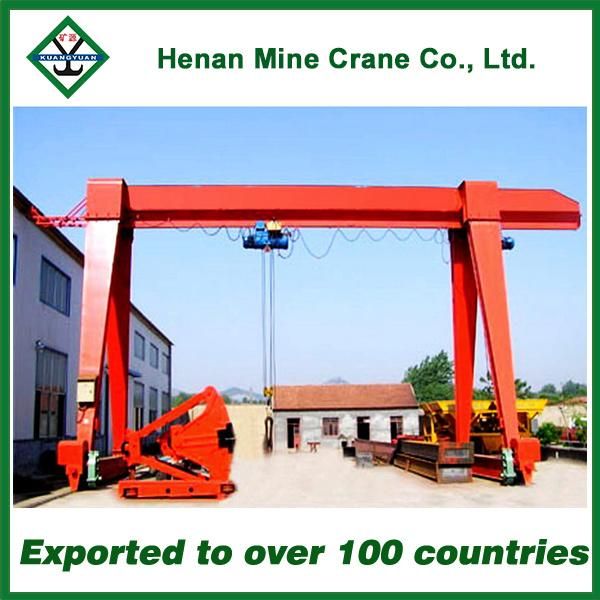

Box Type Single Girder Electric Hoist Gantry Crane

Box Type Single Girder Electric Hoist Gantry Crane
