• Model NO.：QD
• Maximum Lifting Weight：20-50t
• Main Girder Form：Double Girder
• Type：Ordinary
• Application：Workshop, Warehouse and Yard
• Working Duty：A5, A6
• Weight Overload Protection Device：Include
• Voltage Lower Protection Function：Include
• GB/T 24001-2004 Idt ISO14001: 2004：Pass
• Sandblast：Could Supply
• GB/T 19001-2000 Idt ISO 9001: 2000：Pass
• Limited Switch：Include
• Painting Color：According to Your Demand
• Current Overload Protection System：Include
• GB/T 28001-2001, OHSAS18001: 1999：Pass
• Sling Type：Wire Rope
• Power Source：Electric
• Moving Type：Wheel
• Installation：Overall Rapid Disassembly
• Transport Package：Packed by Plywood Crate and Plastic Woven Cloth.
• Specification：A5 A6
• Trademark：KUANGYUAN
• Origin：Xinxiang, Henan Province
• HS Code：84261930
• Production Capacity：6000 Sets,Year

Overview

Product Description

Double beam overhead crane is composed of bridge frame, trolley, cart operating mechanism and electric equipment. It has such features as tight dimension, low building headroom, light dead weight and light wheel load. It is applicable to transfer, assembly, check and repair as well as load and unload at mechanic processing workshop, subsidiary workshop of metallurgical mills, warehouses, goods yard and power station, etc.

Our company manufactures all kinds of double beam overhead crane with a lifting capacity of 5~550/100t and span of 10.5~31.5m. It is prohibited to use the equipment in the combustible, explosive or corrosives environment. According different environments and purposes, this crane can drive many models such as low speed, explosion-proof, insulation, electromagnetic, bucket grab, double trolleys, dual purposes, and triplicate purposes. It is operated in driver's cabin, which has open type and closed type and can be installed on left or right side according to practical situation. The direction of entering the gate has two forms, sideway and ends in order to satisfy the user's choice under different conditions.

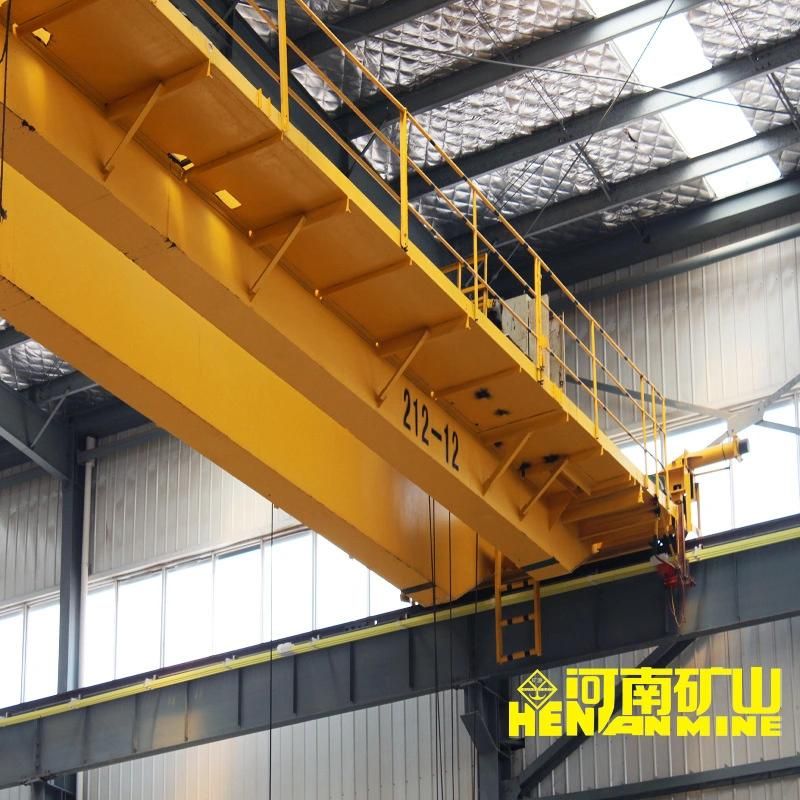

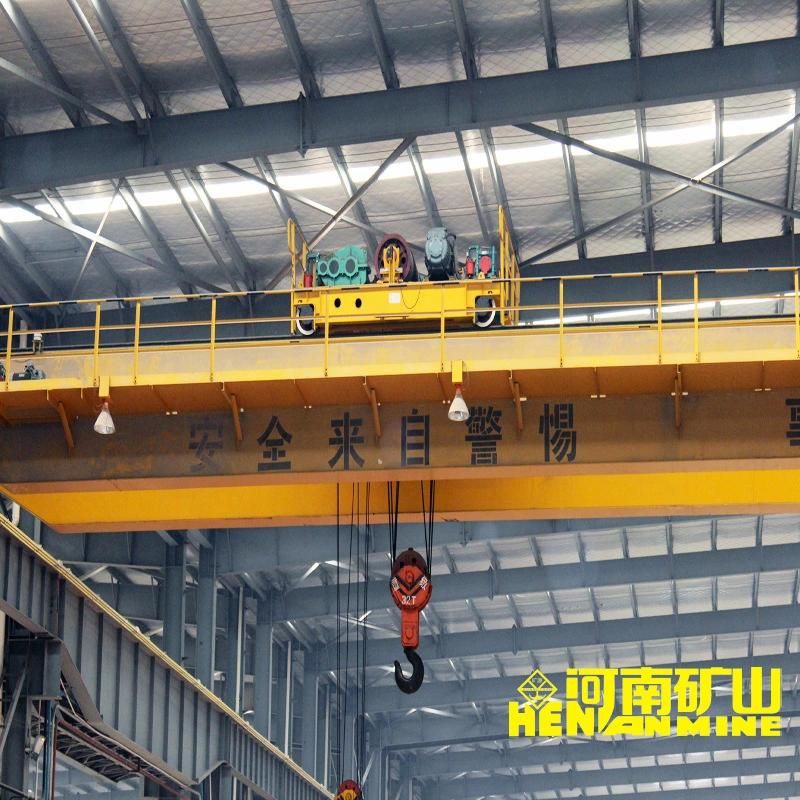

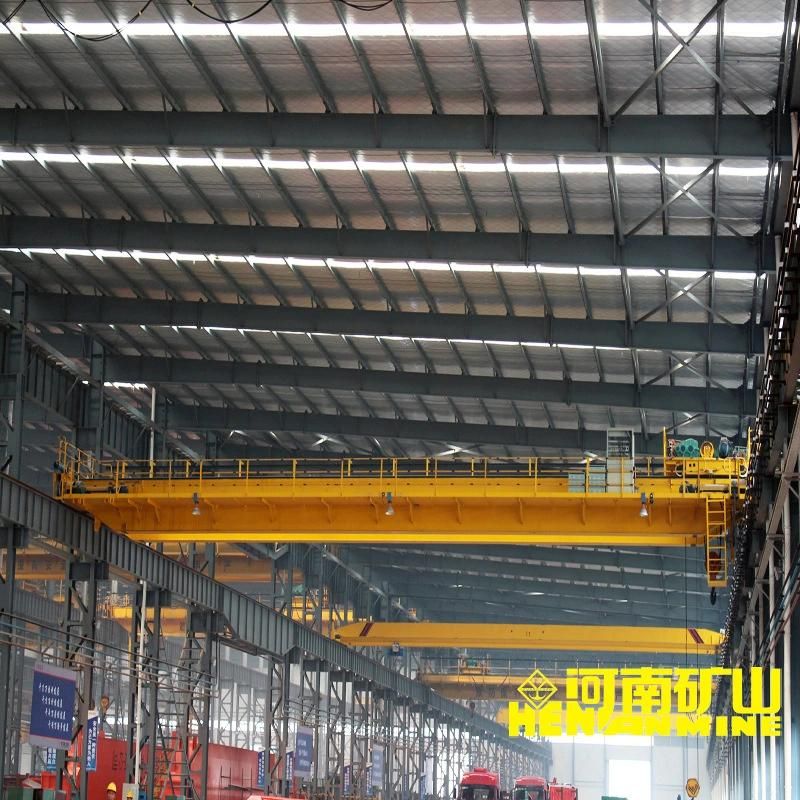

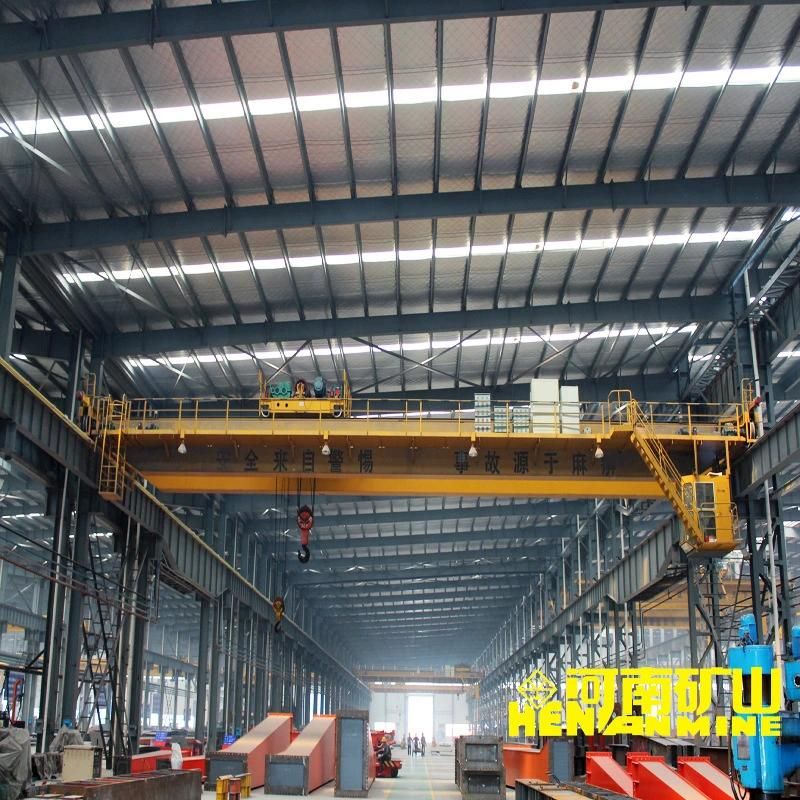

Detailed Photos

Product Parameters

CapacityT1016/320/532/550/10Operational method Cabin control Mainhook LiftingA5
m/min8.57.97.27.55.9A613.31312.39.57.8Aux. hook Lifting 16.719.519.513.2Cross travelling43.844.644.642.438.5Long travellingA5 90.7/91.9/84.784.7/87.684.7/87.687/74.274.6/85.9A6115.6/116.8/112.5112.5/101.4112.5/101.4101.4/101.886.8/87.3MotorLiftingMainA5Type /kwYZR180L-6/17YZR225M-8/26YZR225M-8/26YZR280S-10/42YZR280M-10/55A6 YZR250M1-6/37YZR225M2-6/45YZR280M-8/55YZR315S-8/75AuxiliaryYZR200L-6/22YZR180L-8/13YZR180L-6/17YZR180L-6/17YZR200L-6/26Cross travellingYZR132, 1-6/2× 6.3YZR132M2-6/4YZR132M2-6/4YZR160M-6/6.3YZR160M2-6/8.5Long travellingA5YZR132M2-6/2× 4YZR160M1-6/2× 6.3YZR160M1-6/2× 6.3YZR160M2-6/2× 8.5YZR160L-6/13A6YZR160M1-6/2× 5.5YZR160M2-6/2× 7.5YZR160M2-6/2× 7.5YZR160L-6/2× 11YZR180L-8/13Max. Lifting heightMain hookm1616121612Aux. hook 18141816Working duty A5, A6Power supply By your demandSpanm10.5-31.5Recommend rail 43kg/m43kg/m or QU70QU80QU70QU80

Packaging & Shipping

Company Profile

Our Advantages

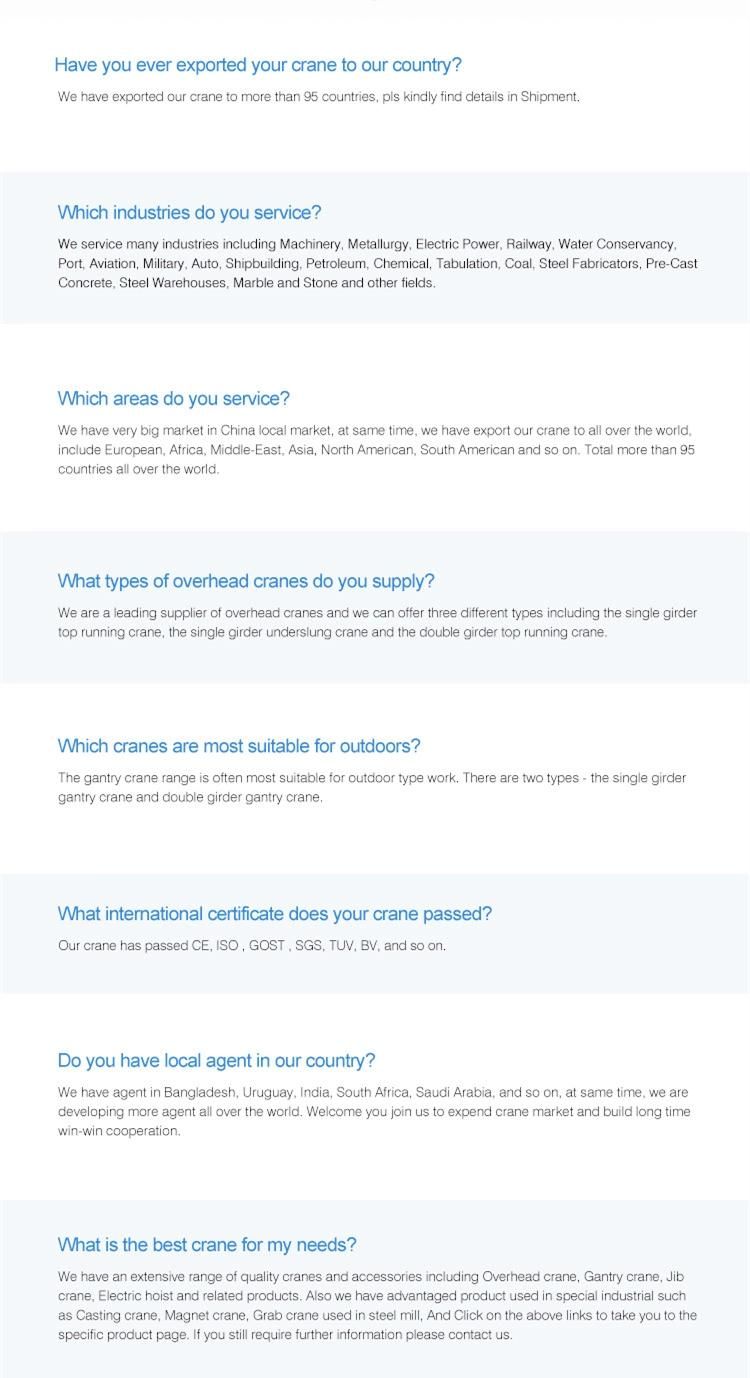

FAQ
